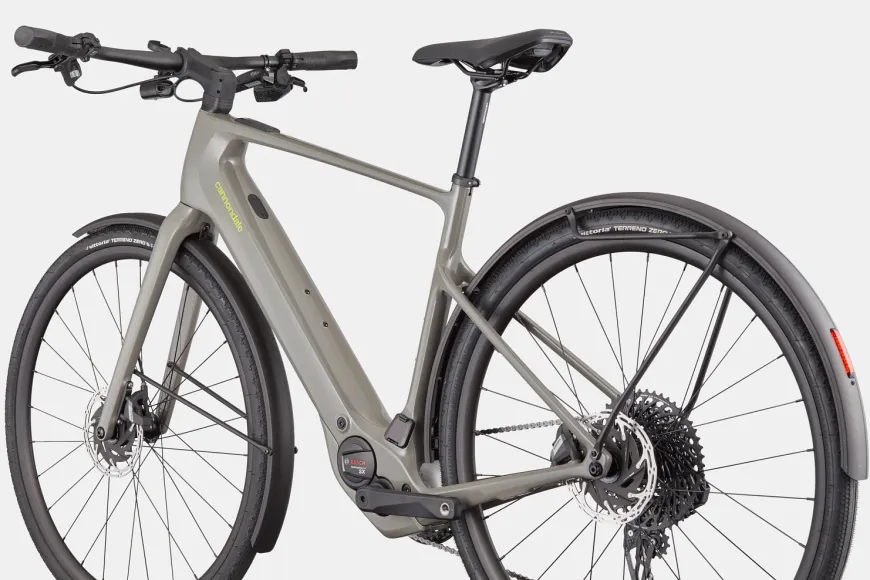

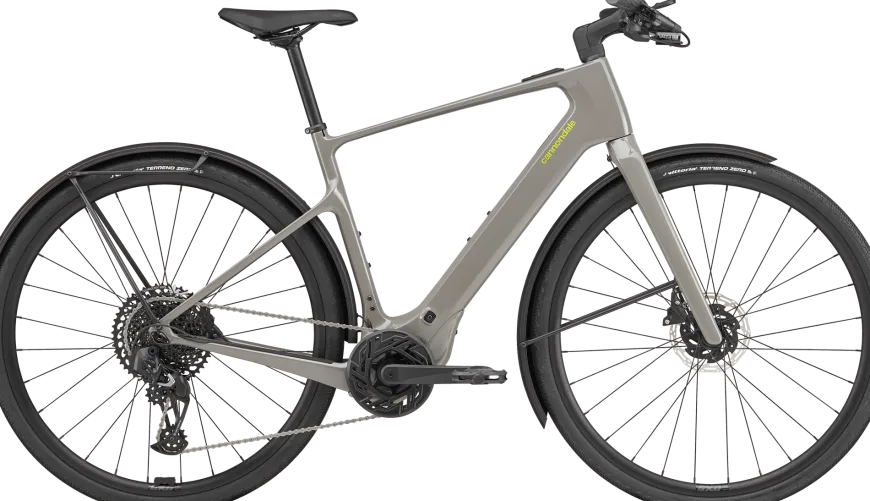

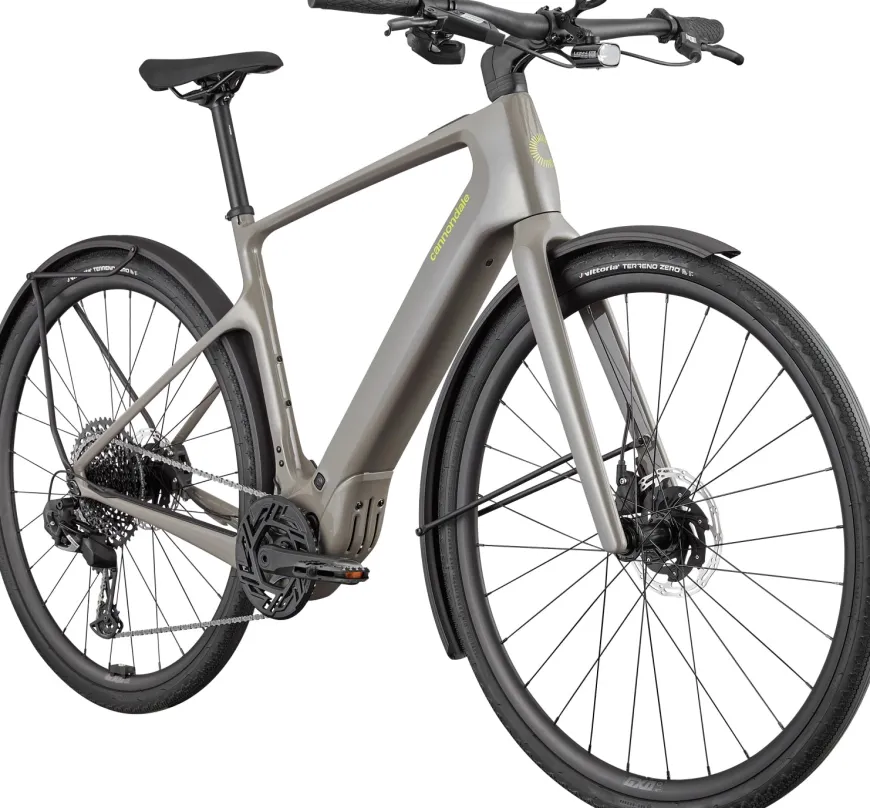

Tesoro Carbon 1

E-System

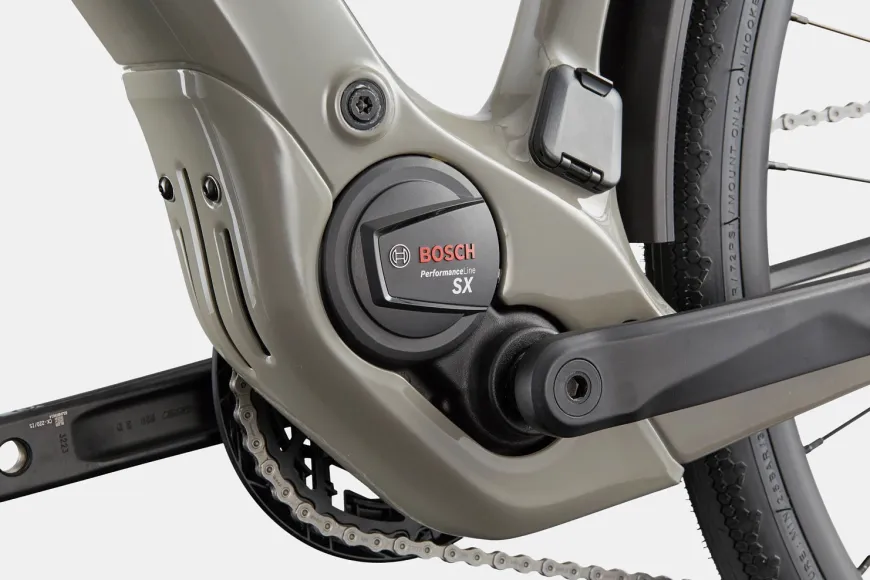

• Drive Unit: Bosch Performance Line Sprint, 28mph (Class 3)
• Battery: Bosch Compact Powertube 400Wh
• Display: Top-tube System Controller w/ mini remote
• Charger: Bosch 2A
• Certification: UL 2849

Frameset

• Frame: Tesoro Carbon, internal downtube battery, integrated cable routing, 148mm dropout, 12mm thru-axle, SAVE, flat mount disc
• Fork: Tesoro Carbon, 1-1/8″ to 1.5″ Delta steerer, internal routing, 12x110mm thru-axle
• Headset: Integrated, 1-1/8″ – 1.5″

Drivetrain

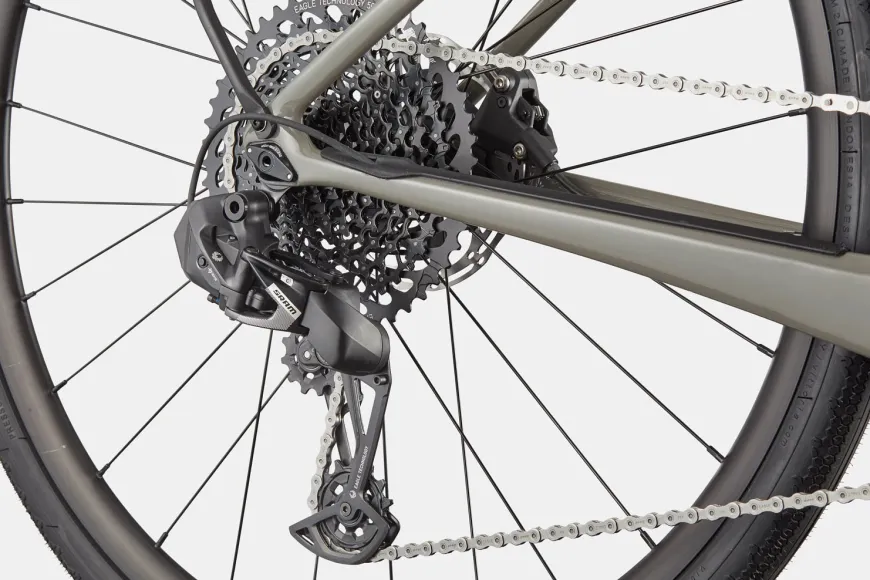

• Rear Derailleur: SRAM X1 Eagle AXS, wireless electronic
• Shifters: SRAM GX Eagle AXS Controller, wireless
• Chain: SRAM NX Eagle, 12-speed
• Crank: FSA Bosch E-Bike, SRAM Direct Mount, 38T
• Rear Cogs: SRAM Eagle X-GLIDE 1275, 10-50, 12-speed

Brakes

• Brakes: SRAM S-300 hydraulic disc, 160/160mm CenterLine X rotors
• Brake Levers: SRAM S-300 hydraulic disc

Wheels

• Rims: Cannondale GXD10, alloy double-wall, 28h
• Hubs: (F) Formula sealed cartridge, 12x110mm thru-axle / (R) Formula sealed cartridge, 12x148mm thru-axle
• Spokes: Stainless Steel, 14g
• Tires: Vittoria Terreno Zero, 700x35c
• Wheel Size: 700c

Components

• Handlebar: 6061 Alloy, 31.8mm, 700mm, 7° rise
• Stem: Cannondale C1 Conceal, Alloy, 31.8, +6°
• Grips: Ergo Lock-on Grips

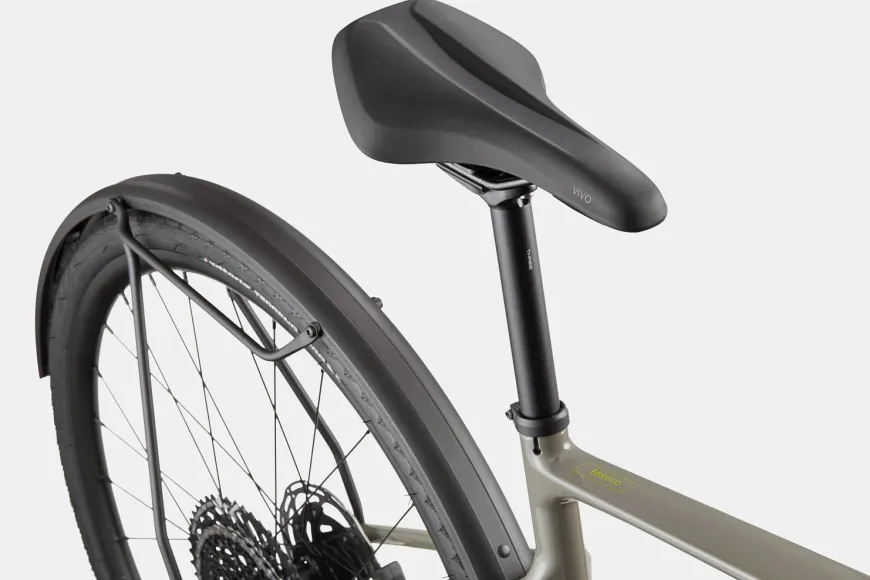

• Saddle: Selle Royal Vivo Active Ergo
• Seatpost: Cannondale 3, 6061 Alloy, 27.2x400mm

Details & Included Extras

• Model Name: Tesoro Carbon 1 (C66124U)
• Lighting: Lezyne Hecto E65 headlight, Integrated rear light
• Commuter Kit: Extruded alloy fenders, Rear pannier bars, Cannondale KSA40 Kickstand
• Electronics: SRAM AXS charger included
