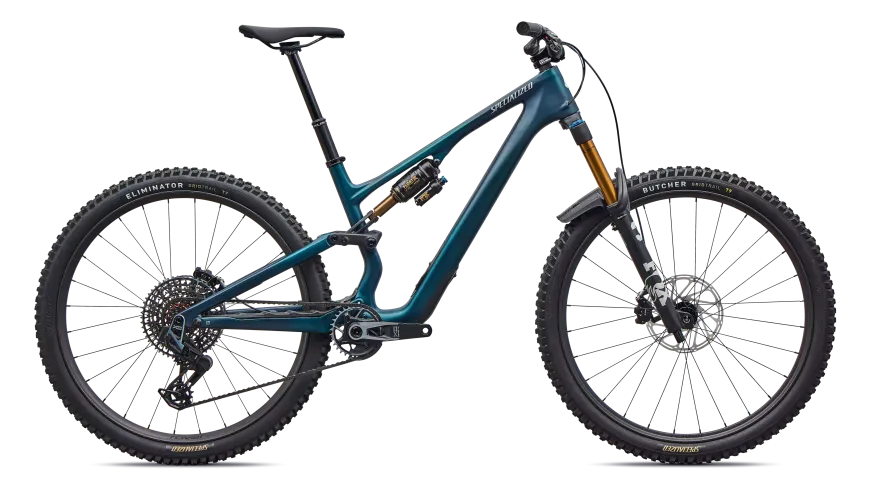

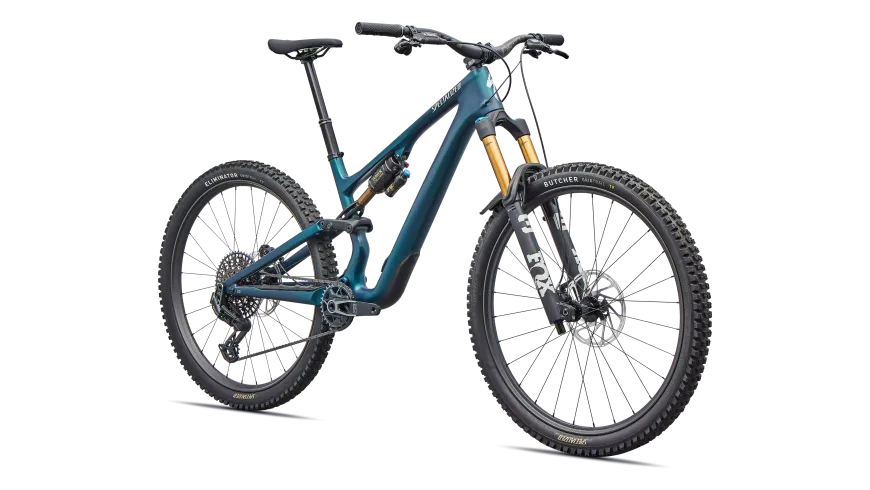

The Stumpjumper 15 EVO redefines trail riding by eliminating compromises. It handles big bumps with ease while delivering the control, agility, and efficiency of a short-travel bike. Plus, it offers extensive customization options to tailor the ride precisely to your unique preferences.
BREAKTHROUGH CAPABILITY: GENIE Shock Technology combines a poppy, playful ride with a bottomless DH feel.
ULTIMATE CONTROL: Measurably better traction than “Bike of the Year” Stumpjumper EVO.
UNMATCHED PERSONALIZATION: Six-way geometry adjustment, mixed wheel or 29”, tunable spring curve, and more.
GENIE—The Magic Carpet Ride: The biggest innovation on the Stumpjumper 15 is GENIE. This patent-pending air spring technology that we invented grants every trail rider’s three wishes: the feel and control of a coil spring, better bottom-out prevention than a standard air spring, and a tunable “platform” for a playful feel.
ILLUMINATING GENIE: GENIE combines the control-enhancing linear spring rate of a coil spring through the “bump zone” with the progressive spring rate of an air spring at the end of the stroke to avoid bottom-outs. Truly, it’s the best of both worlds – coil and air – with extra tunability. Say goodbye to compromises and hello to the future of riding.
WHAT BUMP?: With 16.3% better bump force management than a traditional air-sprung shock, GENIE makes the Stumpy 15 ride like a bike with more travel. For example, the Stumpjumper 15 (with 145 mm rear wheel travel) and our Enduro (170 mm travel) both use 101 mm of travel to absorb a 1080 N bump force.
TRACTION GALORE: Extensive field testing proves that Stumpjumper 15 with GENIE delivers 57% better traction than a standard air-sprung shock because GENIE technology gives you supple, coil-like performance, which keeps the wheel in contact with the ground a greater percent of the time than a typical air spring would.
BYE, BYE, BOTTOM-OUTS: 39% fewer bottom-outs than a standard air spring. During big hit events, you benefit from the rising rate in the last 30% of the GENIE stroke. Because of this two-stage, pronounced rising rate, GENIE reduces the frequency and severity of bottom-outs.
HONED GEOMETRY: This bike’s geometry delivers big bike capability when you need it, a nimble feel in tight sections, and lively, efficient climbing manners. The generous cockpit centers you on the bike, optimizing traction and corner control. The low bottom bracket, slack head tube angle, and optimized fork offset keep things stable in the rough.
RIDE YOUR WAY: The Stumpjumper 15 seamlessly integrates benchmark geo adjustability, making it the most personalizable trail bike ever. Six distinct geometry settings allow you to hone performance for any style, any terrain. Head angle and bottom bracket height can be fine-tuned for stability or clearance.
WHEEL CHOICE: With our aftermarket shock links, you can choose between big wheels front and rear or mix things up with a 27.5” rear for a more responsive and playful ride. No matter what you choose, geometry is unaffected.
CARRY IT ALL: SWAT 4.0 on Stumpjumper 15 elevates downtube storage, an innovation we pioneered. It’s the smoothest operating, most weather-resistant, flush-mounted system ever.
MORE RELENTLESS THAN YOU: Our full suspension bikes are built to be relentless, designed to endure years of hard riding and backed by the best support and policies to keep you on the trail. Our unbeatable lifetime, no-questions-asked replacement of suspension pivot bearings to the original owner is just one way we’ve got you covered.
- Lightweight FACT 11m carbon chassis and rear-end
- Super-light and durable Roval Traverse SL II wheels, Industry Nine 1/1 hub

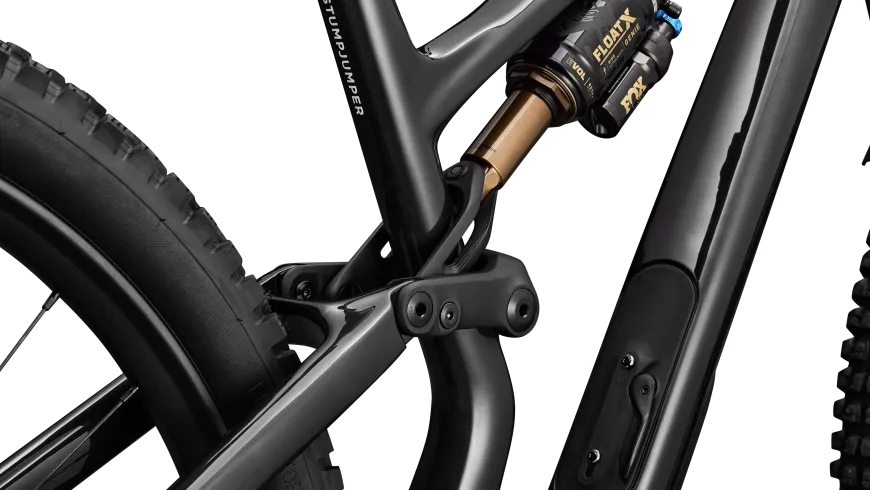

- Ride Dynamics tuned FOX FLOAT X Factory with Specialized GENIE Shock Tech. Highly adjustable 2-position open and firm mode with the 3-position open mode compression adjuster
- Supportive and tuneable FOX FLOAT 36 Factory fork with GRIP X2 damper
- Smooth and precise SRAM XO Eagle T-Type AXS drivetrain
- Big stopping power from SRAM Maven Silver, 4-piston brakes
- Slam your saddle with Bike Yoke Revive Max’s ultra-low stack dropper post
- Lifetime replacement of suspension pivot bearings to the original owner
- Compatible with electronic drivetrains only
Frameset
Seat Binder: Alloy, 38.6mm
Frame: FACT 11m carbon chassis and rear-end, Trail Geometry, SWAT™ Door integration, head tube angle adjustment, threaded BB, internal brake and dropper cable routing, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, 145mm travel
Suspension
Fork: FOX FLOAT 36 Factory, GRIP X2 damper, high/low speed rebound and compression adjustment, 15x110mm QR axle, 44mm offset. S1: 150mm travel. S2–S6: 160mm travel

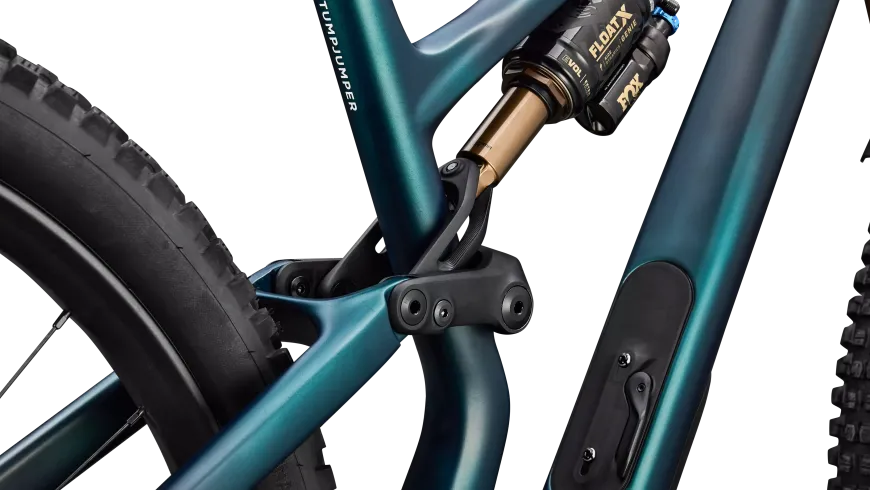

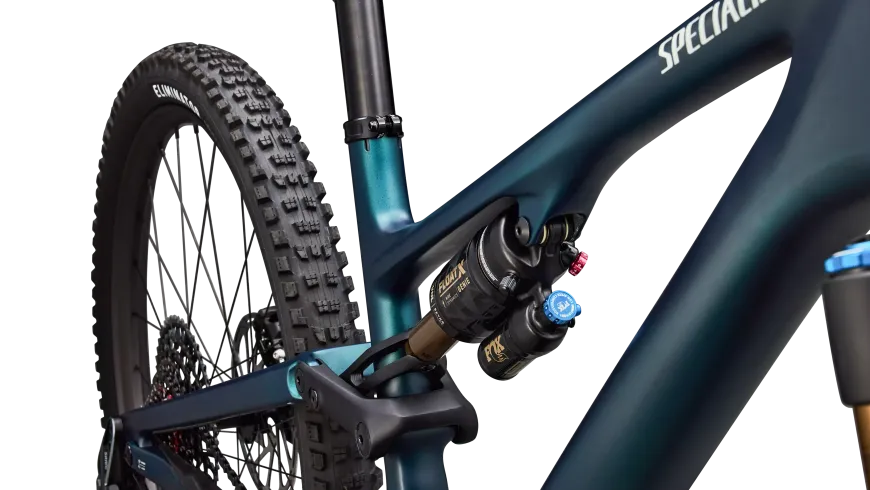

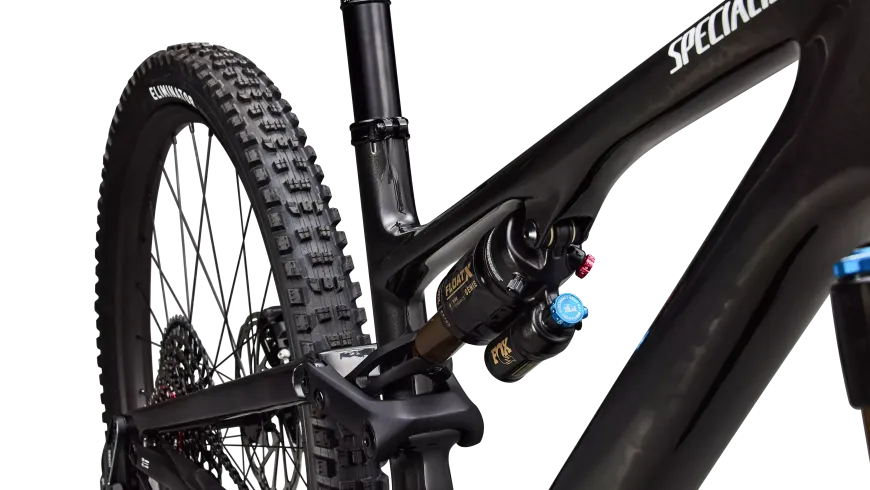

Rear Shock: FOX FLOAT X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever, LSC/LSR adjustment, 210x55mm
Brakes
Front: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm Centerline rotor
Rear: SRAM Maven Silver, 4-piston caliper, hydraulic disc. S1–S2: 180mm rotor. S3–S6: 200mm Centerline rotor
Drivetrain
Shift Levers: SRAM AXS POD Controller with discrete clamp
Bottom Bracket: SRAM DUB Threaded Wide
Chain: SRAM X0
Crankset: SRAM X0 Eagle, 32T ring, integrated guard, 55mm chainline. S1–S3: 165mm. S4–S6: 170mm
Rear Derailleur: SRAM X0 Eagle Transmission
Cassette: SRAM XS 1295, 12-speed, 10–52T
Wheels & Tires
Front Tire: Butcher GRID TRAIL casing, Gripton T9 compound, 29×2.4
Rear Tire: Eliminator GRID TRAIL casing, Gripton T7 compound, tubeless ready. S1–S2: 27.5×2.4. S3–S6: 29×2.4
Front Wheel: Roval Traverse SL II carbon rim, 30mm inner width, tubeless ready, 29″, Industry 9 1/1 hub, 15x110mm, 28h, Sapim D-Light spokes
Rear Wheel: Roval Traverse SL II carbon rim, 30mm inner width, tubeless ready, Industry 9 1/1 hub, 28h, Sapim D-Light spokes
Inner Tubes: Standard, Presta valve
Cockpit
Seatpost: Bike Yoke Revive Max 3.0, 34.9mm. S1: 125mm. S2: 160mm. S3–S4: 185mm. S5–S6: 213mm
Saddle: Bridge Expert with MIMIC, hollow Ti rails. S1–S2: 155mm width. S3–S6: 143mm width
Grips: Deity Lockjaw

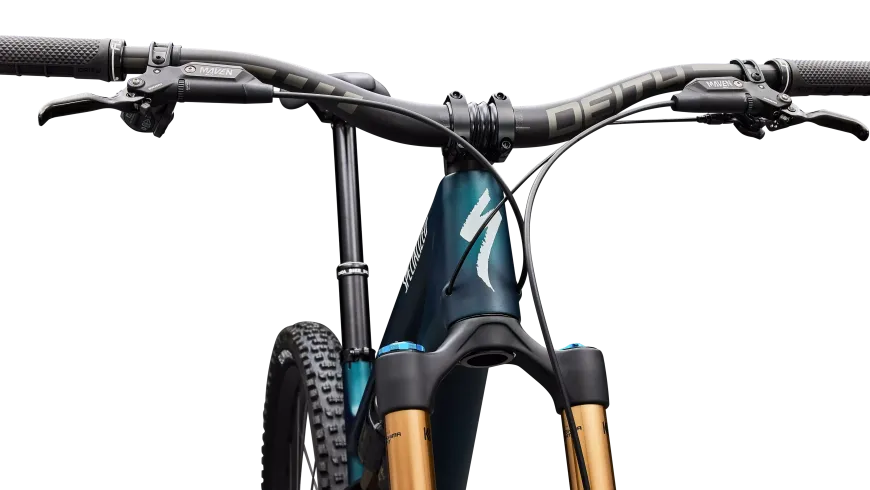

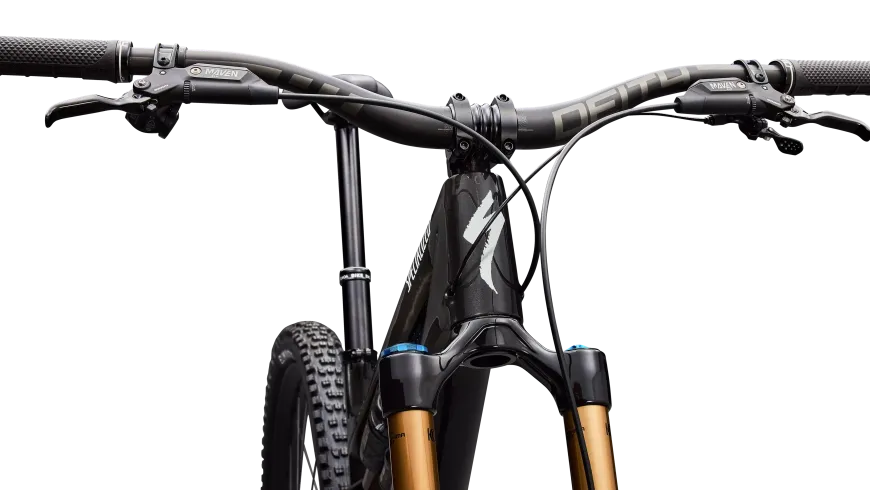

Handlebars: Deity Speedway Carbon, 5° upsweep, 9° backsweep. S1–S2: 810mm width, 30mm rise. S3–S6: 810mm width, 50mm rise
Stem: Deity, 35mm clamp, 42mm length
Product Details
Product ID: 221482
Weight: 14.05 kg (30 lb, 15.6 oz)
Weight Size: S4
