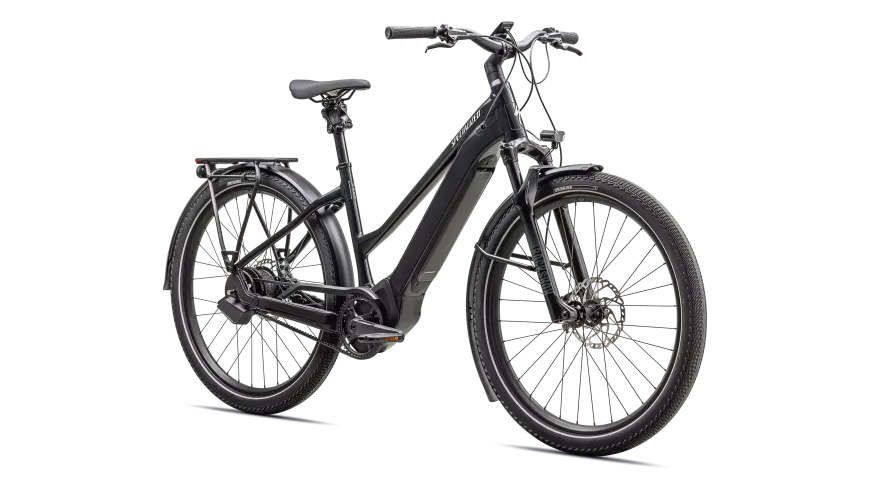

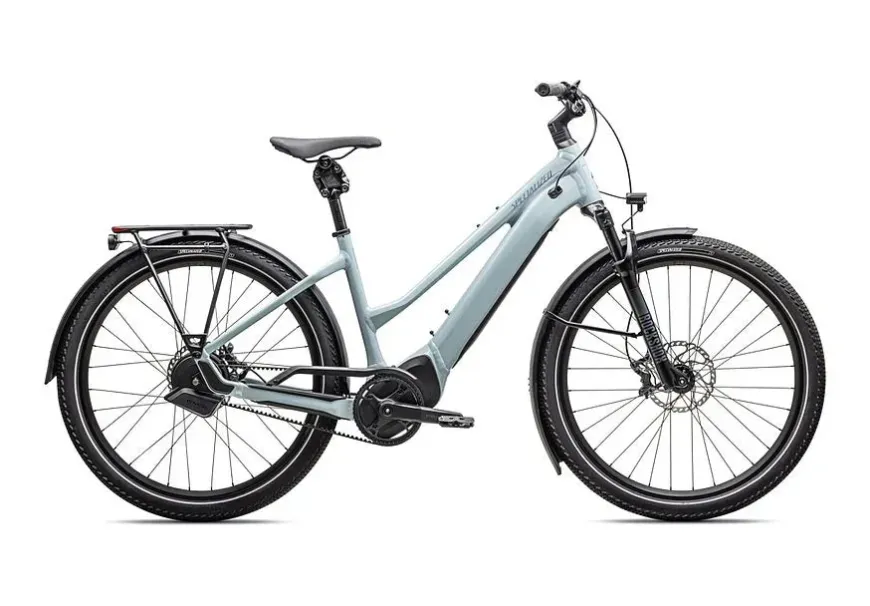

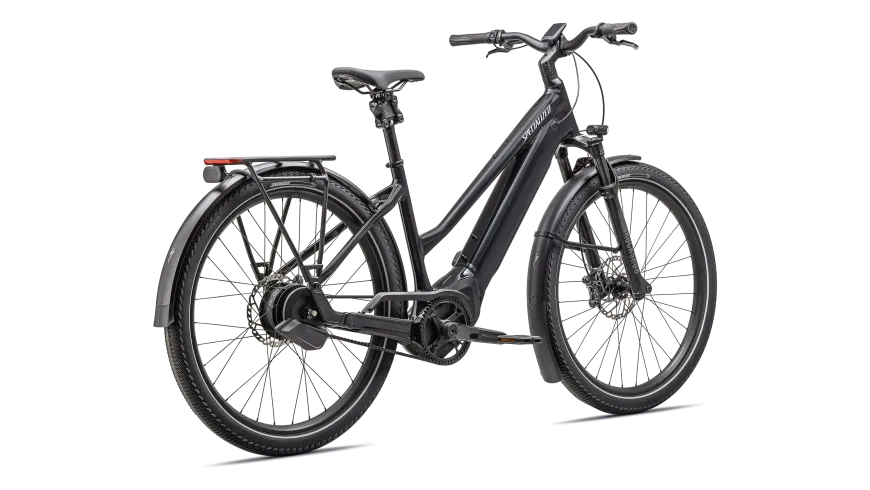

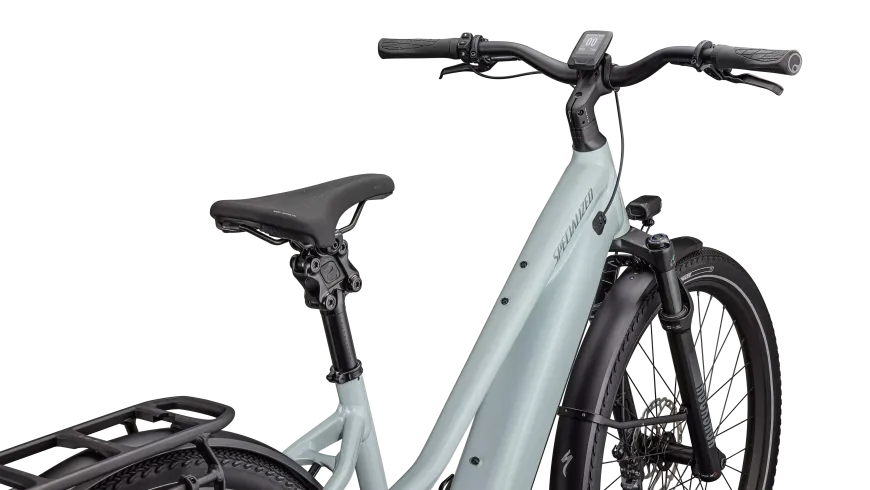

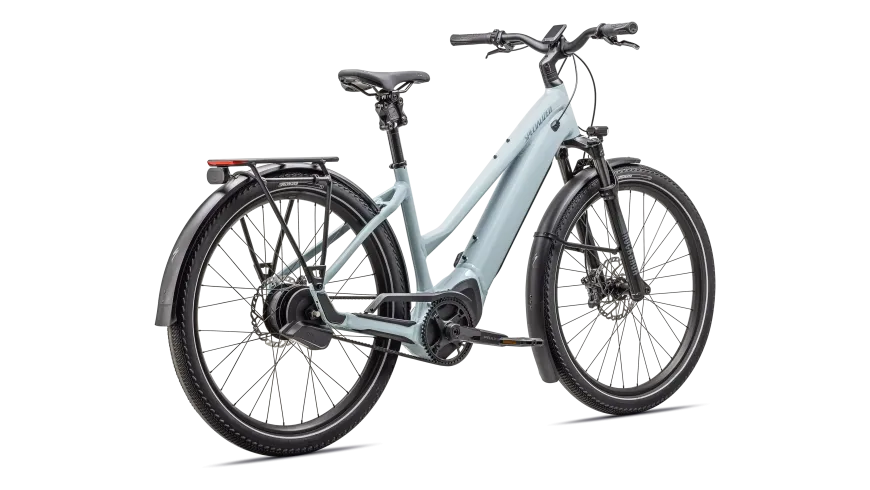

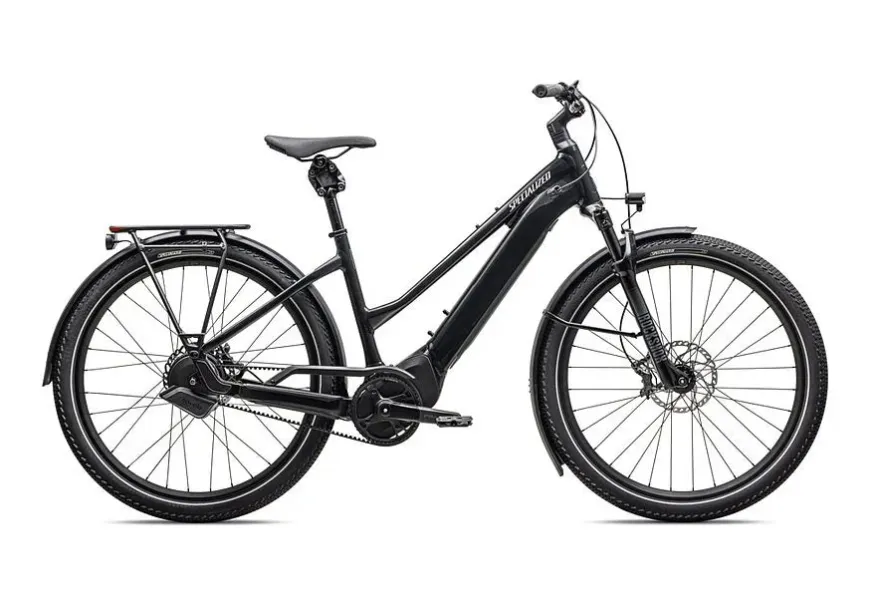

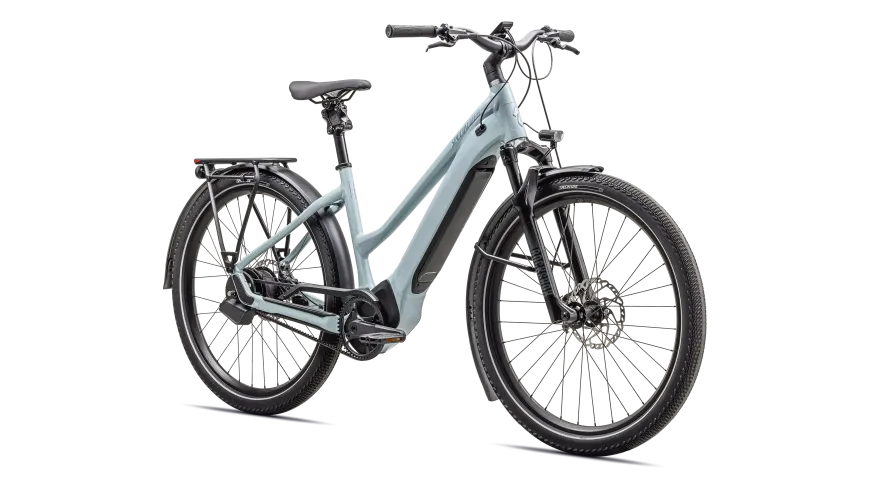

Vado 5.0 IGH Step Through UL Electric Bike (2025)

The Vado 5.0 IGH Step Through UL Electric Bike combines responsive power delivery with a refined riding experience for serious commuters and utility cyclists. Its internal hub gearing system provides smooth, maintenance-free shifting across varied terrain, while the step-through frame design offers accessibility without compromising structural integrity. With robust battery capacity and efficient motor performance, this e-bike handles loaded commutes and longer distances with consistent power output. The UL certification ensures safety compliance for daily transportation use. Built for riders who demand both performance and practicality, the Vado 5.0 delivers the speed and range needed to replace car trips while maintaining the reliability expected from premium electric transportation.

Engineered for e-powered transport, it offers a perfectly balanced ride with superior comfort and handling, establishing itself as a true leader in its class.

TURBO TECHNOLOGY: At the core lies an advanced, integrated electric system delivering an exceptional combination of power, a natural pedal feel, anti-theft features, training insights, and a comprehensive bike computer.

POWERFUL PERFORMANCE: Amplify your pedaling effort up to four times with the Turbo Full Power system, making climbs and long rides feel effortless and enjoyable.

COMFORT AND CONTROL: Optimized body positioning and handling provide unmatched comfort and confidence. Hydraulic disc brakes offer strong stopping power, while larger tires maximize traction for safe turning and braking.

SMOOTH RIDE: Equipped with an 80mm front suspension fork, higher volume tires, and a plush suspension seat post, it smooths out rough terrain to keep you comfortable on every journey.

SECURITY FEATURES: Integrated anti-theft technology lets you disable the motor with a button press, requiring connection to your phone or a personalized PIN to reactivate. The removable, lockable battery adds another layer of security, and a motion sensor alarm deters theft attempts.

Note: Motor support speed limits vary by region and local regulations, which may affect ride range.

• Equipped with DRYTECH fenders, bright LED front and rear lights, and a heavy-duty rear rack rated for up to 27kg, compatible with child bike seats and thru-axle trailers.
• Fully integrated, removable, and lockable downtube battery for easy charging and security.
• Integrated Garmin Radar sensor detects vehicles up to 140 meters behind you, providing visual, audible, and haptic alerts for enhanced safety.
• Long-range capability offers up to 62 miles (100 km) or 4.5 hours of ride time on a single charge in eco mode.
• MasterMind display and companion app deliver real-time ride data, support level tuning, range optimization, diagnostics, and advanced customization.
• Proven smooth efficiency through precision engineering and suspension systems that absorb even the smallest bumps for a comfortable ride.
• Enviolo AUTOMATiQ Internal Gear Hub offers stepless, automatic shifting based on your pedal cadence, allowing a “set it and forget it” riding experience for added safety and comfort.
• Turbo Full Power 2.2 motor paired with a 710Wh battery provides seamless, quiet power assistance up to 28 mph with intuitive response to your pedaling.
• Turbo System Lock feature lets you remotely disable the motor and activate an alarm via the app, ensuring your bike’s security when unattended.

E-Bike
Charger: Custom charger, 42V4A w/ Rosenberger plug, 100-240V
UI/Remote: MasterMind TCD, w/ handlebar remote, built-in anti-theft feature, Bluetooth® connectivity, customizable display pages

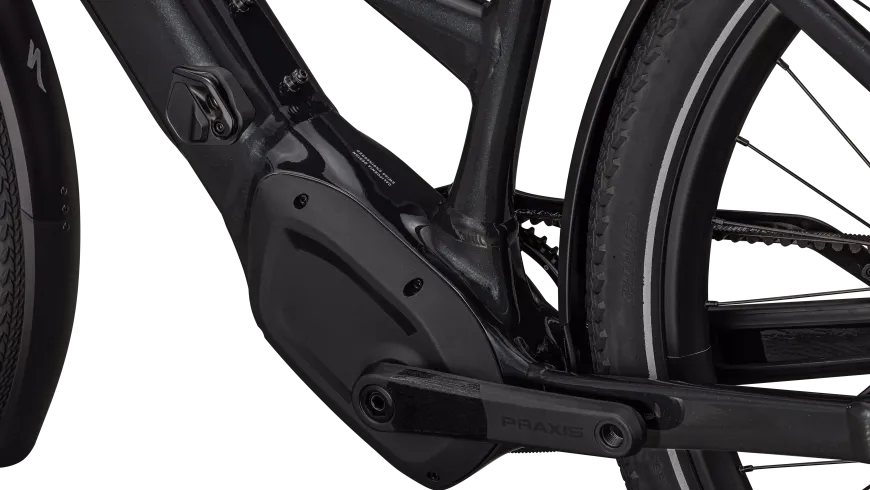

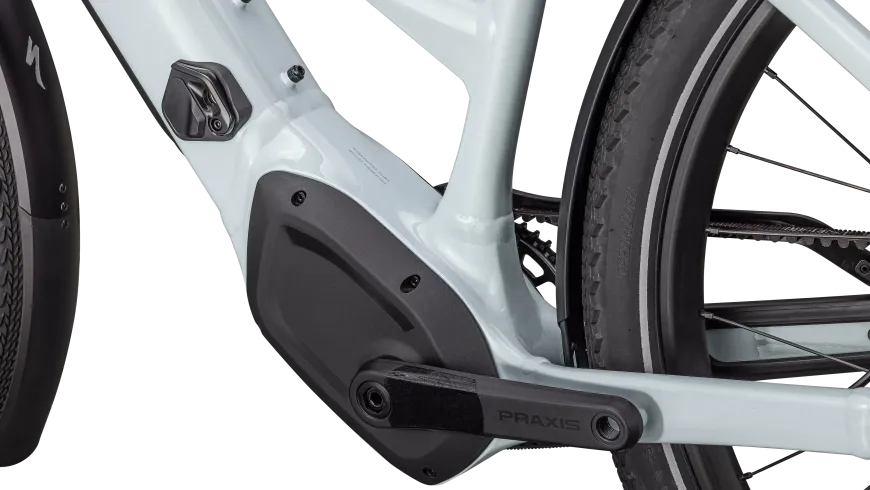

Motor: Specialized 2.2, 90Nm torque, custom tuned motor, 250W nominal
Battery: Specialized U2-710, integrated battery, state of charge display, 710Wh, UL certified

Frameset
Frame: E5 Aluminum, bottom bracket motor mount, fully integrated & lockable downtube battery, internal cable routing, lock and front rack mount, sliding dropout
Seat Binder: Specialized Alloy 34.9, Steel Bolt

Suspension
Fork: RockShox Recon Silver RL, 80mm travel, Motion-Control, fender mounts

Brakes
Front Brake: Shimano 4-piston, CUES BL-U8000, BR-U8020, SM-MA-F180P/P2
Rear Brake: Shimano 4-piston, CUES BL-U8000, BR-U8020

Drivetrain
Crankset: Custom alloy forged crankarms, 170mm
Chaincase: Custom chaincover
Rear Derailleur: Automatic Hub Interface, AHI-PRO-40T-OE-1, enviolo Netherlands, 17Nm, 40T spline compatible
Chain: Gates Carbon Drive CDX 122t belt, black
Cassette: Gates Carbon Drive CDX 22t sprocket, silver
Chainrings: Gates Carbon Drive CDX 50T chainring, black
Internal Gear Hub: enviolo AUTOMATiQ Pro shifting interface

Wheels & Tires
Rims: 650b disc, double-wall alloy, pinned, 32h
Spokes: DT Swiss Industry
Front Tire: Pathfinder Sport Reflect, 650Bx2.3
Rear Tire: Pathfinder Sport Reflect, 650Bx2.3
Front Hub: Specialized alloy, sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 32h
Rear Hub: enviolo Heavy Duty, 380% range, 6-bolt, 10x135mm, 32h
Inner Tubes: Standard 40mm SV 650Bx1.75-2.4

Cockpit
Saddle: Bridge Sport, Steel rails, 155mm
Seatpost: Cane Creek Thudbuster ST, 30.9mm
Grips: ERGON GA30-S Custom, 134.8mm length

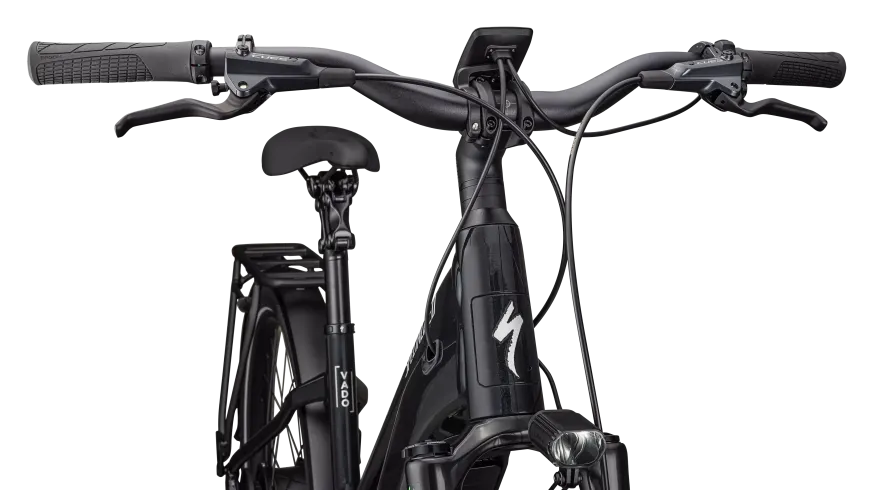

Stem: Specialized Flowset, 3D-forged alloy, 20° rise, 31.8mm clamp

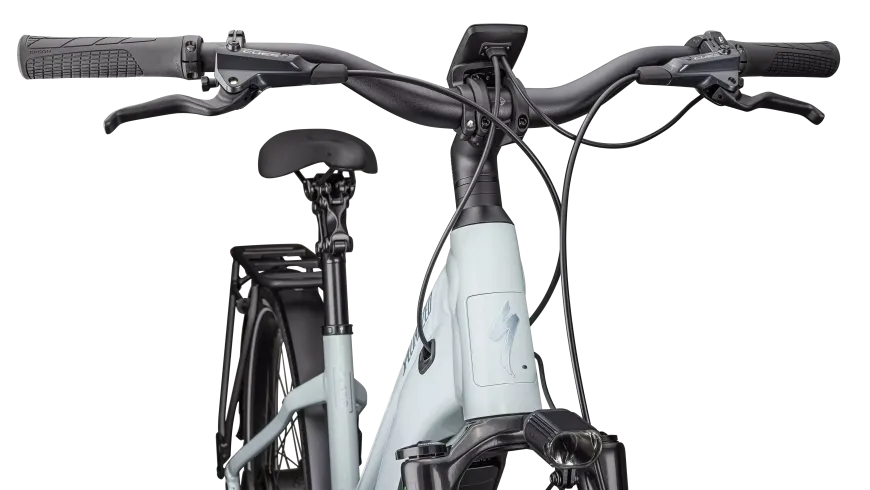

Handlebars: Specialized alloy, 15° backsweep, 46mm rise, 31.8mm

Accessories
Radar: Integrated Garmin Radar with custom data display on MasterMind TCD
Headlight: LEZYNE Power StVZO E500+, 500 lumens
Taillight: Spanninga StVZO Commuter Glow with Brake XEr
Pedals: Specialized Commuter with grip tape & reflectors
Fenders: Specialized DRYTECH fenders, 65mm width, aluminum fender stays
Bell: Specialized brass bell
Kickstand: Specialized kickstand, 40mm mount

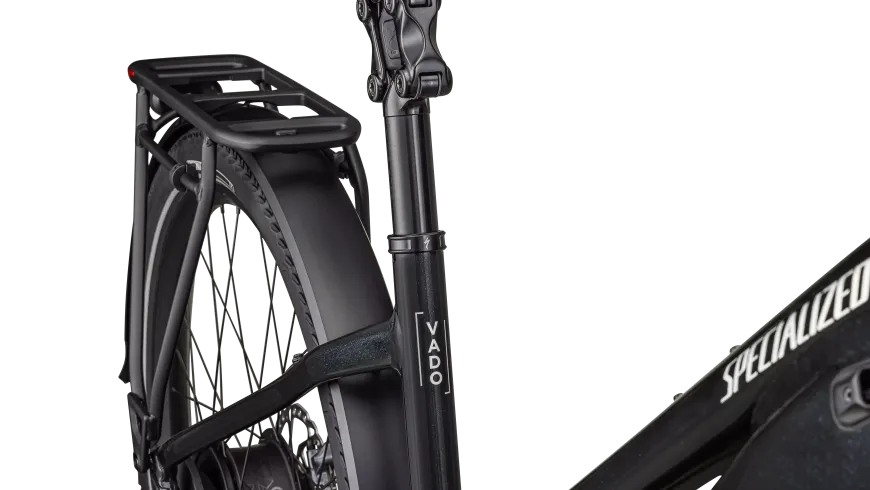

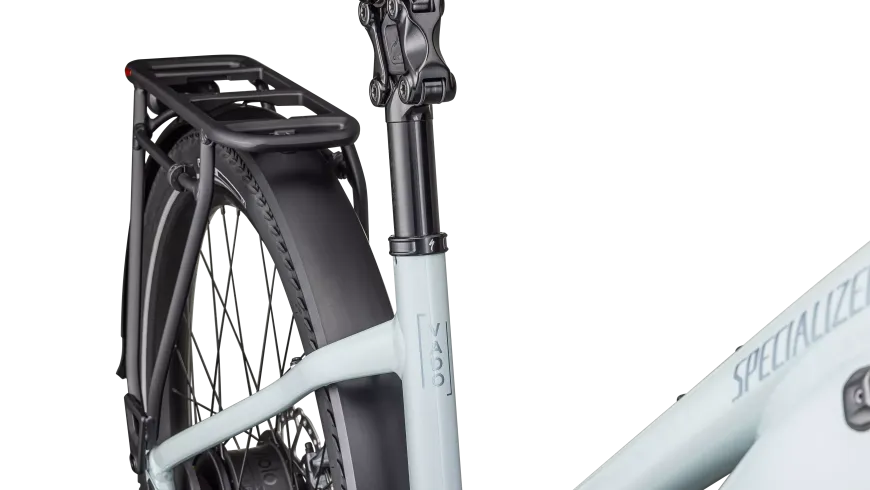

Rack: Specialized rack, MIK HD interface, built-in pannier mounts, 27kg max load
Bike Lock: Turbo System Lock

Product Details
Product ID: 277424
Compliance Certification: Certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS
Weight: 27.57 kg (60 lb, 12.5 oz)
Weight Size: MD
