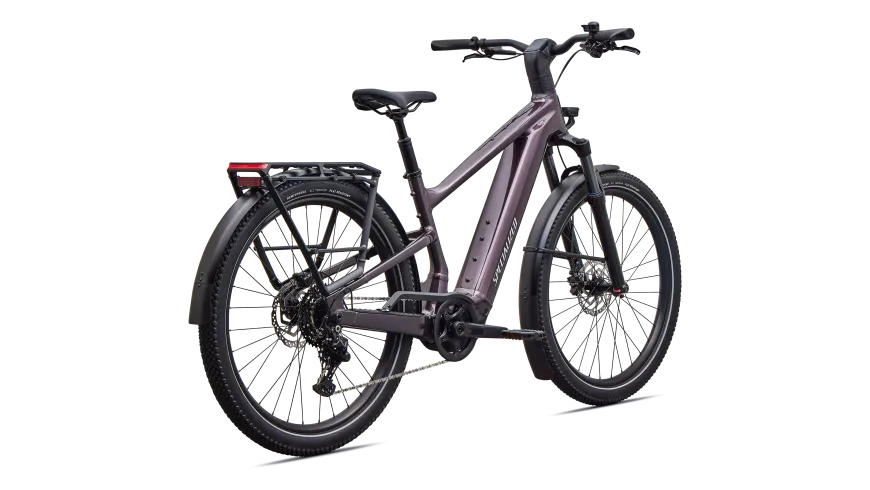

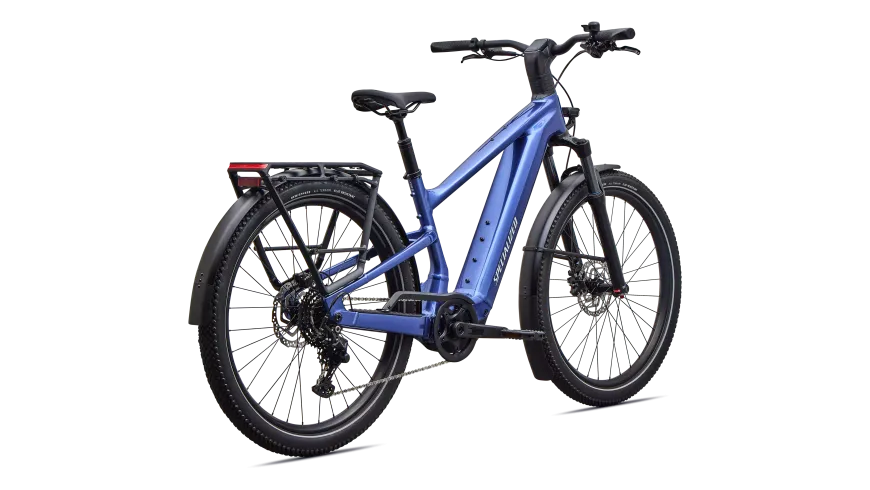

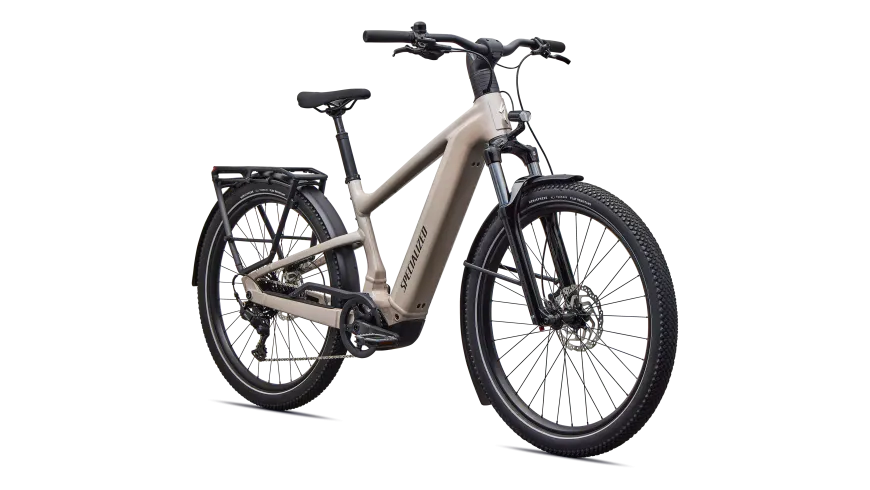

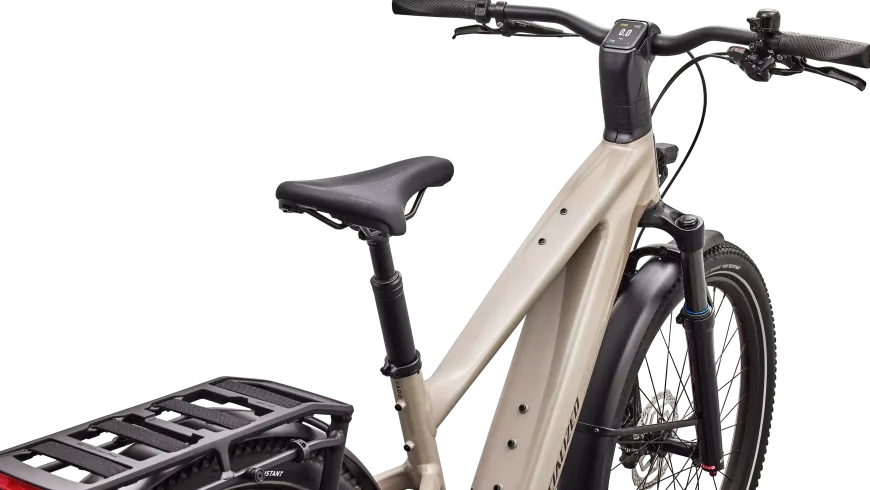

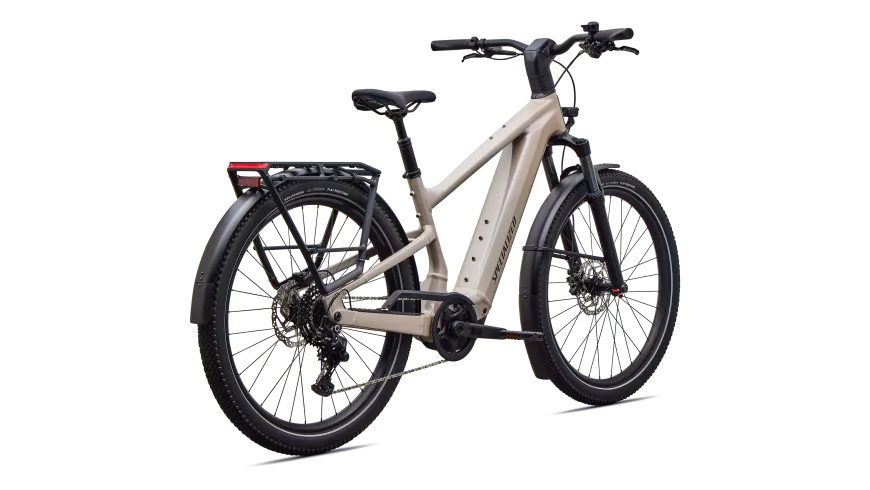

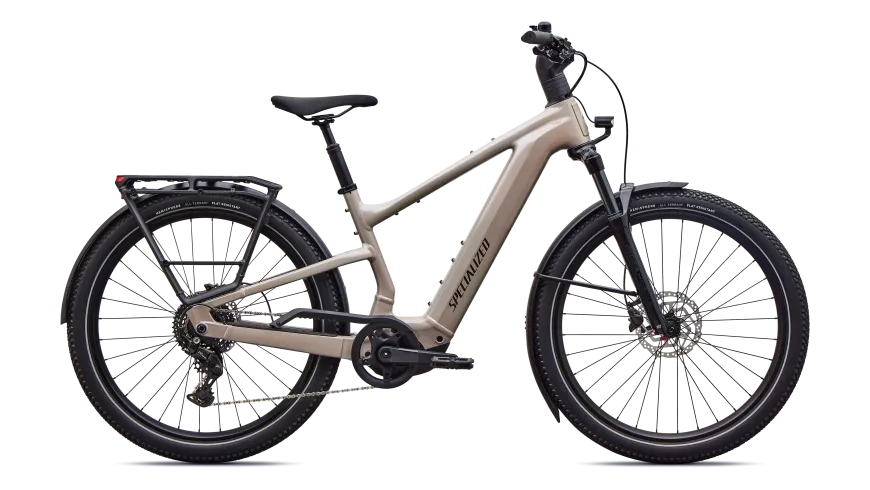

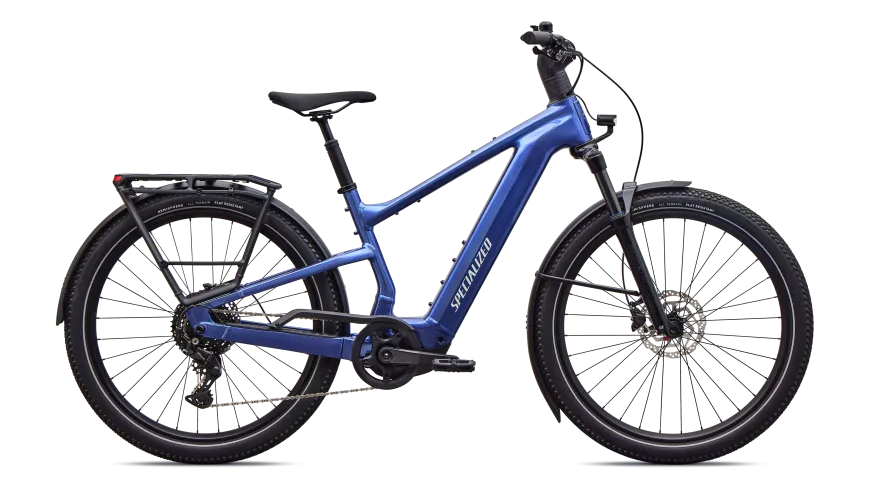

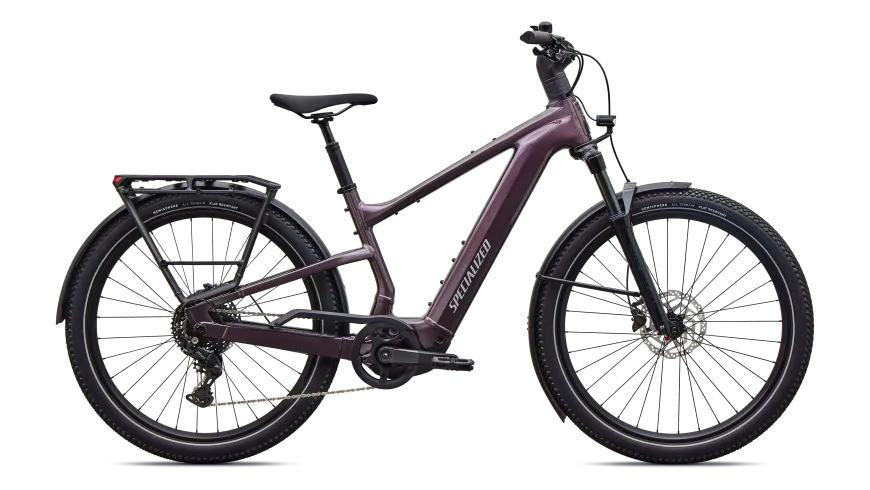

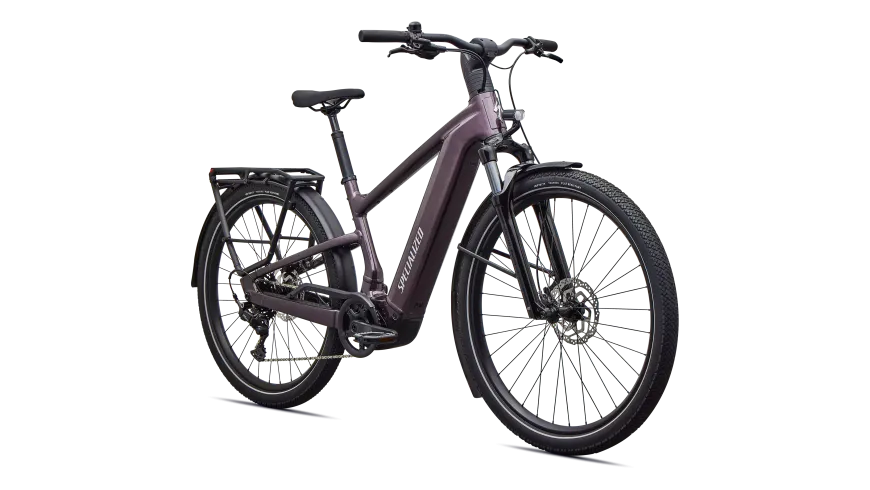

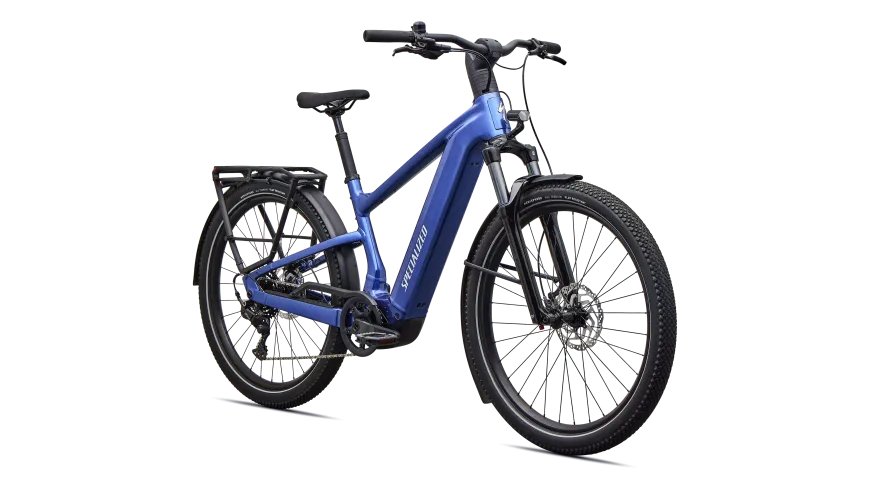

Turbo Vado 3 EVO 4.0

Explore Without Boundaries: Turbo Vado 3 EVO 4.0

The Ultimate All-Terrain E-Bike for Boundless Adventures

Designed for riders who refuse to be limited by the pavement, the Vado 3 EVO transforms every journey with unmatched capability and refined comfort. Whether you’re navigating high-speed urban corridors or venturing onto rugged detours, the Specialized 3.1 motor delivers a staggering 105Nm of torque that responds instinctively to your input—a hallmark of our SuperNatural DNA. With a massive 840Wh battery and class-leading security features like the Turbo System Lock and integrated Apple Find My tracking, the Vado 3 EVO ensures every ride is as secure as it is exhilarating. Perfect the art of arrival on the e-bike that makes every map feel too small.

Technical Specifications

• Intended Use: Full-power all-terrain e-bike for city streets, rough roads, and light trails.
• E-Bike System: Specialized 3.1 motor delivering 810W of peak power and 105Nm of torque.
• Battery Capacity: High-capacity 840Wh battery with a range of up to 150 km.
• Tires: High-volume 2.6″ Hemisphere all-terrain tires for superior grip and comfort.
• Smart Interface: Customizable color display with an integrated USB-C port for easy phone charging.
• Security Suite: Includes battery lock, Turbo System electronic lock, and built-in Apple Find My integration.

Why the Vado 3 EVO?

• Seamless Power Delivery: Experience an instinctive motor response that amplifies your effort naturally, rather than feeling like a machine.
• Extreme Range: The 840Wh battery allows for long-distance roaming without the “range anxiety” of smaller power systems.
• Uncompromised Security: Advanced anti-theft technology keeps your bike calm, composed, and exactly where you left it.
• All-Terrain Versatility: Transition effortlessly from smooth tarmac to gravel paths with tires and geometry designed for stability.
• Connectivity and Control: Stay charged and informed with integrated phone charging and a high-resolution, easy-to-read cockpit.

E-bike

Battery: 840Wh battery

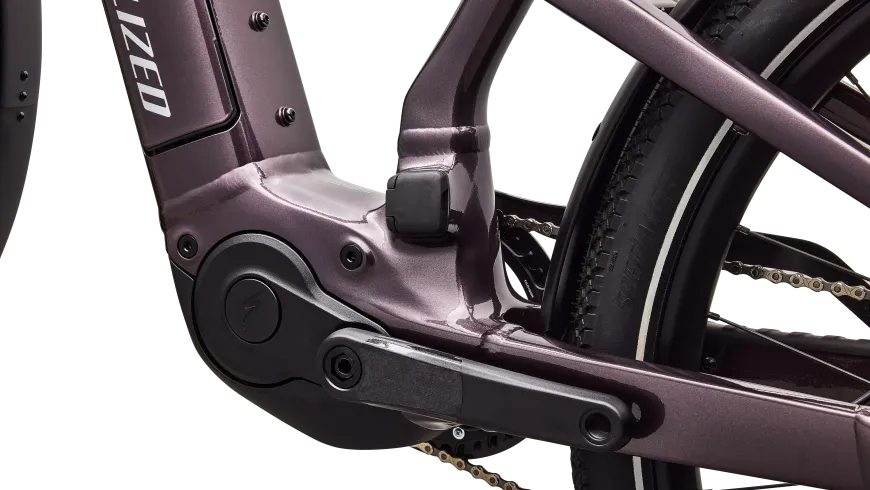

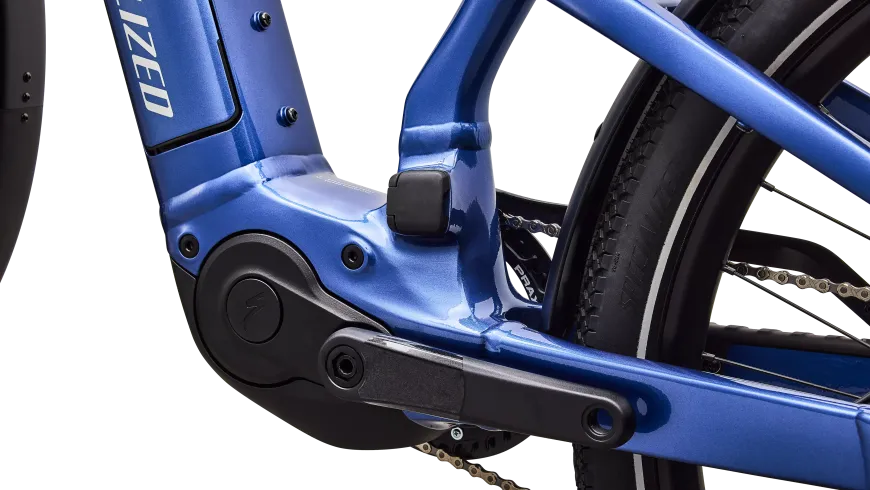

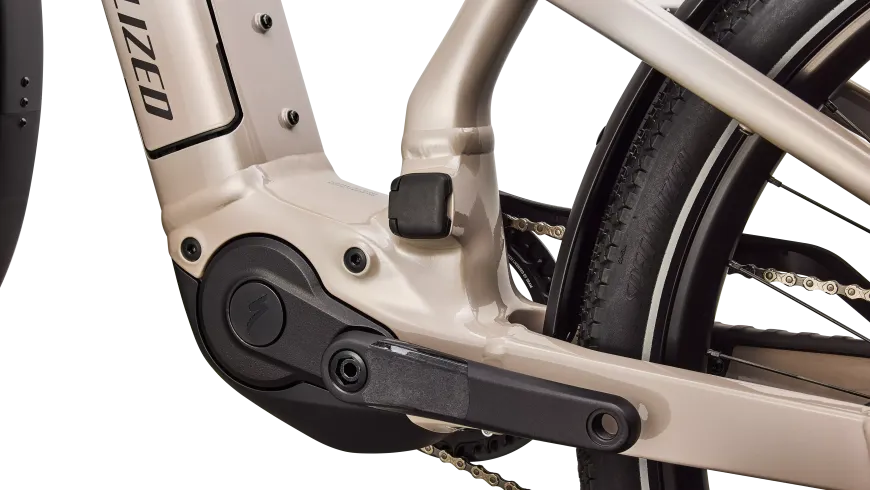

Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
Charger: Specialized 4amp charger
UI/Remote: Turbo Ergonomic remote

Frameset

Seat Binder: Alloy, 38.6mm

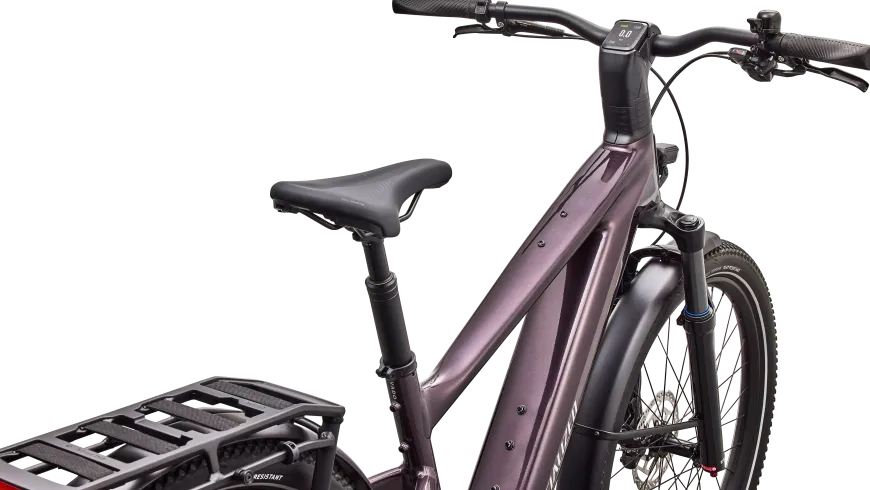

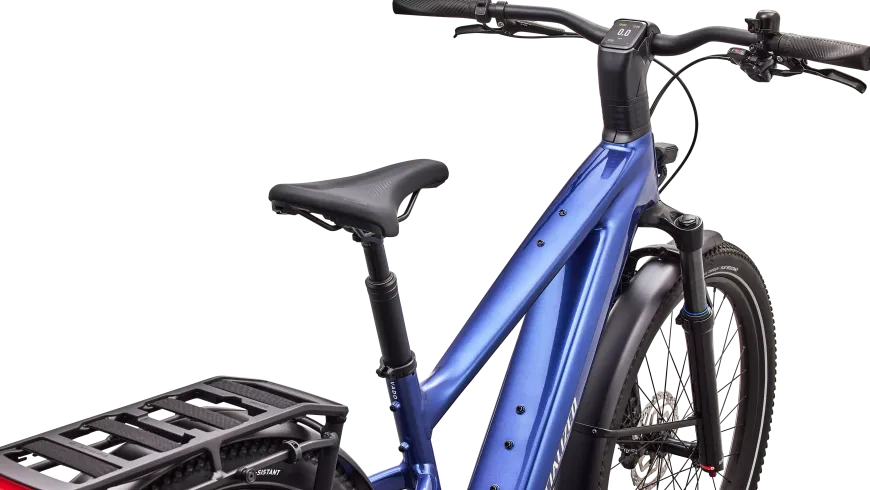

Frame: Vado 3 frame, comfort optimized geometry, side entry battery

Suspension

Fork: SR Suntour suspension fork, 120MM of travel (100MM size S), Stanchion 34MM, 15MM Thru axle, 27.5″ wheel

Brakes

Front Brake: Shimano BR-MT200, hydraulic disc, 180mm
Rear Brake: Shimano BR-MT200, hydraulic disc, 180mm

Drivetrain

Crankset: 170mm, 55mm Chainline, w/BCD 110mm, NW 40T, w/ Chain Guard
Chainrings: 40 Teeth with Chain Retention Technology
Chaincase: Vado 3 Custom Chaincase
Chain: KMC eGlide for 11-Speed CUES
Rear Derailleur: Shimano CUES 9-Speed
Shift Levers: Shimano CUES 9-Speed with Optical Gear Display
Cassette: Shimano CUES 9-speed, 11-41t

Wheels & Tires

Rims: 29 front, 27.5 rear, 30mm inner width, 32h
Spokes: DT Swiss Elemental
Inner Tubes: Reinforced anti flat 27.5X2.5/2.7, Schrader valve 60MM
Rear Hub: Shimano Freehub, Center Lock Disc
Front Hub: Shimano, center lock disc
Front Tire: Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6
Rear Tire: Specialized Hemishpere Flat Resistant ALLTERRAIN Reflect 27.5X2.6

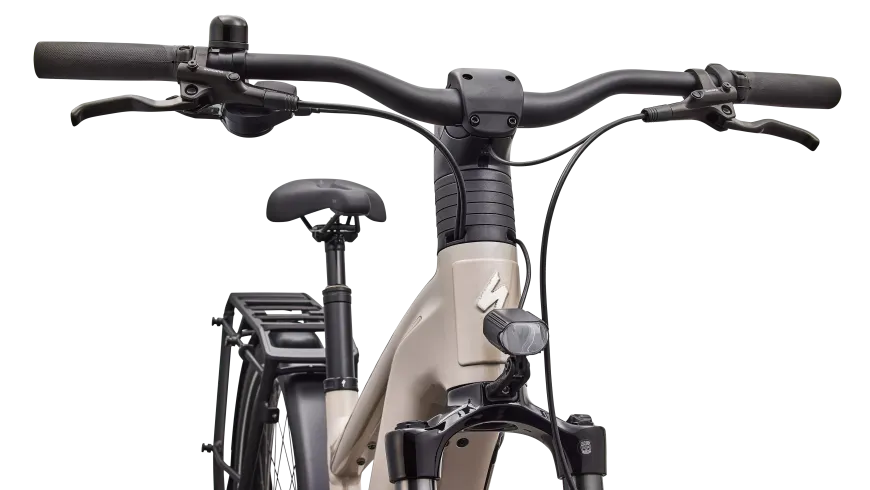

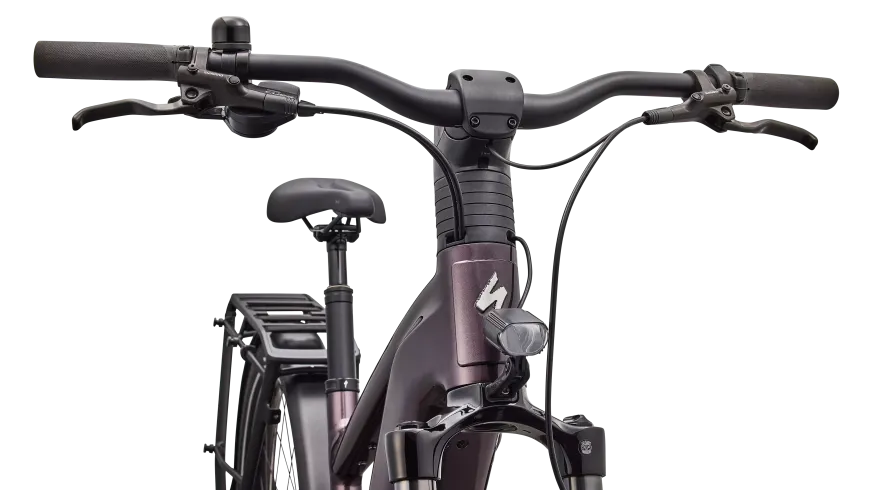

Cockpit

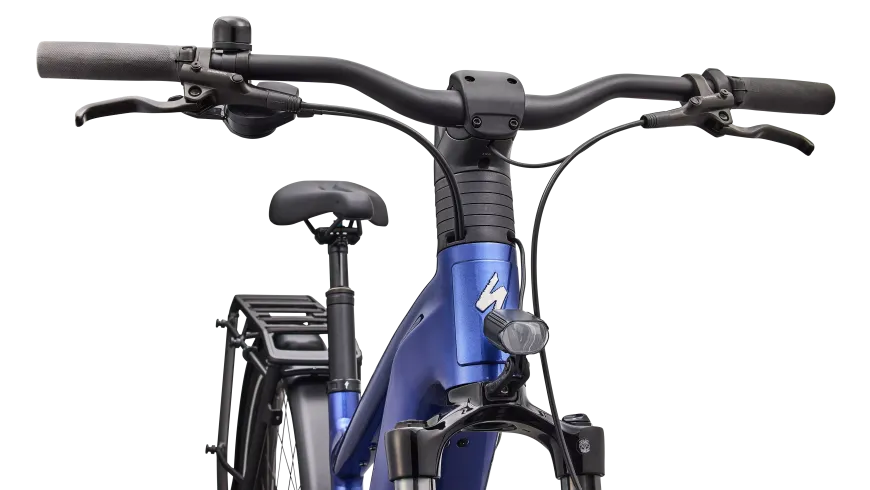

Handlebars: Alloy, Rise 34.4MM, 31.8MM, Back Sweep 13°, Up Sweep 7.8°, Bar End 22.2MM, 690-730MM
Saddle: Body Geometry, Rivo 2 Gel, 168MM
Stem: Stem w/ integrated Colored Display & USB-C Phone charger, 31.8MM
Grips: Specialized Body Geometry
SeatPost: Suspension, 40mm travel, 34.9mm

Accessories

Bell: Bell
Fenders: Vado 3 Custom Alloy Profile Fenders
Headlight: Lezyne Stvzo E500+ 500lm, Fork Mounted
Kickstand: Vado 3 Custom Kickstand, With Adjustable Shoe

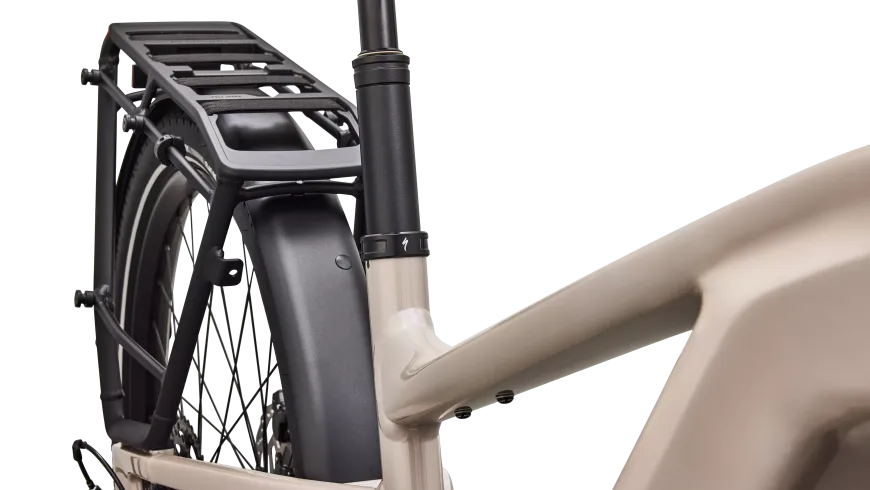

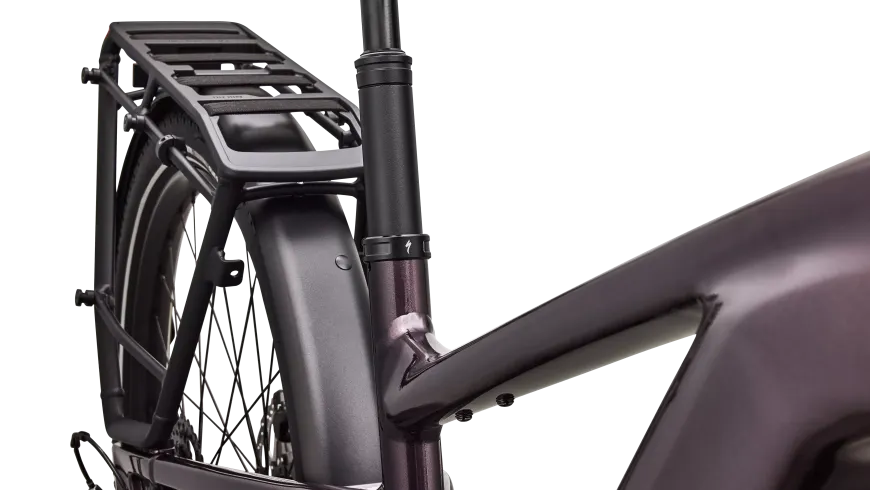

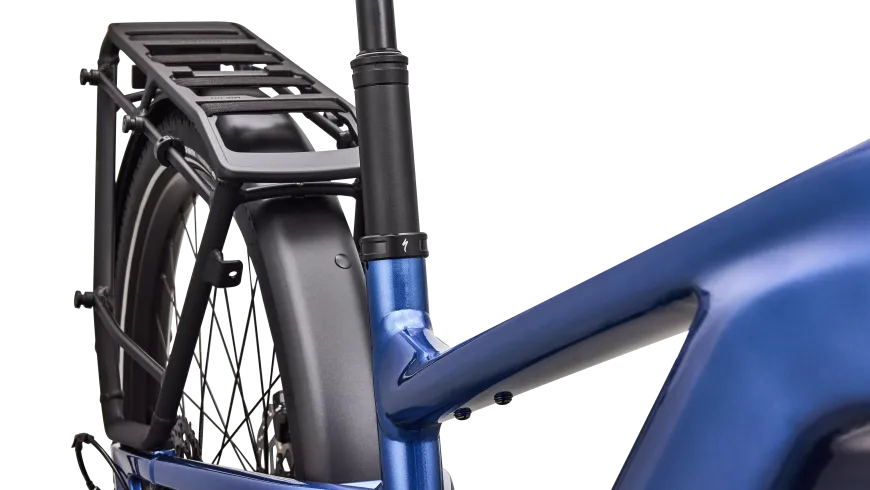

Rack: Vado 3 Custom Seatstay Mounted MIK HD Rack, 27Kg Max Load
Taillight: Spanninga Rack Integrated Rear Light With Brake Light
Bike Lock: Mechanical Battery Lock With Key
SWAT: MIK HD 27.5 Kg rear rack with integrated elastics, MIK front rack 10kg compatible (not included)
Pedals: Turbo Pedals, anti-slip

Product Details

Product ID: 279840
Compliance Certification: Certified to UL 2849 (e-system) and/or UL 2271 (battery).

Weight

Weight: 28.7 kg (63 lb, 4.4 oz)
Weight Size: MD
