Faster Everywhere
No matter who you are or how you ride, SuperSix EVO inspires the most combative riders to go faster – everywhere.
Where real race speed begins. Built on the light, aero, and race-tested Generation 4 EVO frameset, the SuperSix EVO 6 features the proven performance of Shimano’s 105 mechanical 12-speed group and DT Swiss R470 tubeless-ready rims. With our Conceal stem and Vision Trimax Compact bars making up the cleanly integrated cockpit, this speedy rig is ready to make you faster everywhere.
What it’s for
Breakaways, KOMs, Podiums, and PRs
Highlights
- Lightweight Gen. 4 SuperSix EVO carbon frameset – race proven speed and performance
- Shimano’s legendary 105 12-speed group – an incredible performance value
- Shimano 105 hydraulic disc brakes for smooth, controllable braking
- Light, durable DT Swiss R470 rims with Shimano hubs and 700x25c Vittoria tires

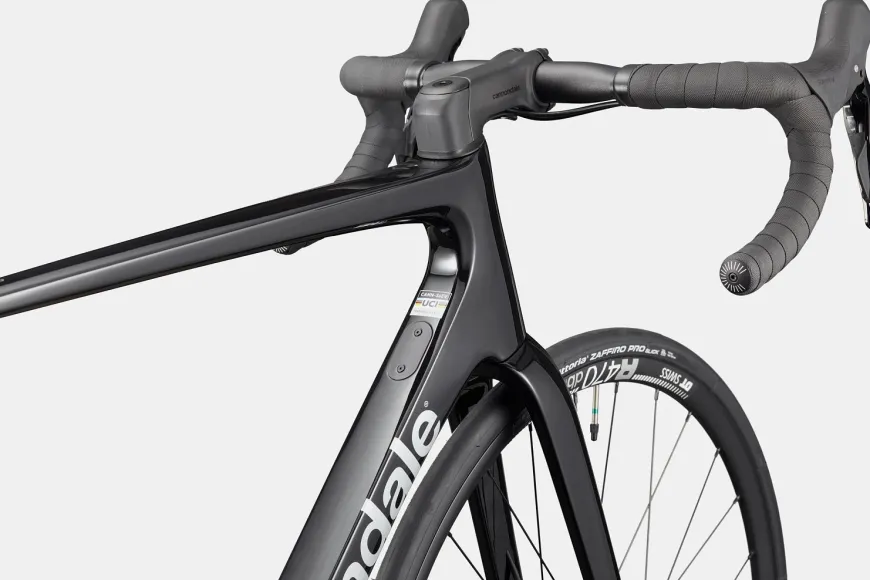

- Vision Trimax Compact bars and Cannondale C1 Conceal stem – ergonomic cockpit with hidden cables
Frameset

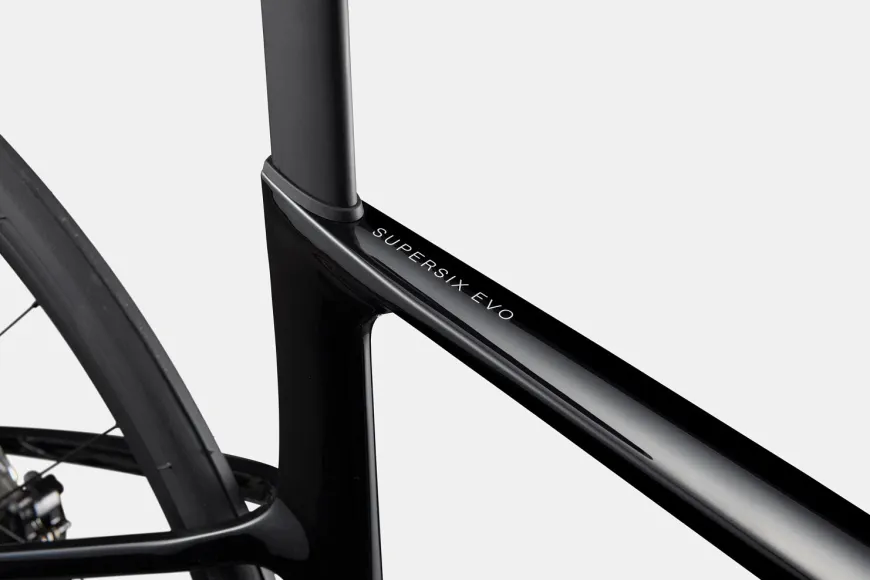

- FrameSuperSix EVO Carbon, Gen 4, integrated cable routing w/ Switchplate, 12×142 thru-axle, BSA 68mm threaded BB, flat mount disc, integrated seat binder
- ForkSuperSix EVO Carbon, Gen 4, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8″ to 1-1/4″ Delta steerer, 55mm offset (44-54cm), 45mm offset (56-61cm)
- HeadsetIntegrated, 1-1/8″ – 1-1/4″
Drivetrain

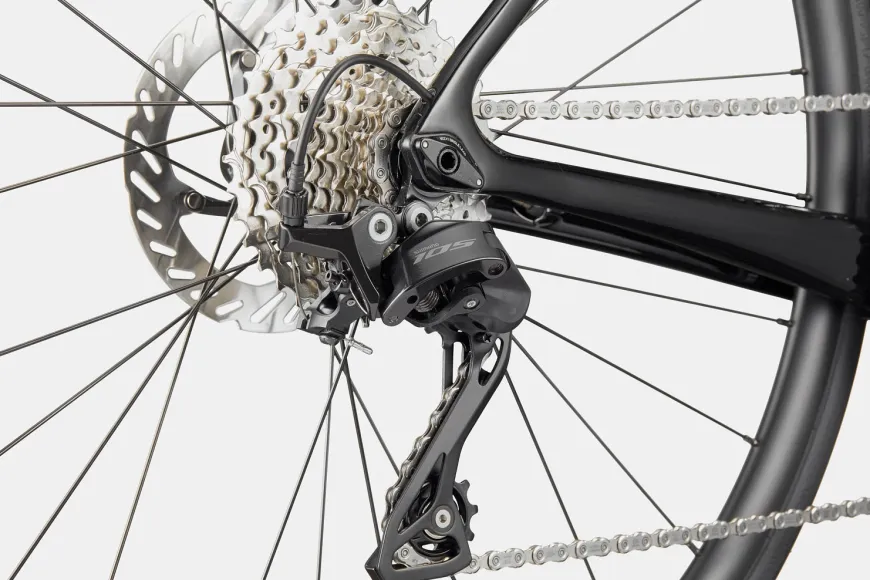

- Rear DerailleurShimano 105 7100, 12-speed
- Front DerailleurShimano 105 7100
- ShiftersShimano 105 7100, 2×12-speed
- ChainShimano 105 7100, 12-speed

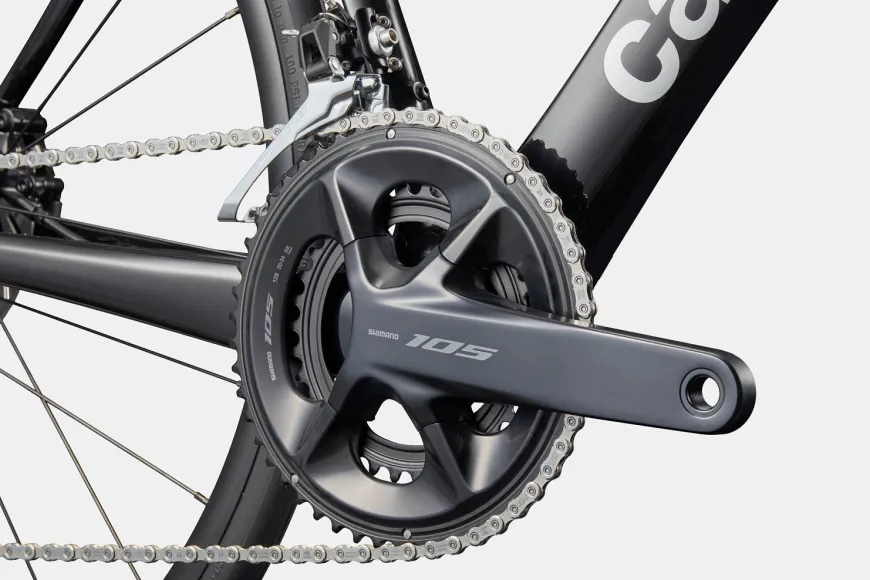

- CrankShimano 105 7100, 50/34: 165mm (44cm), 170mm (48-51cm), 172.5 (54-56cm), 175mm (58-61)
- Rear CogsShimano 105 R7100, 11-36, 12-speed
- Bottom BracketShimano BB-RS500, BSA 68
Brakes
- BrakesShimano 105 R7170 hydraulic disc, 160/160mm CL700 rotors
- Brake LeversShimano 105 7100 hydraulic disc
Wheels
- RimsDT Swiss R470 DB, tubeless ready
- SpokesStainless Steel, 14g
- Tire Size25
- Wheel Size700c
- HubsShimano TC500, centerlock, (F) 12x100mm, (R) 12x142mm
- TiresVittoria Zaffiro Pro Slick, 700x25c
Components
- HandlebarVision Trimax Compact: 380mm (44cm), 400mm (48-51), 420mm (54-56cm), 440mm (58-61)
- StemCannondale C1 Conceal, Alloy, 31.8, -6°: 80mm (44cm), 90mm (48-52cm), 100mm (54-56cm), 110mm (58-61cm)
- GripsCannondale Bar Tape, 3.5mm
- SaddlePrologo Nago RS STN
- SeatpostCannondale C1 Aero 40 Carbon, 330mm, 0mm offset (44-48cm), 15mm offset (51-61cm)
Extra
- Extra 1Conceal Stem accessory/computer mount (Garmin/Wahoo)
