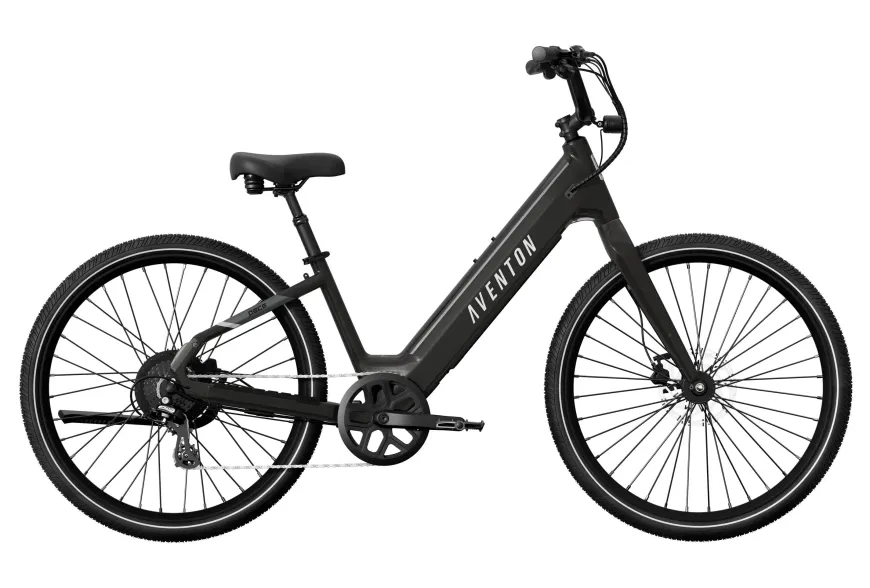

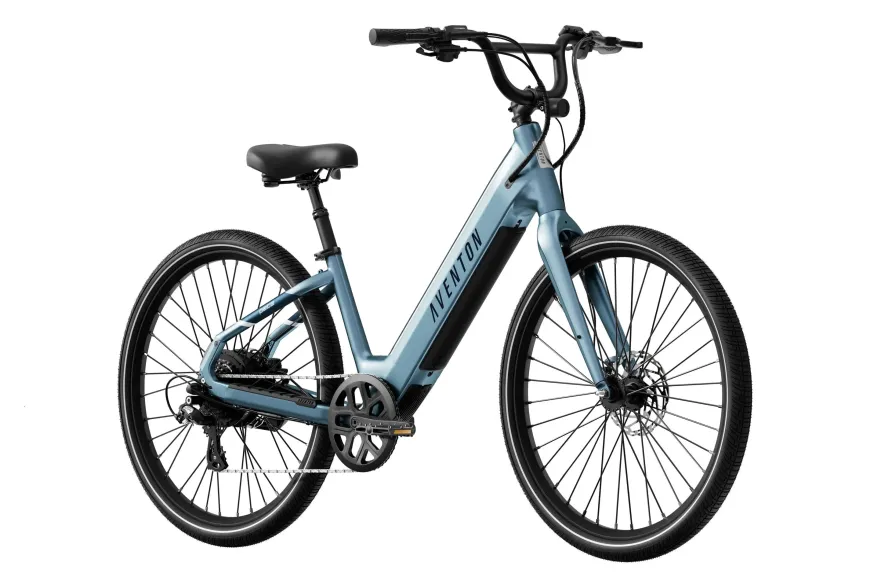

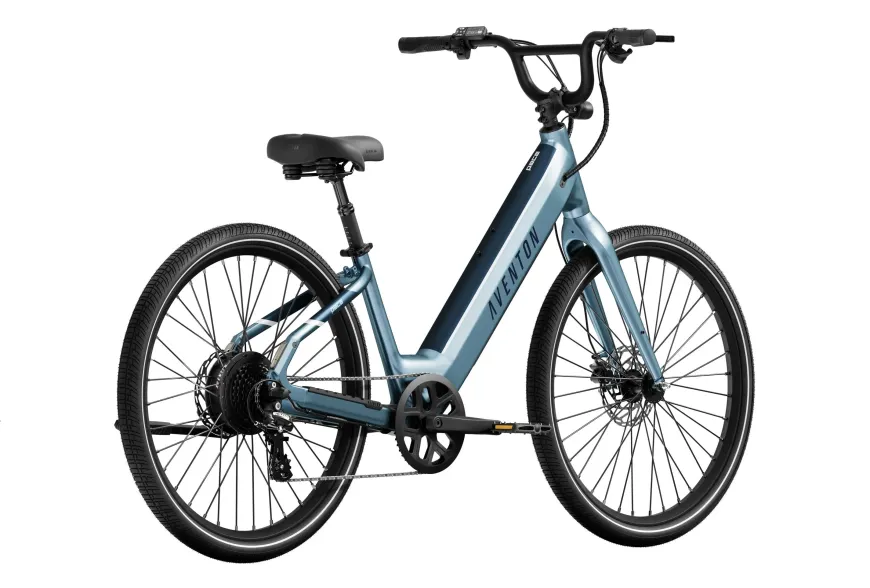

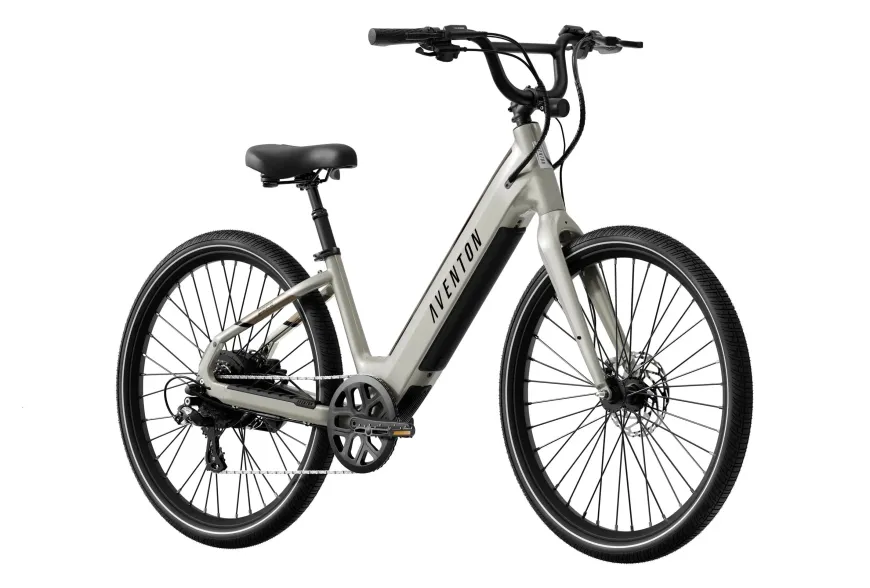

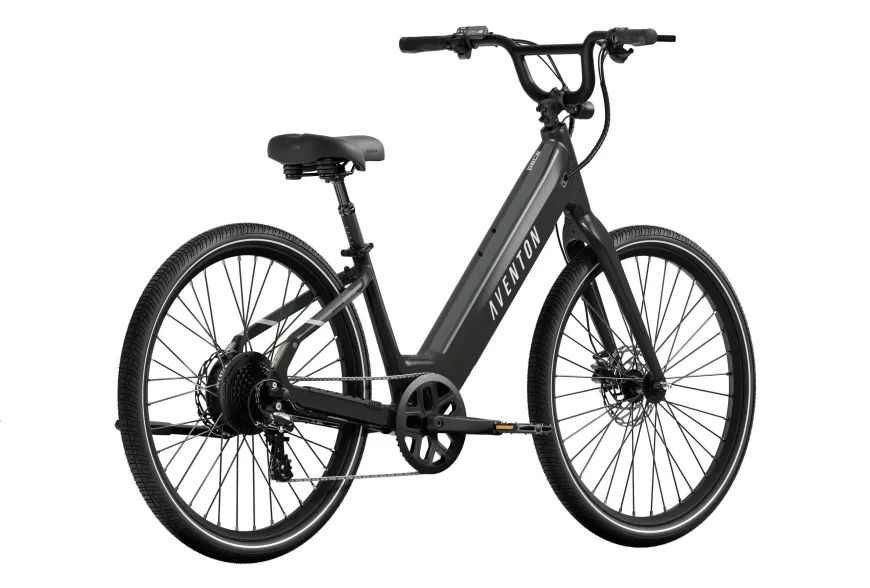

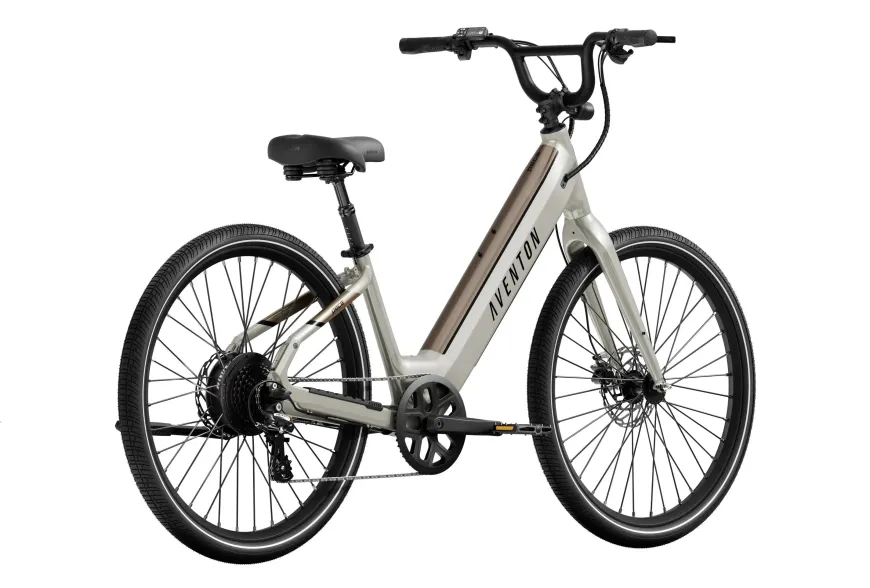

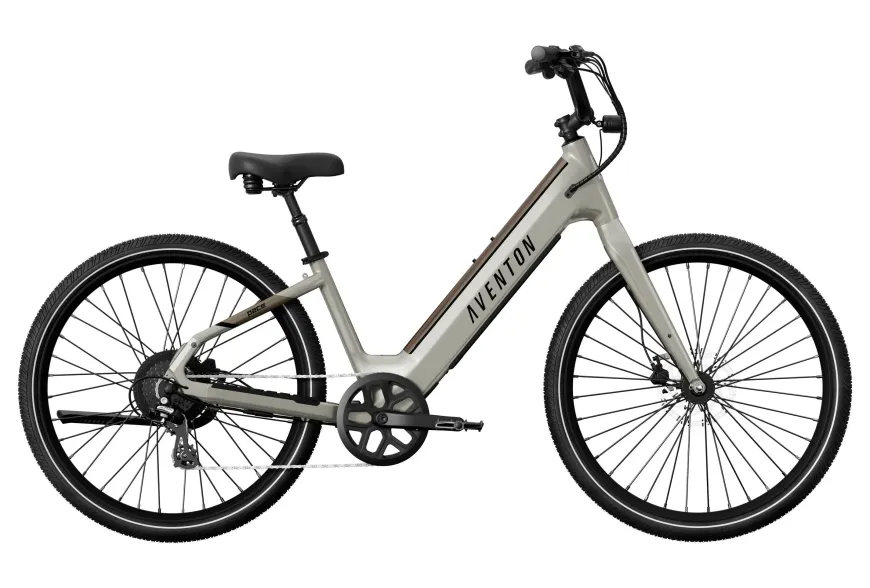

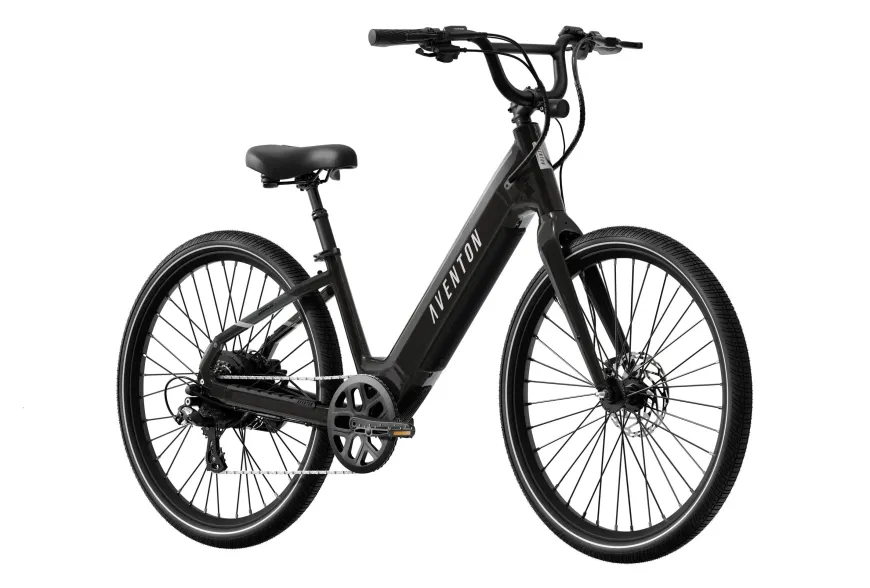

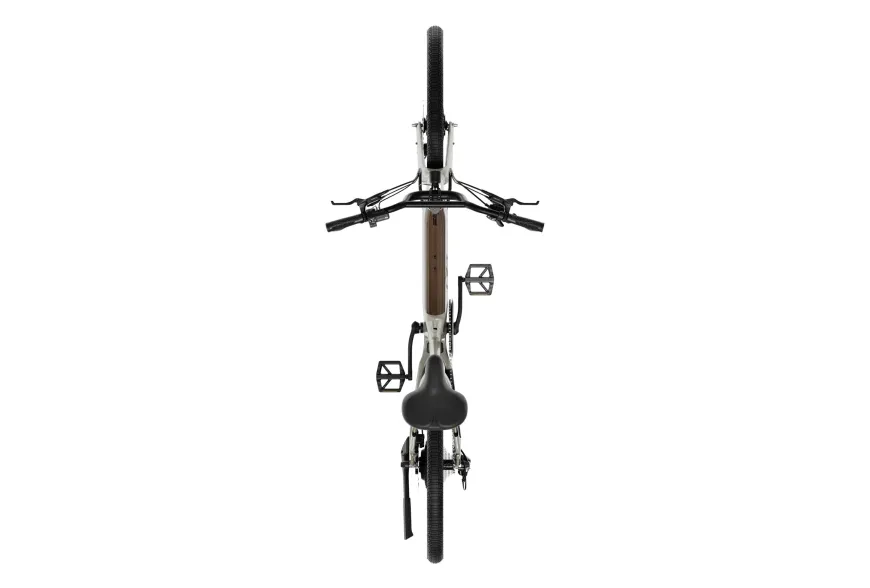

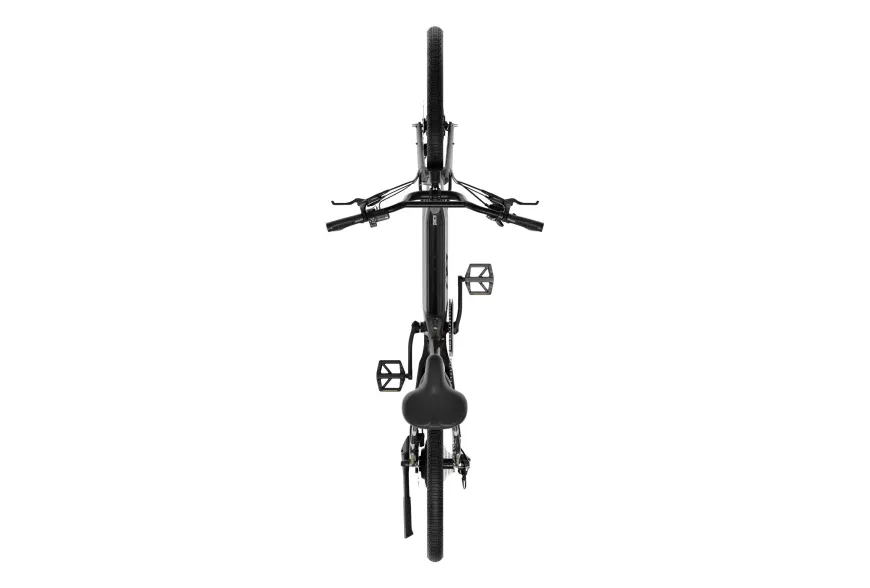

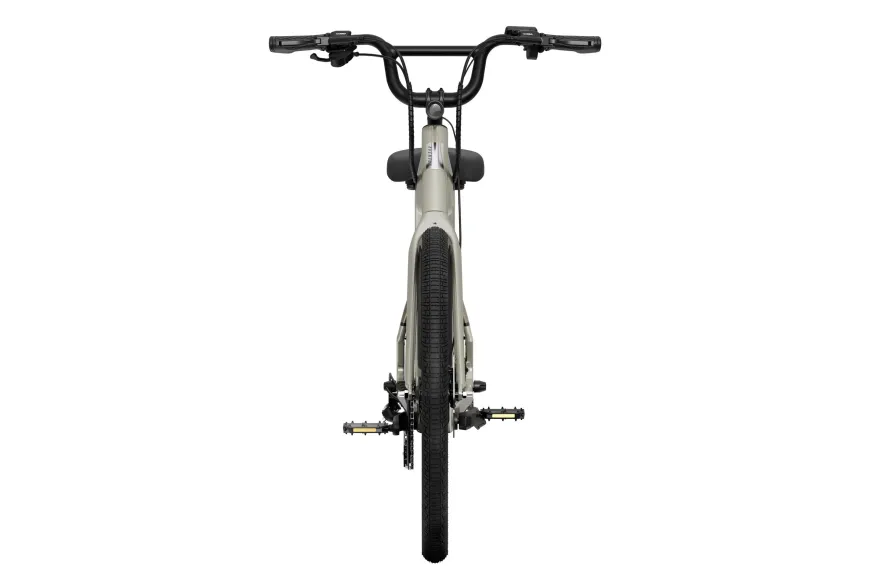

Pace 4 Step Through E-Bike

The Aventon Pace 4 is the next-generation cruiser you’ve been waiting for. It combines smart bike technology, comfortable frame geometry, and enhanced touchpoints to maximize fun on every ride. Designed for those looking to get around town, go for a ride along the beach, or simply rediscover their local neighborhood on two wheels, the Pace is ready to cruise. Thanks to its 500W of motor power paired with torque sensor technology, Pace 4 is ready to elevate all of your weekend rides, while the 3 customizable levels of pedal assist allow you to fine tune the bikes behavior to match your riding style and preferences. With added security features like GPS tracking, unusual activity detection, rear wheel lock, and much more, Pace 4 gives you peace of mind knowing your bike is always secure so you can focus solely on the fun ahead. Get ready to cruise, with the all new Pace 4.

Model
Name: Pace 4 Step Through Ebike

Weight: 53 lbs
Total Weight Limit: 300 lbs
Rider Height: Regular: 4’11” – 5’7″ | Large: 5’7″ – 6’1″
Water Resistance: IPX4
Range: Up to 70 miles
Ebike Class: Class 2 (can be converted to Class 3 if local laws and regulations allow)
Battery Safety Certifications: Certified to UL 2271
Bike Safety Certifications: UL Safety Certified, UL 2849
Ideal Use: Cruising

Frameset
Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Rigid Aluminum Fork
Rear Spacing: 142mm
Fork Spacing: 100mm

Wheelset
Front Wheel: 27.5″, 36 hole, nutted axle, Schrader valve
Rear Wheel: 27.5″, 36 hole, nutted hub drive motor, Schrader valve
Tires: 27.5″ x 2.1″

E-Bike System

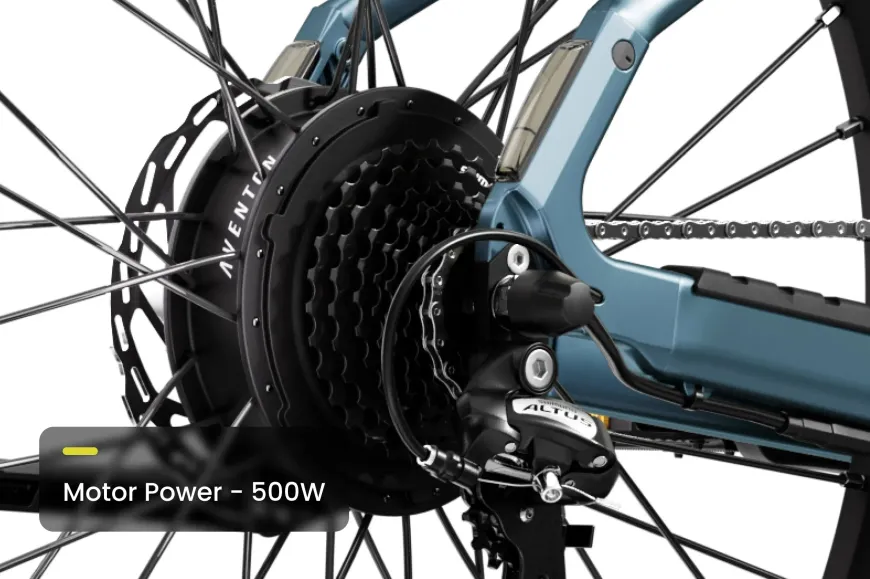

Motor: 36V, 500W
Motor Torque: 60Nm
Motor Power: 500W
Display: Aventon BC147
Battery: Removable internal lithium-ion, 36V, 20Ah, 733Wh, LG 21700 cells
Battery Weight: 8.7 lbs
Controller: 36V, 24A

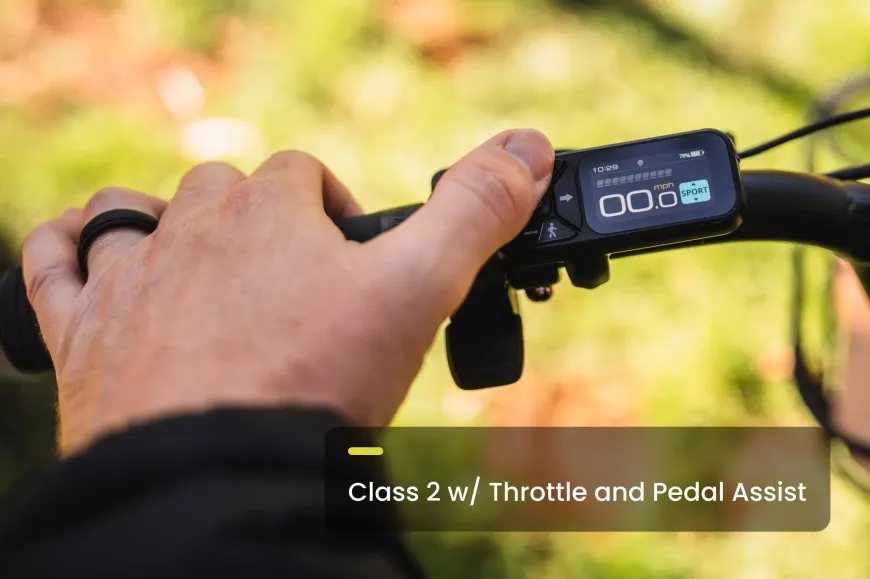

Throttle: Aventon LH handlebar mounted
Sensors: Double-sided bottom bracket torque sensor
Charger: 36V output, 42V / 4A
Charging Time (0% to 100%): 5 hours
Lights: Integrated front and rear lights

Brakes
Front Brake: Tektro hydraulic with e-cutoff
Rear Brake: Tektro hydraulic with e-cutoff
Front Brake Rotor: 180mm, 6 bolt
Rear Brake Rotor: 180mm, 6 bolt

Drivetrain
Rear Derailleur: Shimano Altus 8-speed
Shifter: Shimano 8-speed trigger
Chain: 7/8 speed, 122L
Cassette: 12–32T, 8-speed Shimano CS HG200-8
Chainring: 48T
Chainring BCD: N/A
Crankset: 3-piece, 170mm crank arm
Bottom Bracket: Square taper, sealed, double-sided torque sensor, 83mm x 158.5mm
Pedals: 9/16″ composite platform

Cockpit
Saddle: Aventon Saddle
Seatpost: Aventon suspension seatpost, Ø 30.9mm, 350mm length, 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: BMX-style aluminum, 31.8mm clamp, 720mm width
Stem: 31.8mm x 50mm, +15° rise
Grips: Aventon ergonomic comfort lock-on grips
Headset: Sealed bearing headset

Included Accessories
Kickstand: Included, rear mount
