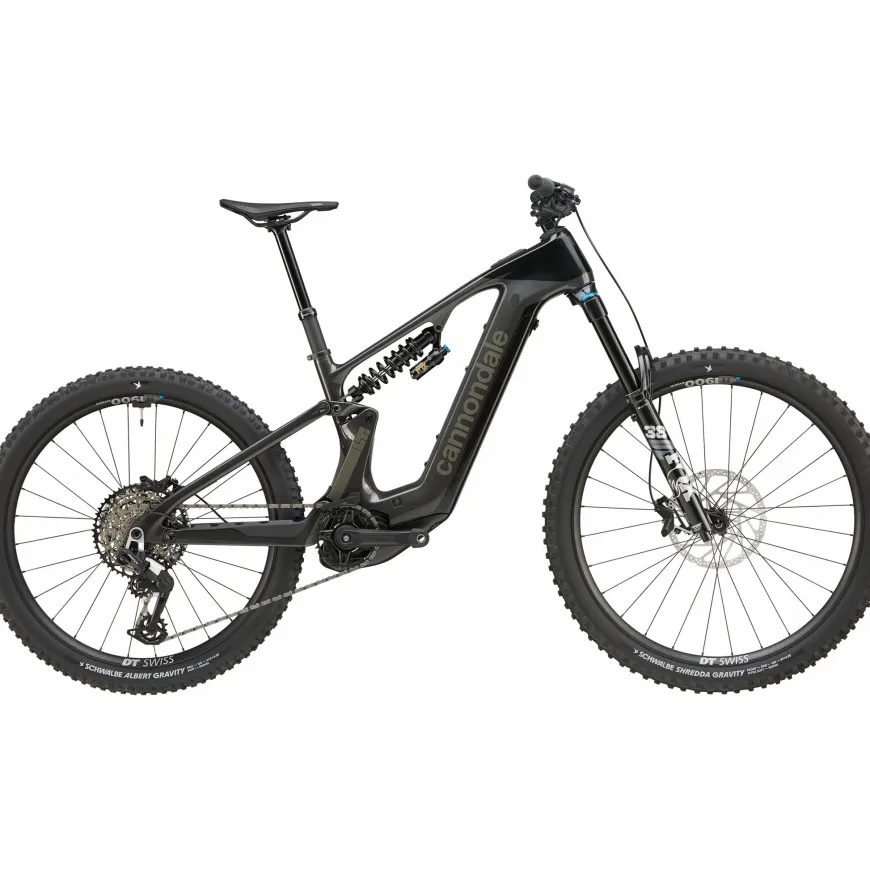

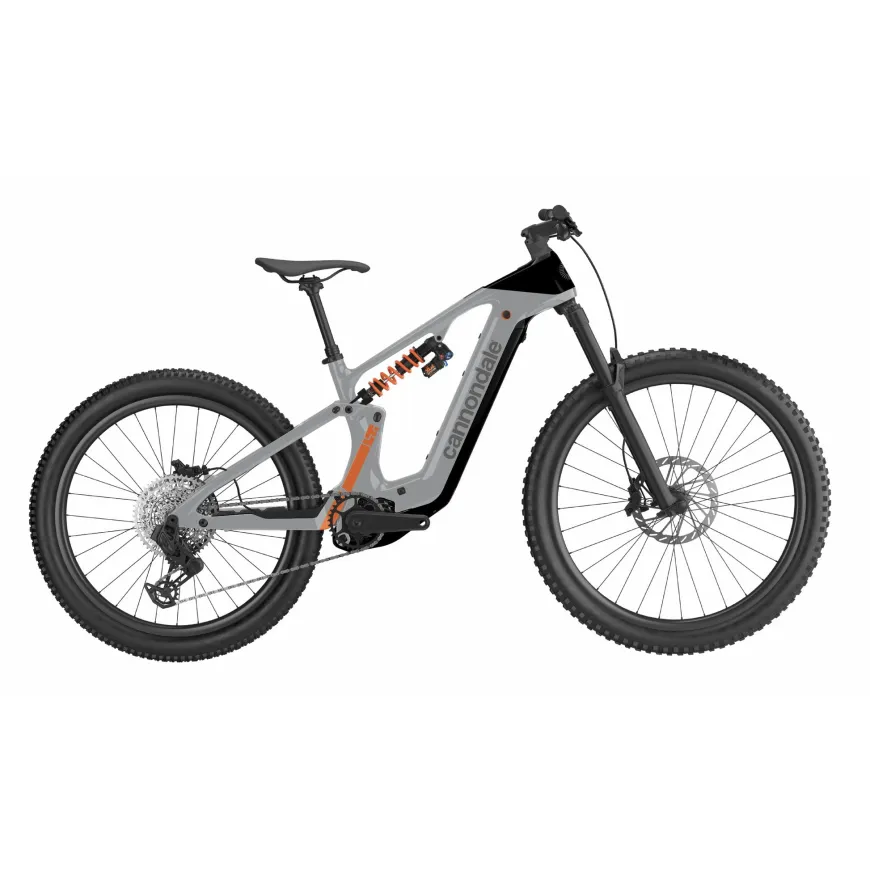

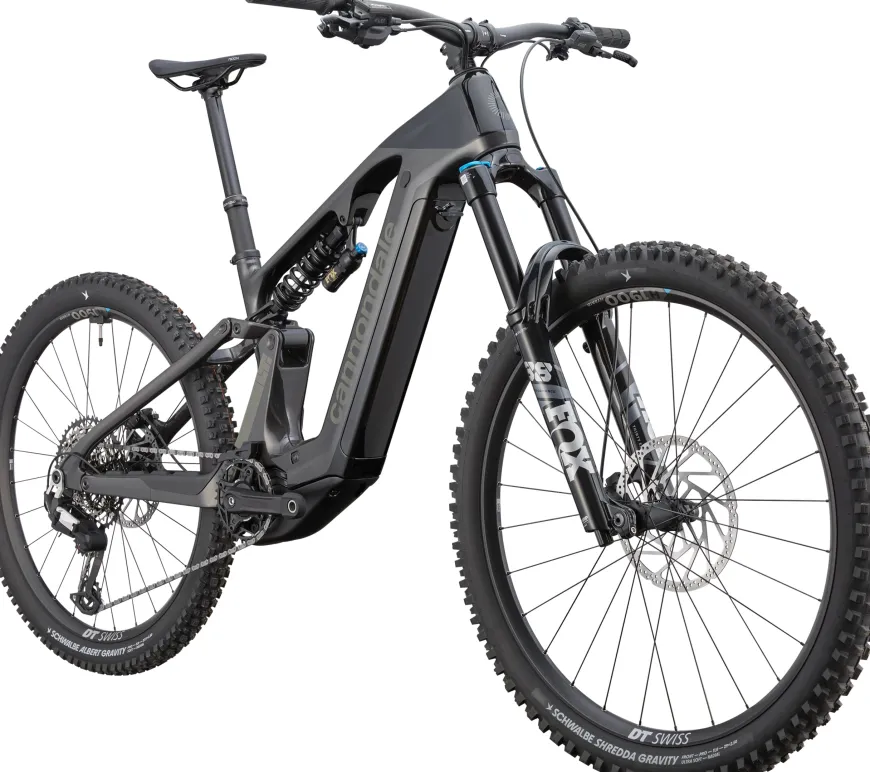

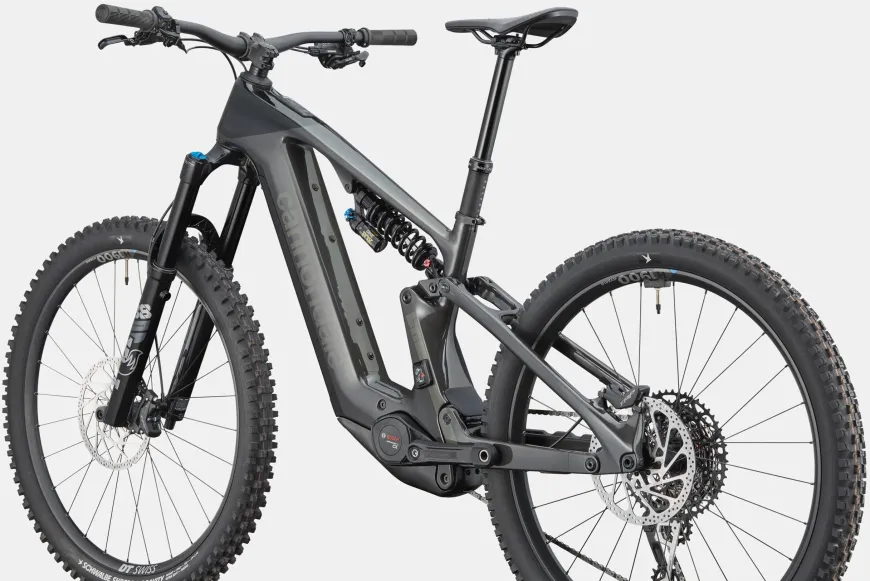

Moterra LT 1

Moterra LT 1 Point and Play

The reigning E-Enduro World Champ, the Moterra LT turns every trail into a full-throttle playground. Built to charge hard in every direction, it delivers massive climbing power, composed suspension, and downhill-ready confidence to flatten rough terrain and attack descents with speed and control.

Highlights

• Light yet burly carbon fiber frame with Proportional Response size-specific kinematics, tuned specifically for the coil shock and mullet wheel setup
• Bosch Performance CX system paired with an 800Wh battery, delivering Bosch’s most powerful motor with incredibly natural power delivery and massive range
• Hard-hitting Fox suspension featuring a 170mm Float Performance 38 fork and a supple DHX Performance coil piggyback rear shock
• Rugged DT Swiss H 1900 Spline E-MTB wheelset with 30mm internal width and DT Swiss 370 hubs featuring durable Ratchet LN internals
• Tough and reliable SRAM Eagle 90/70 12-speed drivetrain built to handle aggressive riding
• Powerful stopping performance from TRP EVO Pro 4-piston disc brakes with 220mm front and 203mm rear rotors

Frameset

• Frame: Moterra LT Carbon, 27.5″ rear wheel, 29″ front wheel, 165mm travel, Proportional Response Tuned Suspension, removable downtube battery, alloy skid plate, 55mm chainline, internal cable routing, 148x12mm thru-axle, UDH, 200mm native post mount brake, 1.5” – 1.8” tapered headtube
• Fork: Fox Float Performance 38, 170mm, Grip Damper 3Pos, 15x110mm Kabolt thru-axle, tapered steerer, 44mm offset
• Headset: Acros ICR, 1.5″ to 1.8″, sealed bearings
• Rear Shock: Fox DHX Performance, Coil, 2 pos adj, 230x65mm

E-System

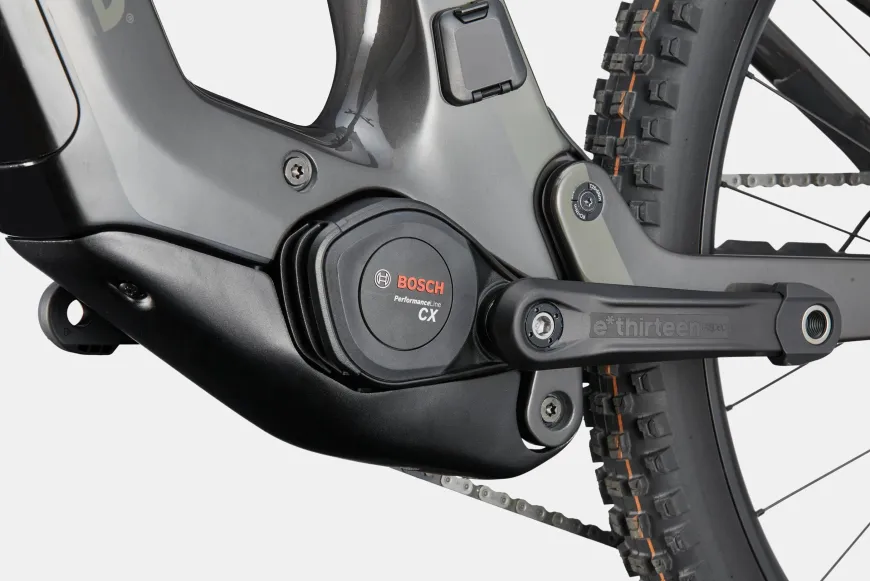

• Drive Unit: Bosch Performance Line CX
• Battery: Bosch PowerTube, 800Wh
• Charger: Bosch 4A

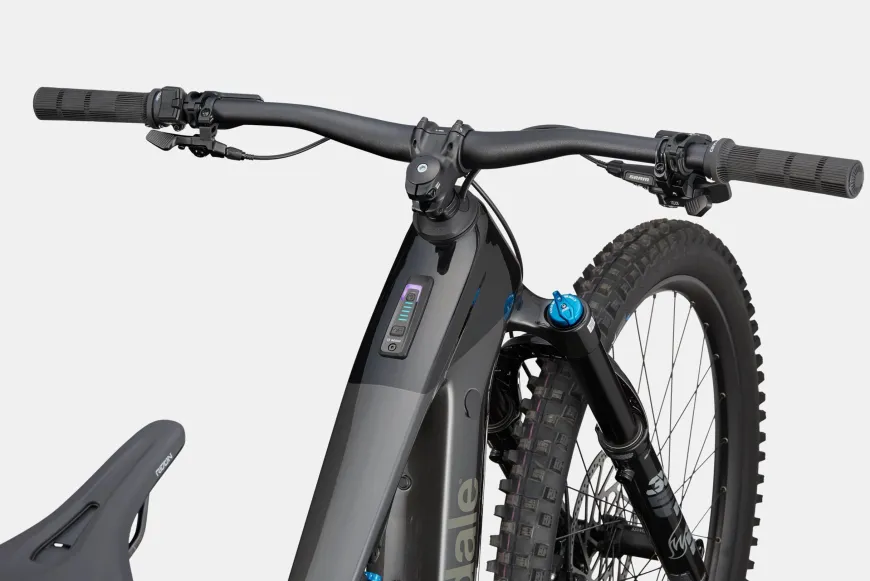

• Display: Top Tube System Controller w/ Mini Remote

Drivetrain

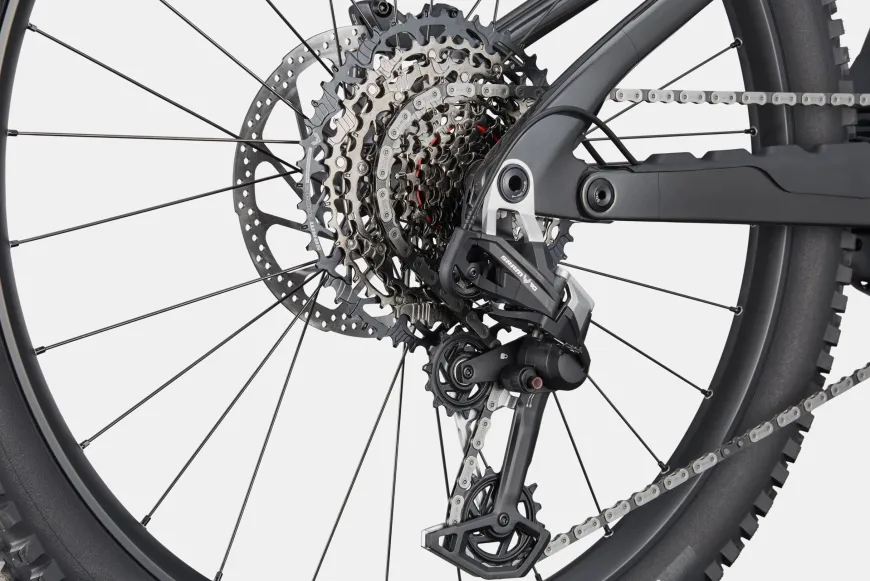

• Rear Derailleur: SRAM Eagle 90, T-Type
• Shifters: SRAM Eagle 90, T-Type, 12-speed
• Chain: SRAM Eagle 70 T-Type, 12-speed
• Crank: e*thirteen e*spec Helix Core, 55mm chainline, 160mm, 34T
• Rear Cogs: SRAM Eagle 70 T-Type, 10-52, 12-speed

Brakes

• Brakes: TRP EVO Pro 4-piston hydraulic disc, 220/203mm rotors, 2.3mm thickness
• Brake Levers: TRP EVO Pro hydraulic disc

Wheels

• Rims: DT Swiss H 1900 Spline, 30mm inner width, TC (tubeless ready)
• Spokes: DT Swiss Competition, straight pull
• Tire Size: 2.5
• Wheel Size: 297
• Hubs: (F) DT Swiss 370, 15x110mm thru-axle / (R) DT Swiss 370 LN Ratchet System, 12x148mm thru-axle, 6-bolt
• Tires: (F) Schwalbe Shredda Front, 29×2.5″, Radial casing, Addix Ultra Soft Foldable, tubeless ready / (R) Schwalbe Albert, 27.5×2.5″, Radial casing, Addix Soft Foldable, tubeless ready
• Front Tire: Schwalbe Shredda Front, 29×2.5″, Radial casing, Addix Ultra Soft Foldable, tubeless ready
• Rear Tire: Schwalbe Albert, 27.5×2.5″, Radial casing, Addix Soft Foldable, tubeless ready

Components

• Handlebar: Cannondale 3 riser, 6061 Alloy, 25mm rise, 8° sweep, 4° rise, 800mm
• Stem: Cannondale 1, 6061 Alloy, 35.0, 40mm, 0°
• Grips: Cannondale TaperRidge
• Saddle: Fizik Terra Ridon X5, 145mm, Wingflex, S-Alloy Mobius rail
• Seatpost: Cannondale DownLow Dropper, internal routing, 34.9, 150mm (S), 170mm (M), 200mm (L), 230mm (XL)

Extra

• Extra 1: Tubeless Valves, Bosch PowerMore range extender compatible
