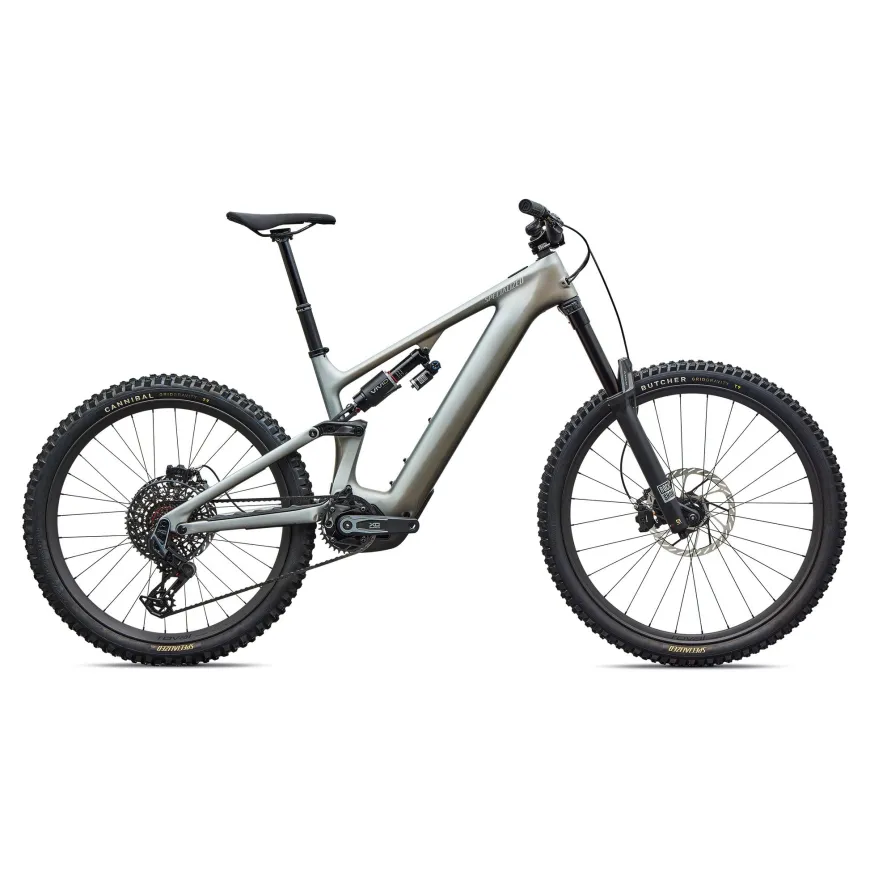

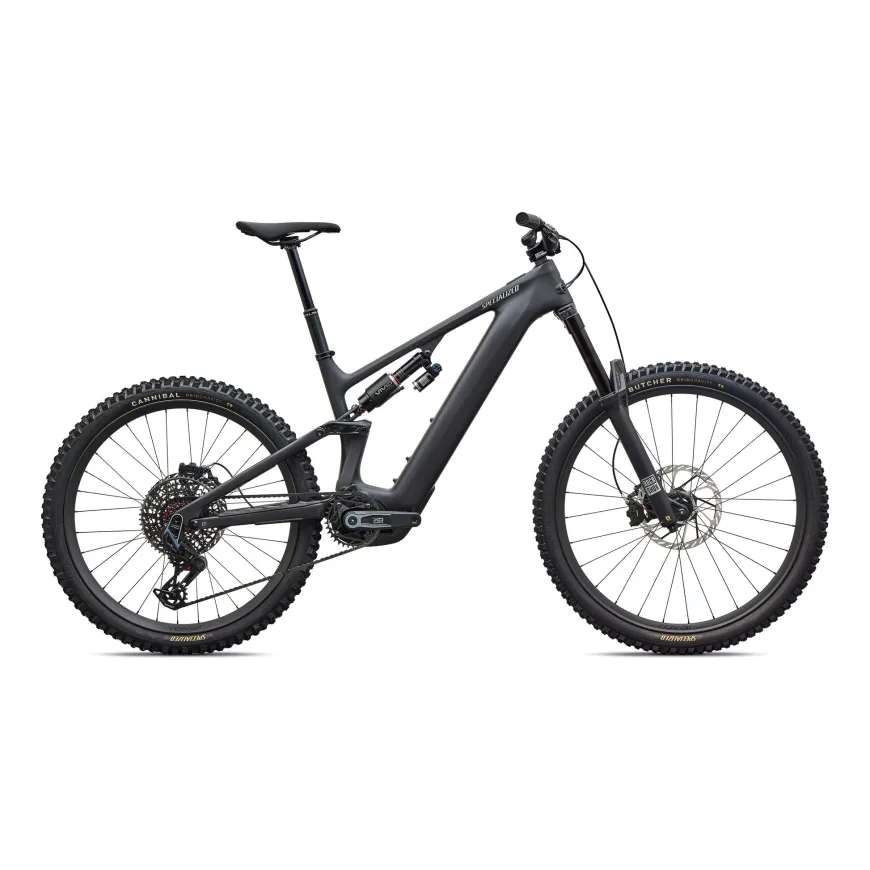

Levo 4 EVO Pro

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

FEATURES

• Use – Electric Enduro
• E-System – Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
• Frame – Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
• Suspension – Fork: 180mm RockShox Zeb Ultimate
  Shock: Vivid Ultimate Air Linear
• Drivetrain – SRAM X0 Eagle Transmission
• Wheels – Traverse HD with DT Swiss 350 hubs

E-Bike System

• Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
• Battery: 840Wh battery

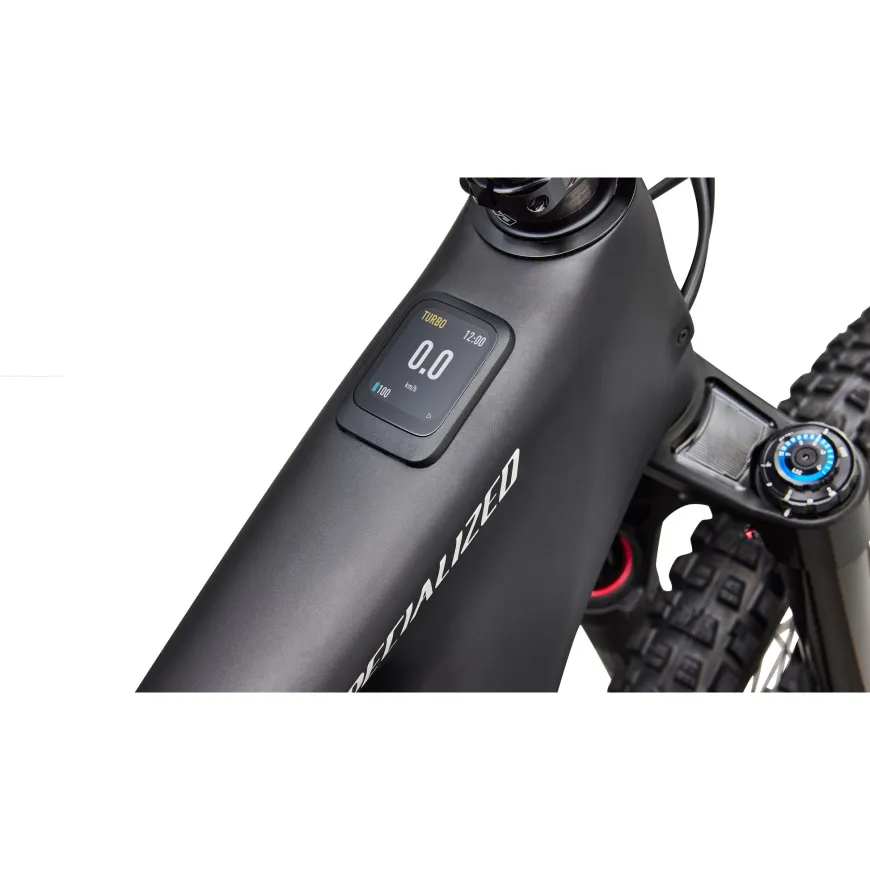

• UI/Remote: Mastermind TCU, 2.2″ high-resolution screen, Specialized app customizable, Apple Find My compatible
• Charger: Specialized 4amp charger

Frameset & Suspension

• Frame: Levo Evo FACT 11m carbon, 170mm travel, 12x148mm dropouts, SRAM UDH compatible, mixed wheel (29″/27.5″), adjustable head tube angle and chainstay length, integrated SWAT storage
• Fork: SRAM FS ZEB Ultimate, 180mm travel, 29″, Linear XL spring with ButterCups, adjustable bottom out, Charger 3.2 damper (HSC/LSC), rebound adjust

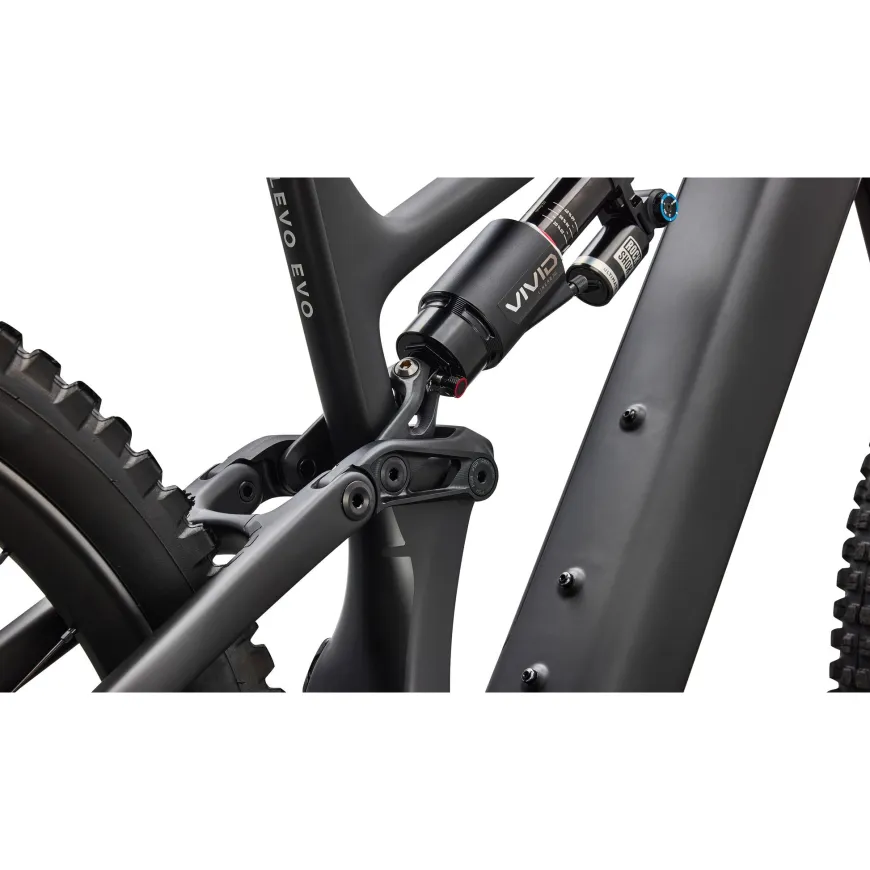

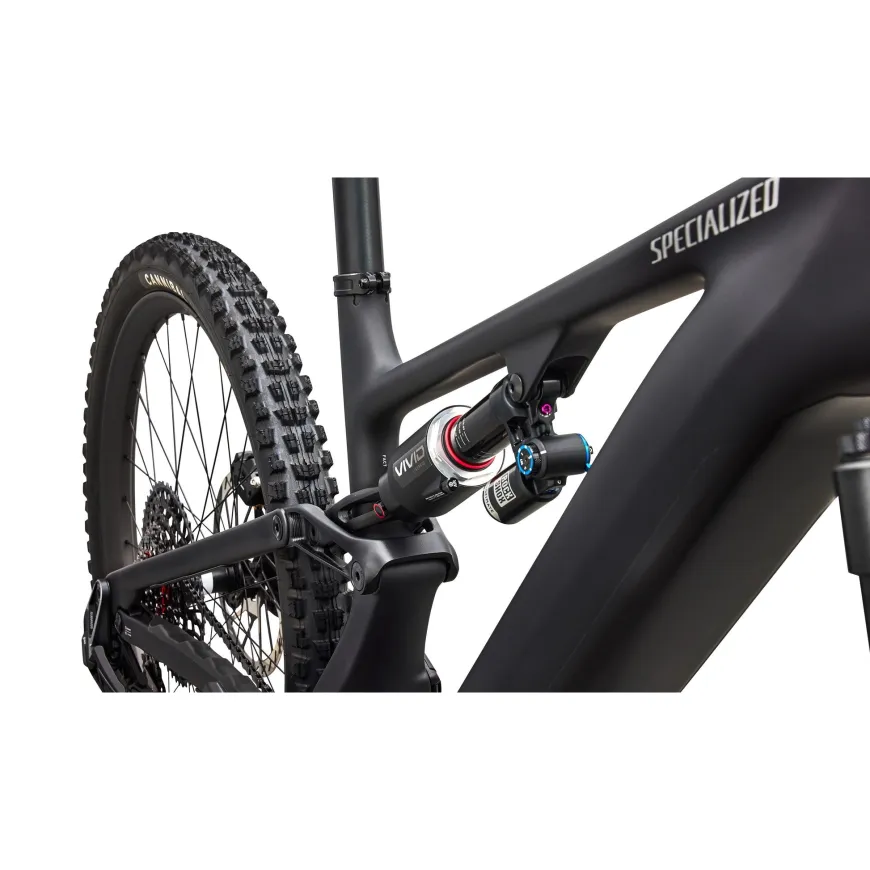

• Rear Shock: Vivid Ultimate air, 230×62.5mm, Linear XL spring, RCT2 damper (HSC/LSC), HBO adjust, rebound adjust
• Seat Binder: Alloy, 38.6mm

Drivetrain & Brakes

• Rear Derailleur: SRAM X0 Eagle Transmission
• Shift Levers: SRAM AXS Pod Controller w/ discrete clamp
• Cassette: SRAM XS 1295, 12-speed, 10-52t
• Chain: SRAM X0 Eagle Transmission 12-Speed Flattop

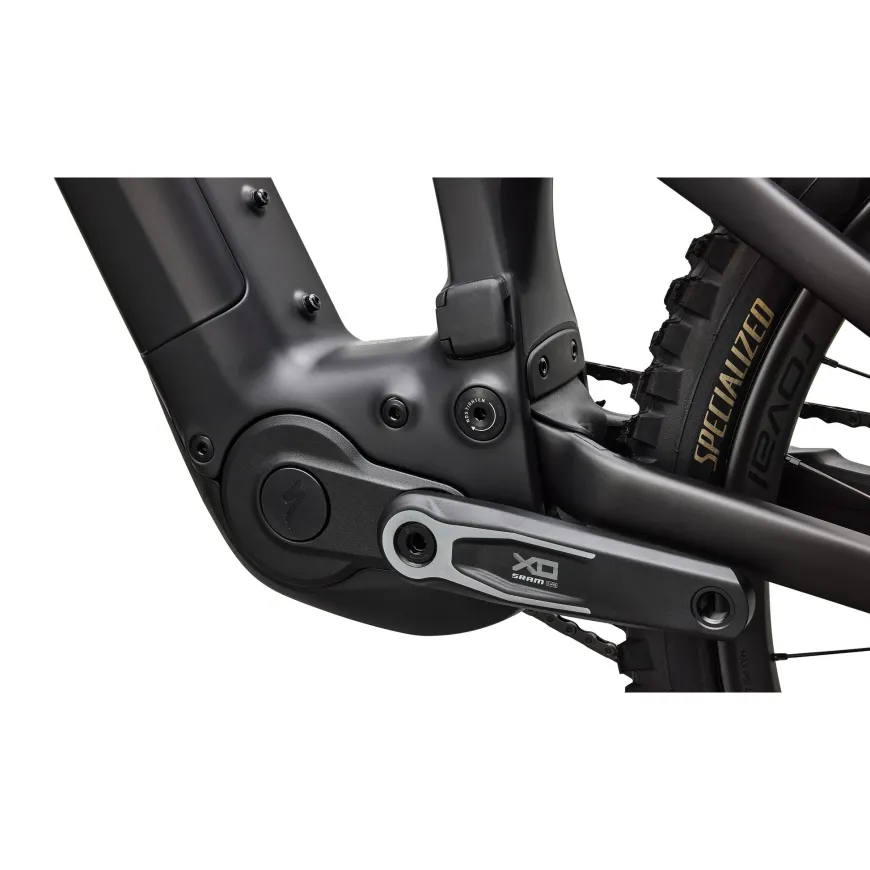

• Crankset: SRAM X0 Alloy crank, ISIS interface, 155mm length
• Chainrings: SRAM 34t T-Type, 104 BCD, steel
• Brakes: SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotors [Front and Rear]

Wheels & Tires

• Front Wheel: Traverse HD Carbon 29″, DT Swiss 350 hub, 30mm inner width, 28h
• Rear Wheel: Traverse HD 350, 27.5″, carbon rim, 30mm inner width, DT Swiss 350 hub, 12x148mm, 32h
• Front Tire: Butcher, GRID Gravity, T9, TLR, 29×2.4″
• Rear Tire: Cannibal GRID Gravity, T9, TLR Downhill Tire, 27.5×2.4″
• Inner Tubes: Standard, Presta Valve

Cockpit

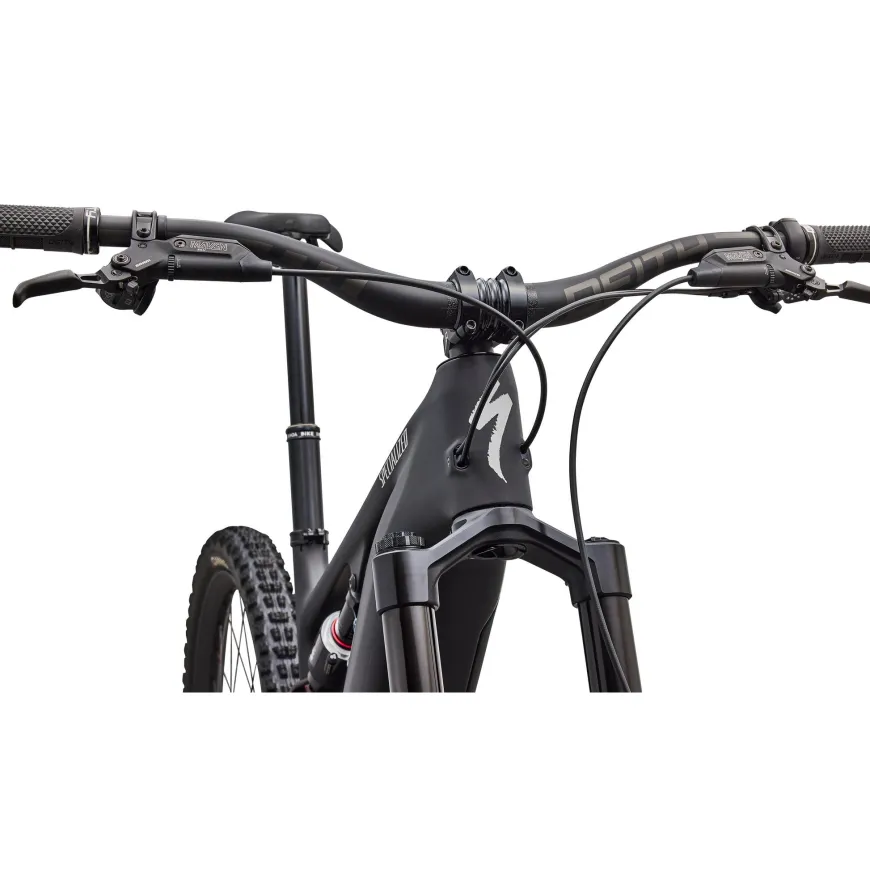

• Handlebars: Deity Speedway Carbon, 35mm diameter, 5° upsweep, 9° backsweep (S1-S2: 810mm width/30mm rise, S3-S6: 810mm width/50mm rise)
• Stem: Deity, 35mm clamp, 42mm length
• Grips: Deity Lockjaw, Lock On, 32mm OD, 133mm length
• Saddle: Bridge Expert with MIMIC, Hollow Ti rails
• SeatPost: Bike Yoke Revive Max 3.0, 34.9mm (S2: 125mm, S3: 160mm, S4: 185mm, S5/S6: 213mm)

Product Details

• Weight: 24.4 kg (53 lb, 12.7 oz) – Measured in size S4
• Accessories: SWAT Internal downtube storage
• Product ID: 294785
• Compliance: Certified to UL 2849 (e-system) and/or UL 2271 (battery)
