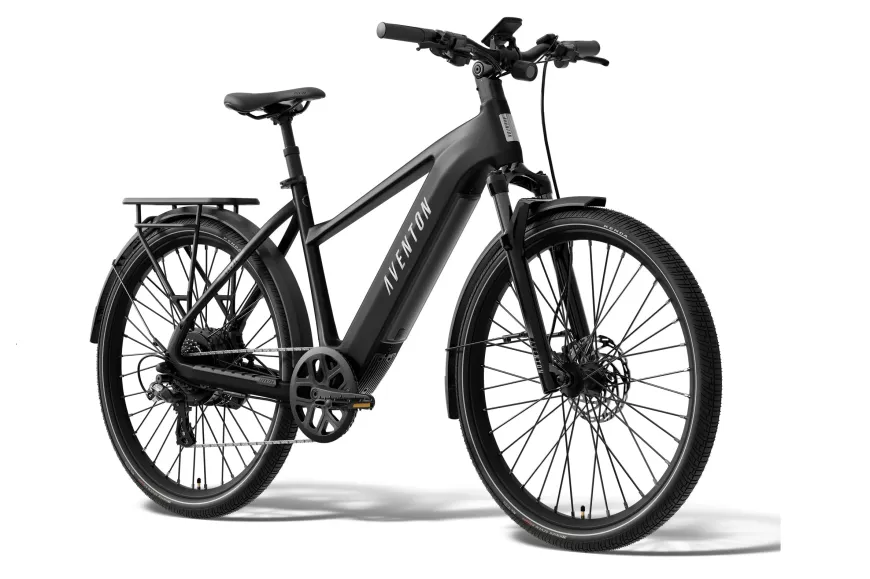

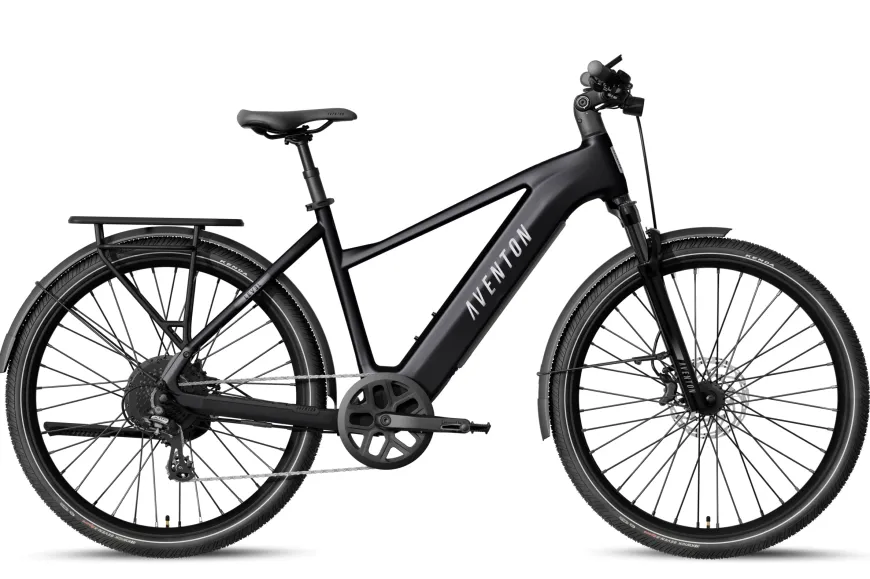

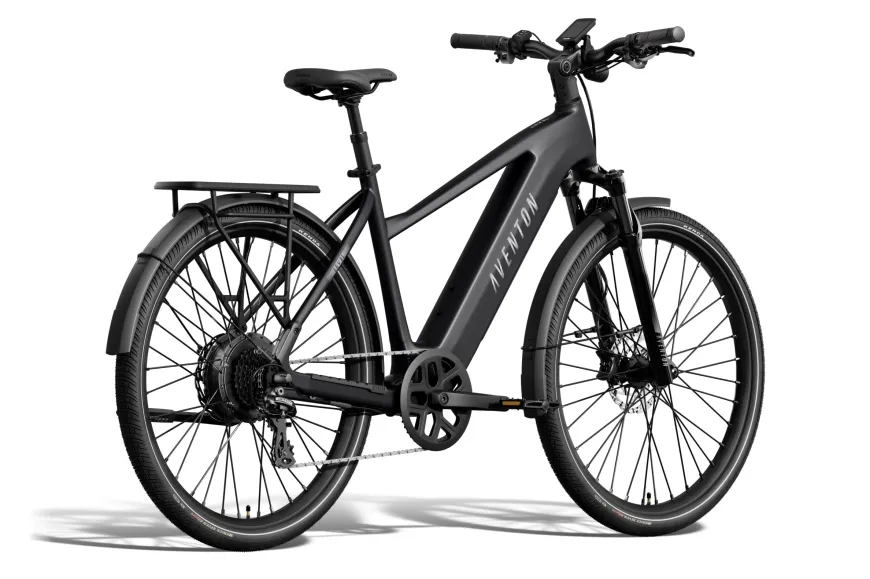

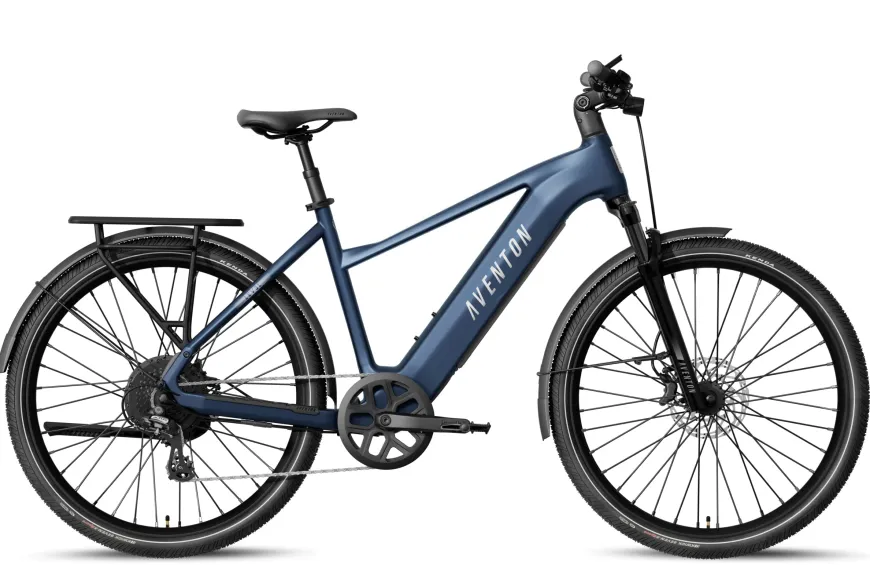

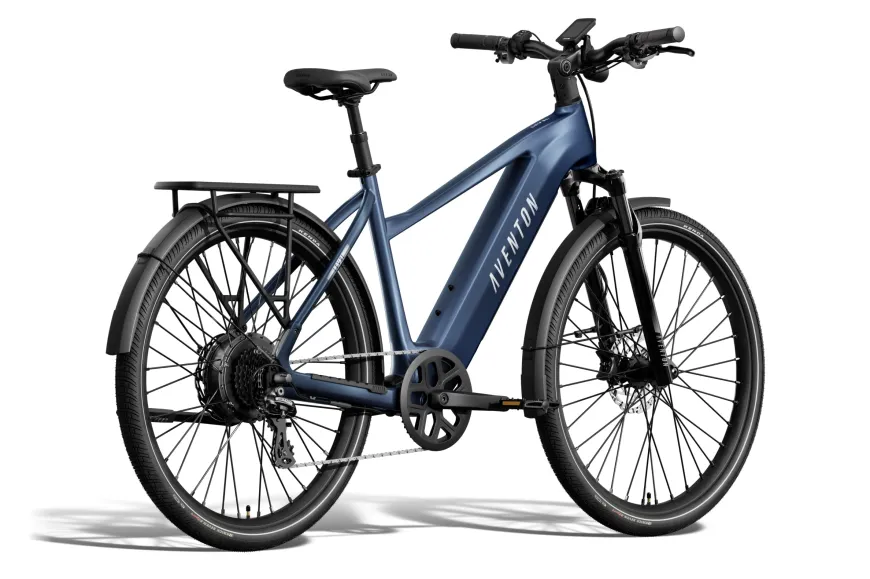

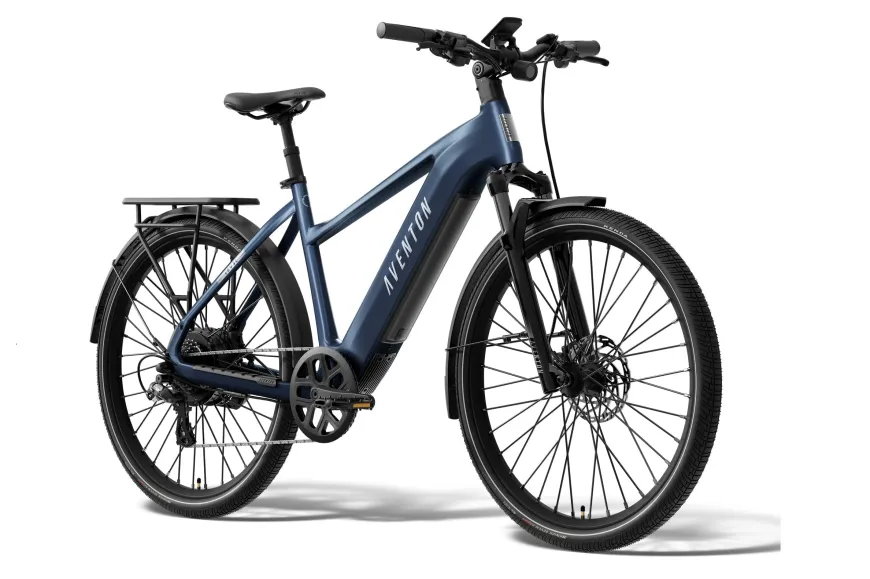

Level 4 REC Ebike

Confident commuting meets cutting edge technology, powered by a 750W hub-drive motor.

The Level 4 REC continues Aventon’s legacy as the go-to choice for dependable, accessible commuting. Built around a powerful 750W hub motor and offering an impressive 75 miles of range, it provides consistent, all-weather transportation you can count on.

Designed for riders who prioritize everyday utility and simplicity, the REC delivers:

• Confident Performance: Strong acceleration for navigating city traffic paired with comfortable suspension to smooth out longer rides.
• Intuitive Security: Integrated smart connectivity and an activity detection alarm for total peace of mind.
• Practical Versatility: A perfect blend of power and affordability, featuring integrated racks and fenders for immediate road-readiness.

Whether you’re heading to the office or running weekend errands, the Level 4 REC is the ultimate “just works” ebike, balancing comfort and capability for a hassle-free ride every time.

Physical Specifications

• Weight: 68.5 lbs
• Total Weight Limit: 300 lbs
• Rider Height:Regular: 4’11” – 5’7″Large: 5’7″ – 6’1″

Performance & Protection

• Ebike Class: Class 2 (Convertible to Class 3)
• Water Resistance: Bike: IPX5 | Components: IPX6
• Range: Up to 75 Miles

Safety Certifications

• Safety Certifications: UL Safety Certified (UL 2849)

Frameset & Wheelset

Frameset

• Frame: 6061 Aluminum, Gravity Cast Front Triangle
• Fork: 80mm Travel, Coil Spring w/ Lockout (15x100mm thru axle, 43mm offset)
• Rear Spacing: 148mm
• Fork Spacing: 100mm

Wheelset

• Front Wheel: 27.5″ Double Wall Aluminum, 36H, 15x100mm Thru Axle
• Rear Wheel: 27.5″ Double Wall Aluminum, 750W Nutted Axle Hub Motor
• Tires: Kenda Kwick Seven-5 Sport 27.5″ x 2.2″

Ebike System

Power & Electronics

• Motor: 36V, 750W Hub Drive (1188W Peak)
• Motor Torque: 80Nm

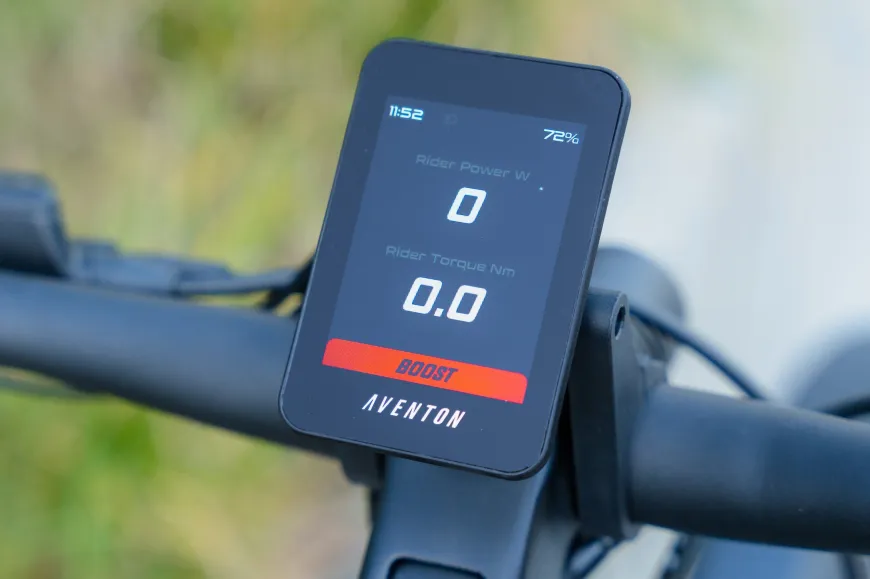

• Display: Aventon A280
• Sensors: Sensor Switch Compatible (Cadence & Torque)
• Smart Features: Regenerative Braking, Unusual Activity Detection Alarm, E-Lock, Hold Mode, BOOST Mode, Remote Notifications, and Ride Tune

Battery & Charging

• Battery: Removable Internal Lithium-ion (36V, 20Ah, 733Wh, LG 21700 cells)
• Battery Weight: 8.7 lbs
• Charger: 42V 4A charger
• Charging Time (0-100%): 5 hours
• Throttle: Included

Components

Brakes

• System: Regenerative Braking
• Front/Rear Brake: Tektro HD-E3520 w/ Cutoff
• Rotors: 180mm 6-bolt (Front & Rear)

Drivetrain

• Rear Derailleur: Shimano Altus RD-M310
• Cassette: Shimano CS-HG200-8 (8-speed, 12-32T)
• Shifter: Shimano 8-Speed Trigger
• Crankset: 165mm w/ 48T Chainring
• Bottom Bracket: Square Tapered, Sealed, Double Sided Torque Sensor
• Pedals: 9/16″ Composite Platform

Cockpit

• Saddle: Aventon Saddle
• Seatpost: 30.9mm Aventon Suspension Post (50mm travel)
• Handlebars: Aluminum 31.8mm, 680mm
• Stem: 31.8mm Clamp, 60mm Length, 90° Adjustable w/ Internal Routing
• Grips: Aventon Lock-on grips

Included Accessories

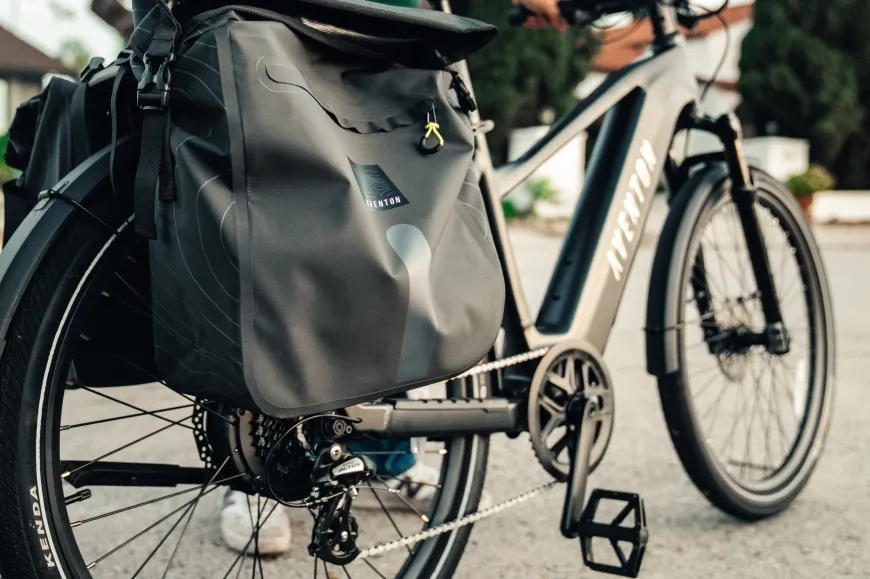

• Rear Rack: Included
• Fenders: Included
• Integrated Lights: Included (Front and Rear)
