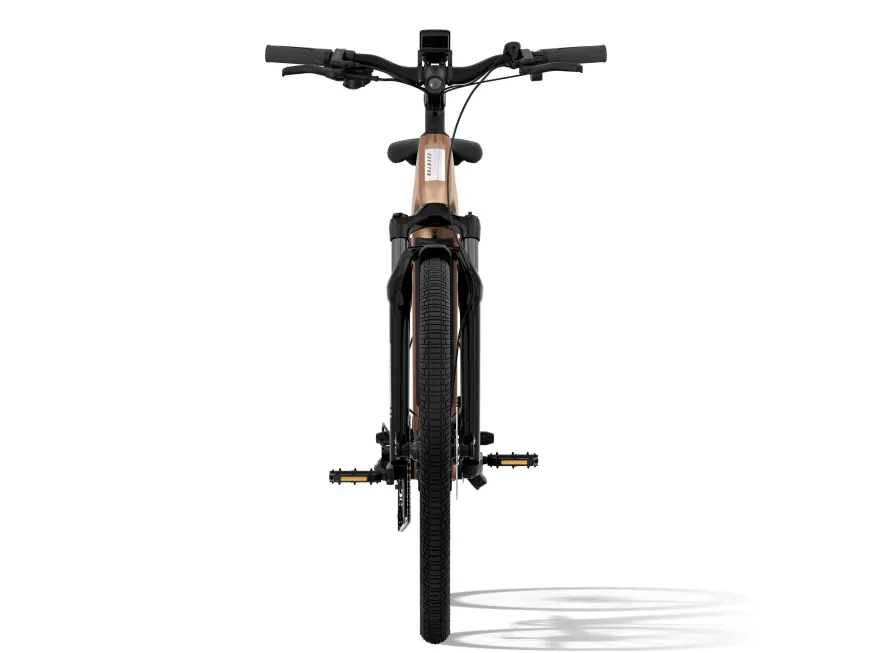

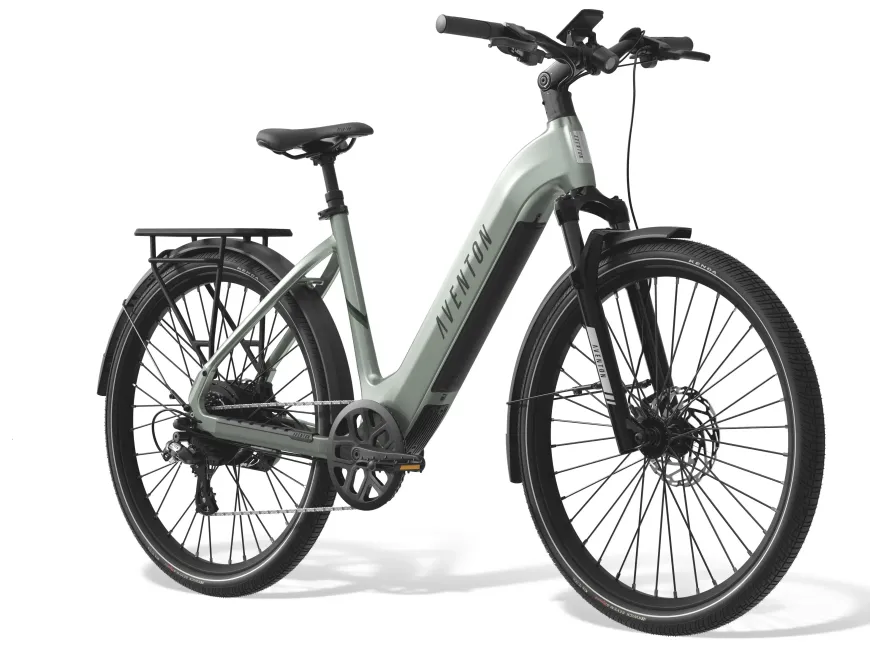

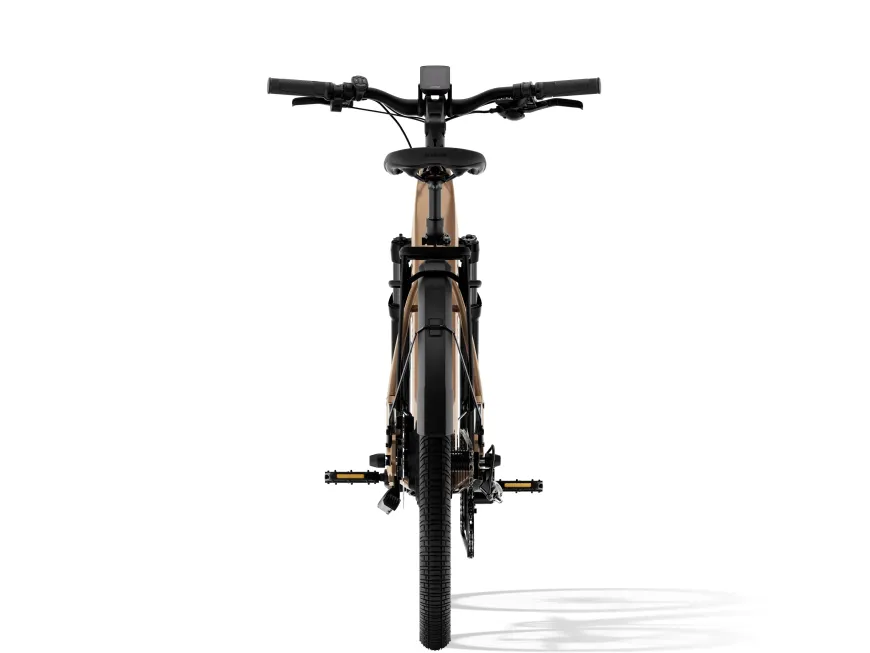

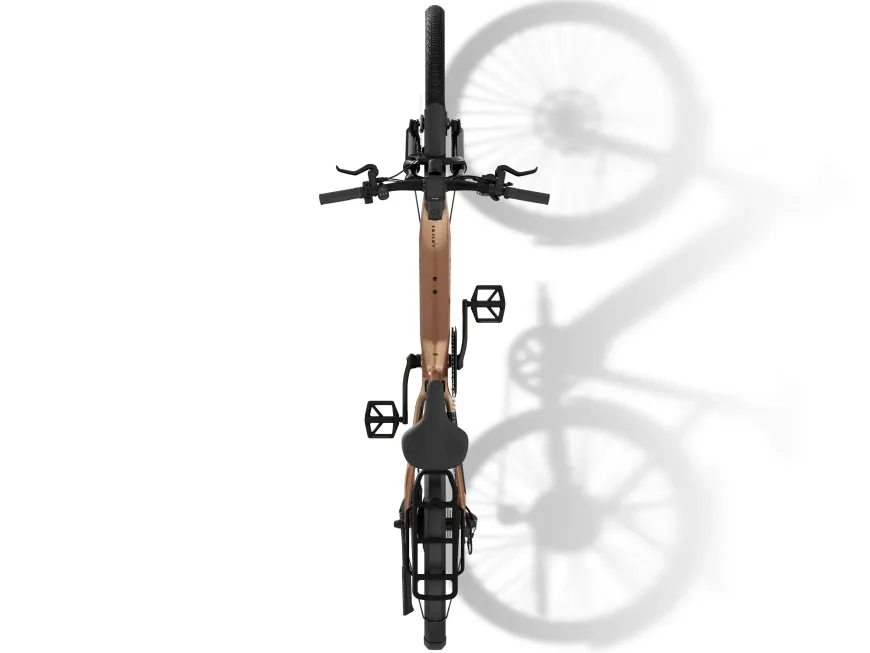

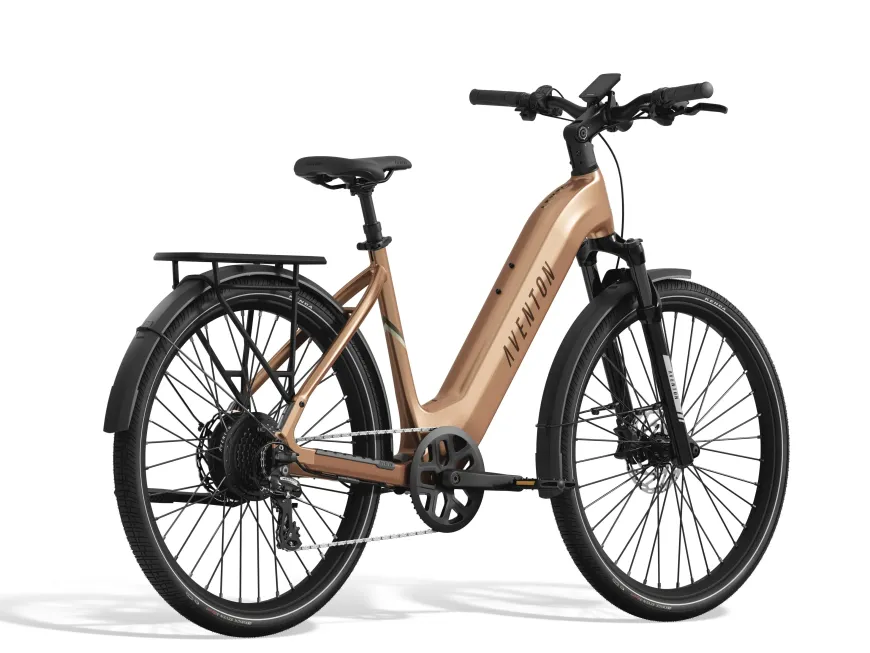

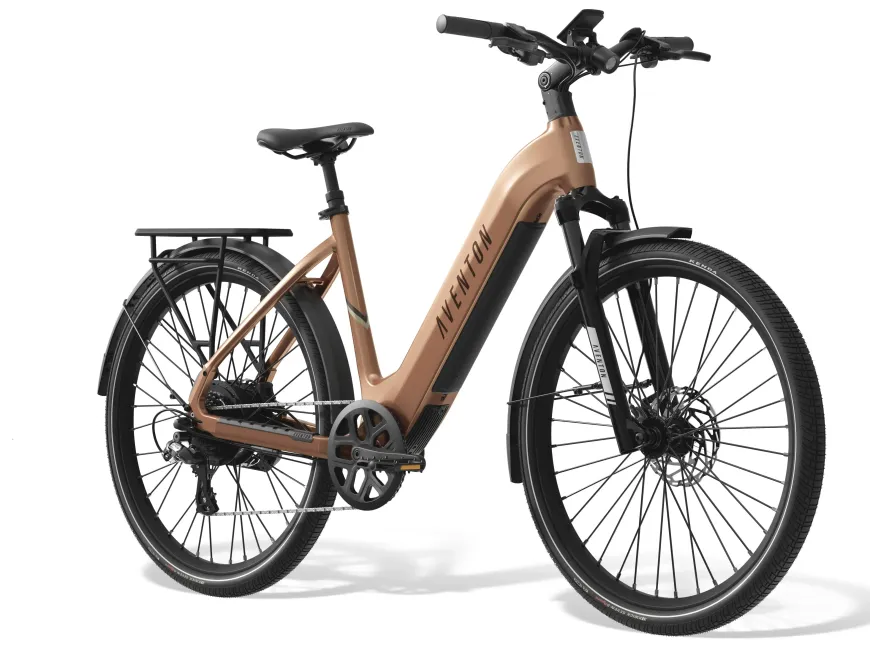

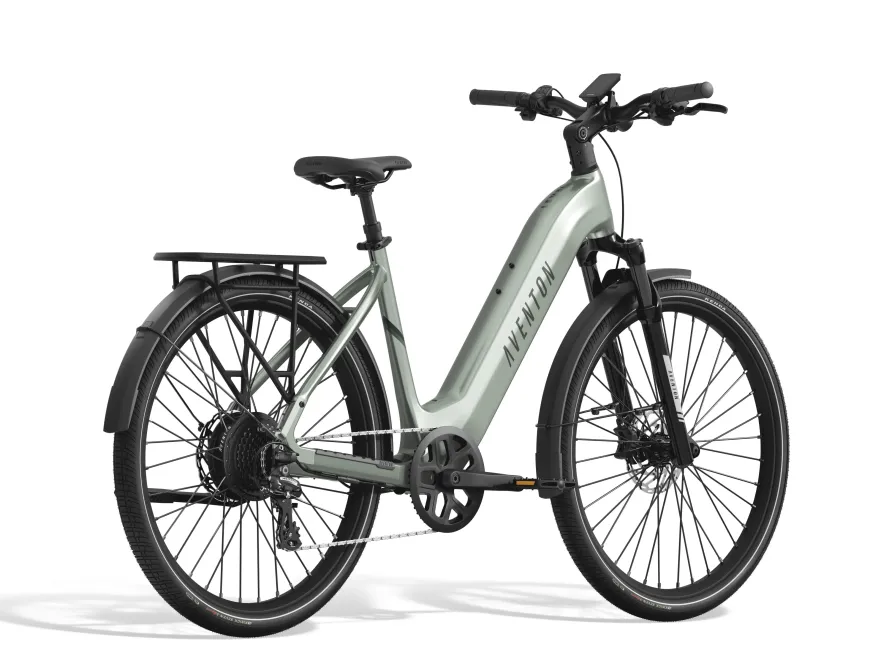

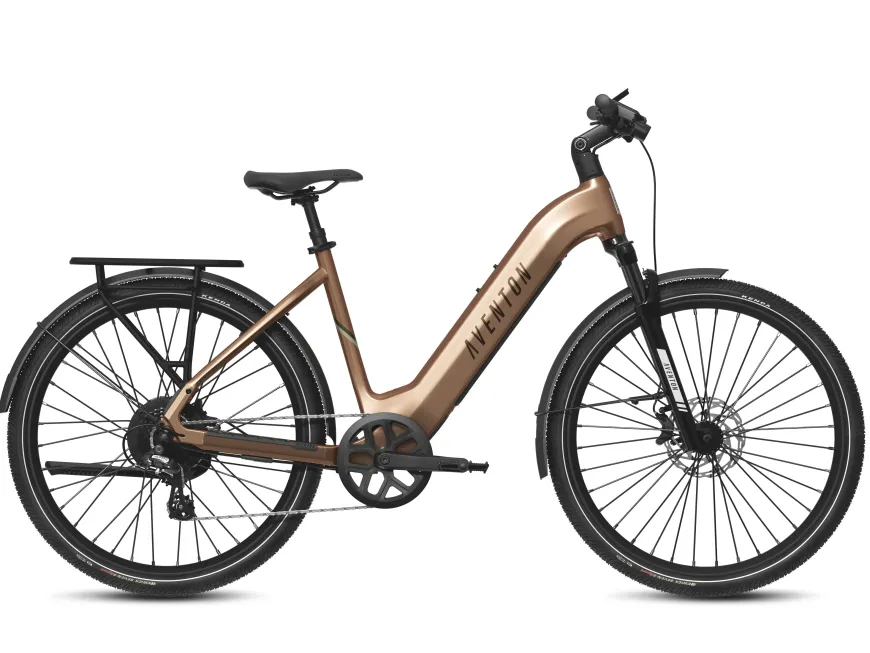

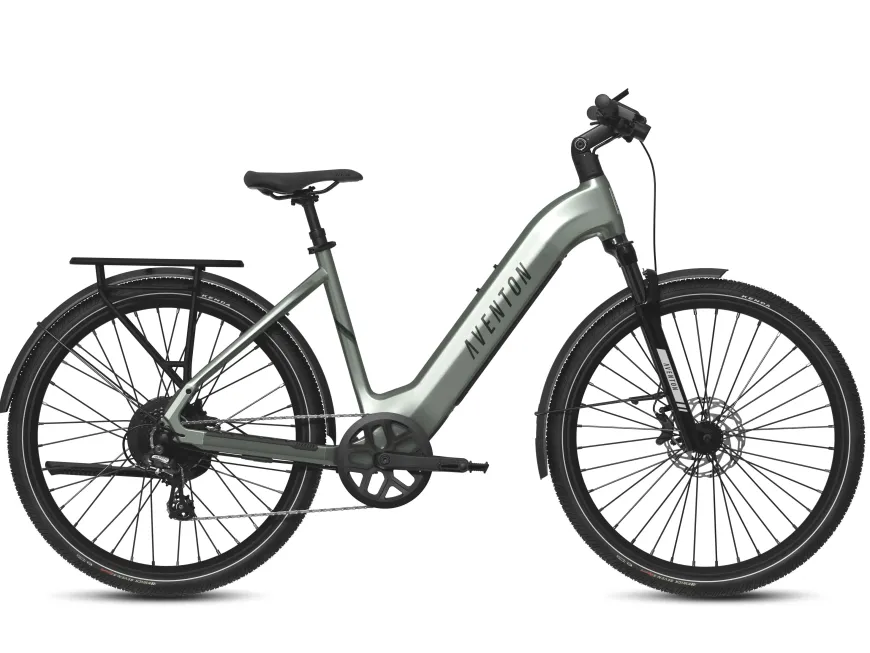

Level 3 Step Through Commuter Ebike

134,89 $

Size

Clear

SKU: SKUKQGNMI Categories: Active Bikes, Bikes, E-Bikes, Electric Active, Electric City Tag: Aventon Brand: Aventon

Turn daily drives into daily rides with this do-it-all commuter

Take your commutes to the next LEVEL. The all new Level 3 comes fully equipped with everything you need to trade your daily drives for daily rides. A rear rack and fenders ensures you can carry necessities while staying clean and dry during your rides. A front suspension fork and suspension seat post provide maximum comfort on rougher terrain. Our ACU technology provides peace of mind with GPS tracking, auto-lock, unusual movement detection, alarm system, and much more to keep your bike safe and secure. Comfortable geometry paired with an adjustable stem ensure the perfect fit, while the implementation of Ride Tune capabilities along with adjustments to Level 3’s motor power curves provide up to an additional 10 miles of range compared to its predecessor. Ditch the traffic, and elevate your daily commutes with the Level 3

Enhanced Security meets Advanced Technology

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock

Remote Lock & Geofencing

The smart remote lockingfunctionality lets you immobilize your bike right from the Aventon app. And the Geofencinfeature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control

Startup Password & Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Electronic Rear Wheel Lock

Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and rea>lize the full potential of your Level 3.

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

Pedal and Throttle Control

Five levels of pedal assist mean you’re in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!

Aventon Level 3 Commuter Ebike Specifications

General Info

Model: Level 3 Commuter Ebike
Total Weight Limit: 300 lbs
Box Size: 61″ x 13″ x 34″
Rider Height: 5’3″ – 6’4″
Class: Class 2 Ebike (Unlockable to Class 3)
Water Resistance: IPX4
Range: Up to 70 Miles

Frameset

Frame: 6061 Aluminum, Gravity Cast Front Triangle
Fork: Aventon Suspension Fork, 80mm travel, w/ lockout, coil spring, 15x100mm thru-axle, 43mm offset
Rear Spacing: 142mm
Fork Spacing: 110mm

Wheelset

Front Wheel: 27.5″, 13g, 36-hole, double-wall Aluminum, Thru-axle, Schrader Valve, black
Rear Wheel: 27.5″, 12g, 36-hole, double-wall Aluminum, Nutted Hub Drive Motor, Schrader Valve, black
Tires: Kenda Kwick Seven-5 Sport K1052-006, 27.5 x 2.20

Ebike System

Motor: 36V, 500W (sustained), 864W (peak)
Motor Torque: 60Nm
Display: Aventon BC280
Battery: Removable Internal Lithium-ion, 36V, 20Ah, 708Wh, LG 21700 cells
Battery Weight: 8.7 lbs
Controller: 36V, 24A
Throttle: Aventon LH Handlebar Mounted
Sensors: Double Sided Bottom Bracket Torque Sensor
Charger: 36V, Output: 42V / 4A
Charging Time (0%-100%): 5 hours
Lights: Integrated front and rear lights

Brakes

Front Brake: Magura AT-2 Hydraulic disc brake
Rear Brake: Magura AT-2 Hydraulic disc brake
Front Brake Rotor: Magura MDR-A 180mm, 6 Bolt Rotor
Rear Brake Rotor: Magura MDR-A 180mm, 6 Bolt Rotor

Drivetrain

Rear Derailleur: Shimano Altus RD-M310
Shifter: Shimano 8-Speed Trigger SL-M315-8R
Chain: 7/8 Speed, 120L
Cassette: Shimano CS HG200-8, 12-32T, 8-Speed
Chainring: 48T
Chainring BCD: 104
Crankset: 3pc, 170mm crank arm
Bottom Bracket: Square Taper, Sealed, Double Sided Torque Sensor, 83mm x 158.5mm
Pedals: 9/16″ Composite Platform

Cockpit

Saddle: Aventon Saddle
Seatpost: 30.9mm Aventon Suspension Seatpost with 50mm travel
Seatpost Clamp: 34.9mm
Handlebars: Aluminum 31.8mm, 680mm
Grips: Aventon Lock-on grips
Headset: Sealed Bearing Headset

Included Accessories

Fenders: Included
Rear Rack: Included
Rear Rack Weight Limit: 60 lbs

Technical Overview

The Level 3 comes pre-configured as a Class 2 ebike with pedal assist and throttle. It can be unlocked to a Class 3 ebike. The throttle can also be unplugged and removed to comply with areas where only Class 1 ebikes are allowed.
