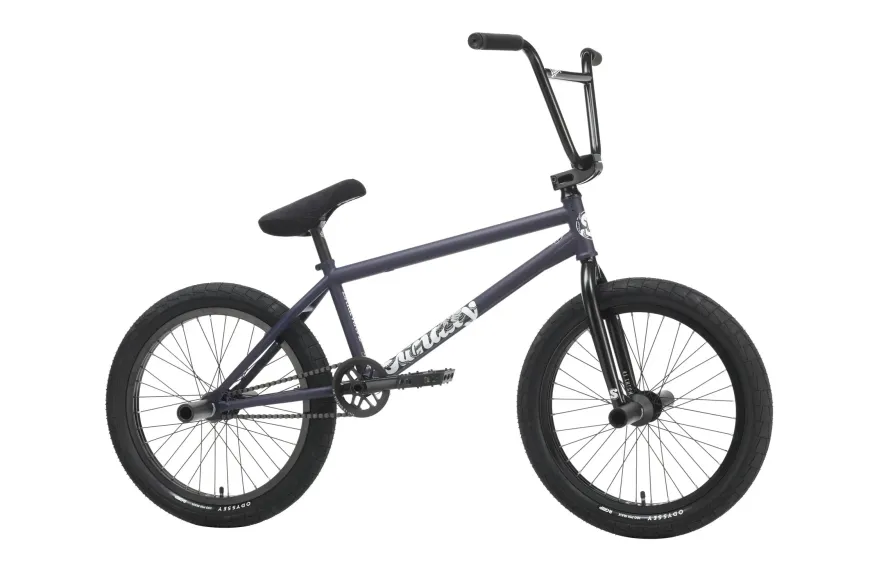

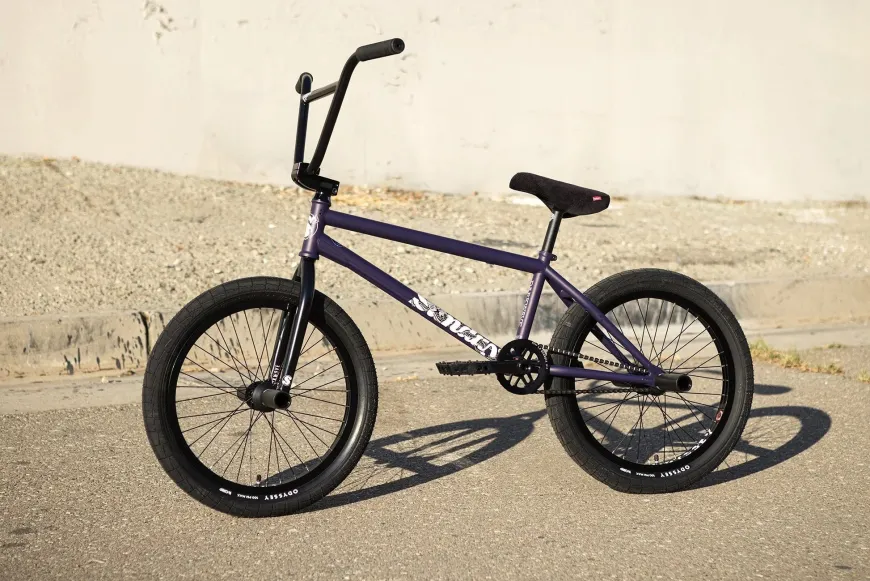

Darkwave – Broc Raiford Authentic (Matte Midnight Purple with 21″ tt in RHD or 21.25″ tt in LHD)

This is the Broc Raiford Darkwave Authentic.

This model is 100% aftermarket parts and exactly what Broc rides, all the way down to his signature Odyssey and Sunday products, left hand drive setup and top tube size.

Key Features

• 100% Aftermarket Parts Kit
• Lifetime Warranty on Bars, Forks, and Cranks
• SundayDarkwave Frame
• Sunday Darkwave 41-Thermal Forks
• OdysseyBROC41-Thermal Bars
• Odyssey Thunderbolt 41-Thermal Cranks
• Odyssey Broc v2 Stem
• Odyssey Clutch Pro Freecoaster
• Odyssey Vandero Pro Front Hub
• Odyssey Hazard Lite Rims
• Odyssey Broc Tires with R-Grip

Specifications

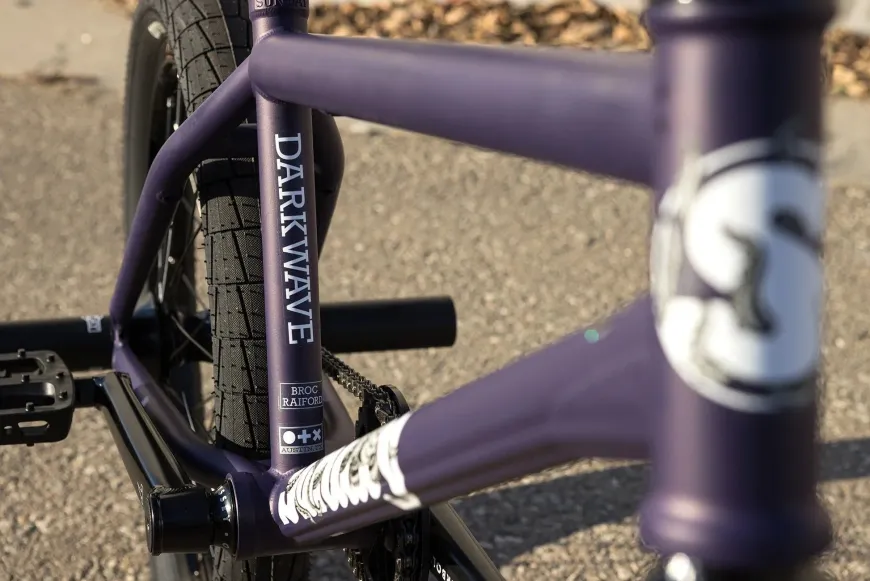

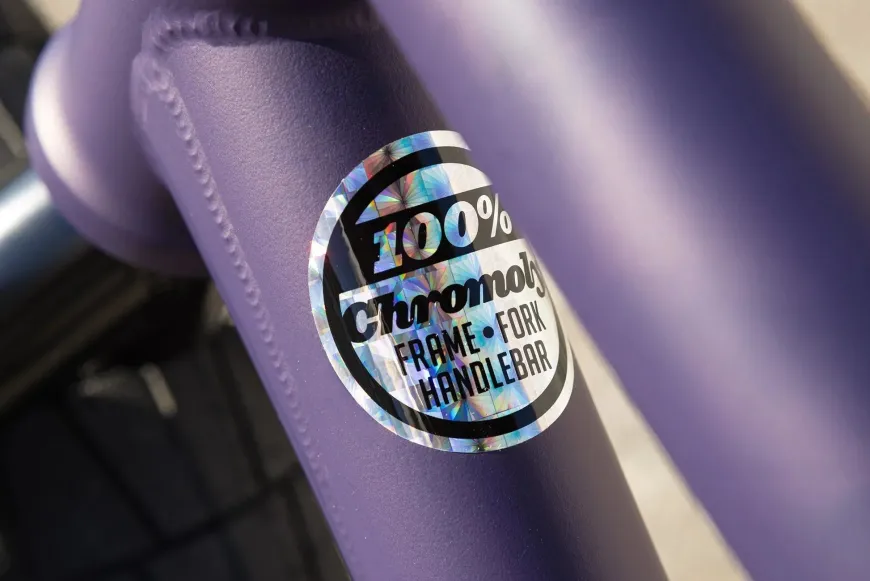

Frame:Sunday Darkwave, 21″ (RHD) or 21.25″ (LHD), 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork:Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset

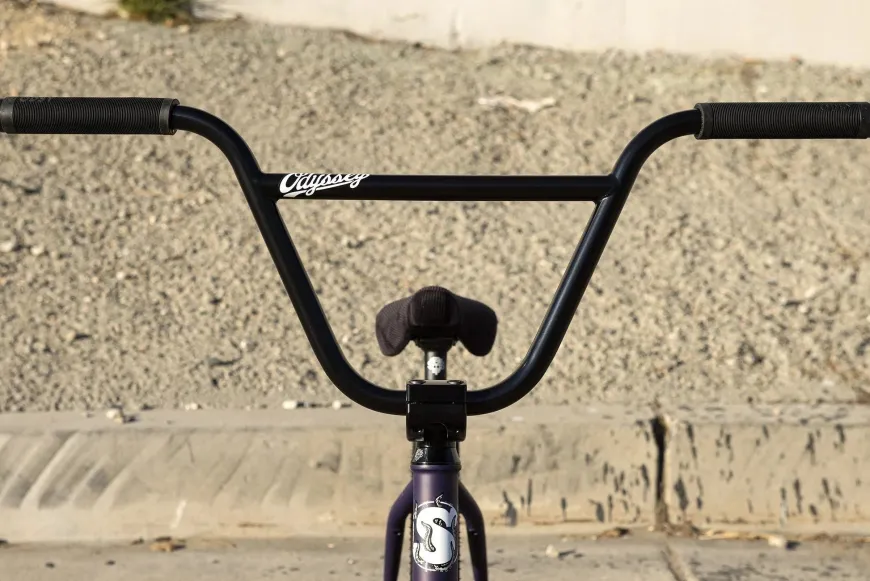

Handlebar:OdysseyBROC Bar, 41-Thermal, aftermarket bar

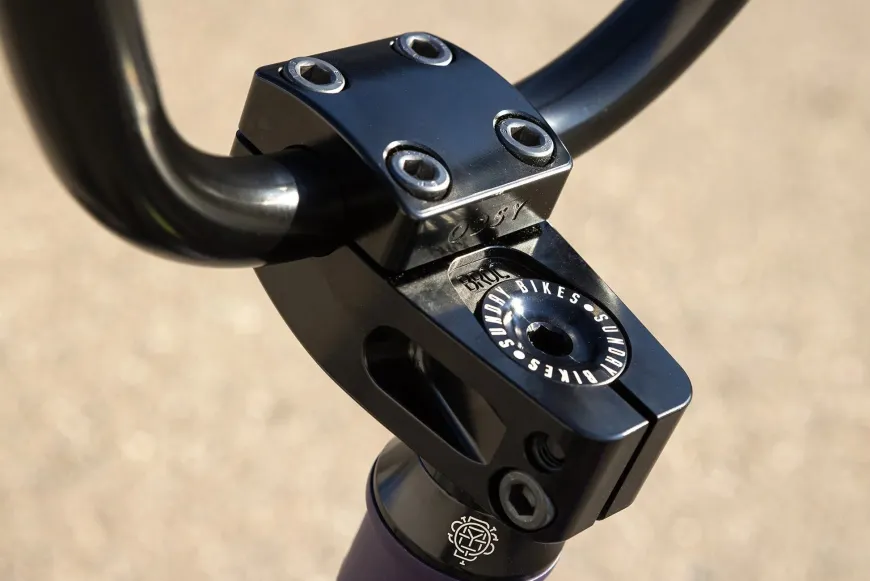

Stem:Odyssey BROC v2 Stem, 50mm

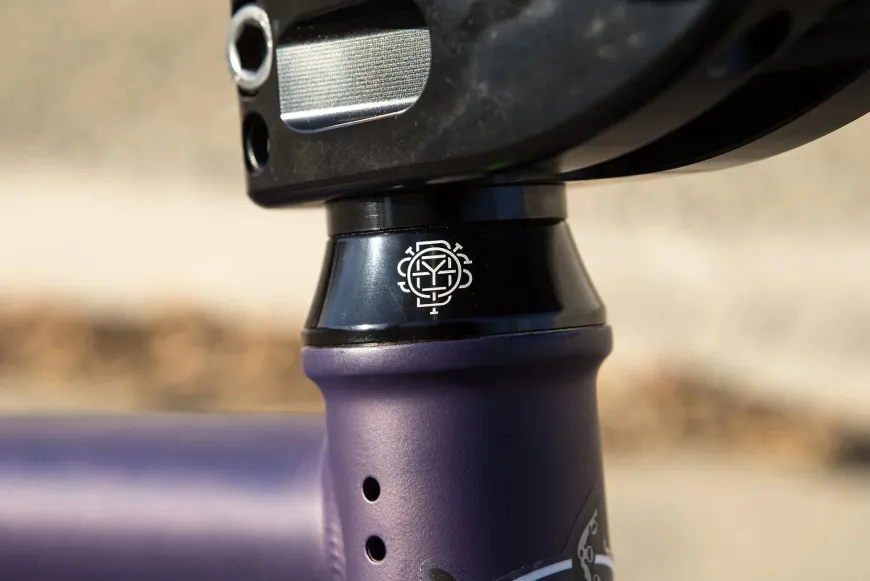

Headset: Odyssey Pro Conical, 1-1/8″
HeadsetCap: Sunday aftermarket, aluminum
Brake Lever:Odyssey Springfield
Brakes:Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic

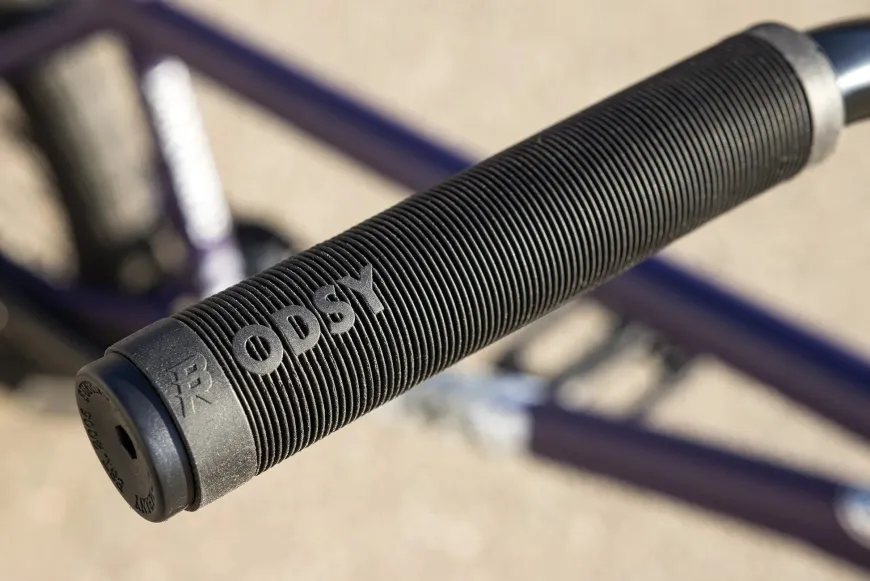

Grips:Odyssey Broc Raiford

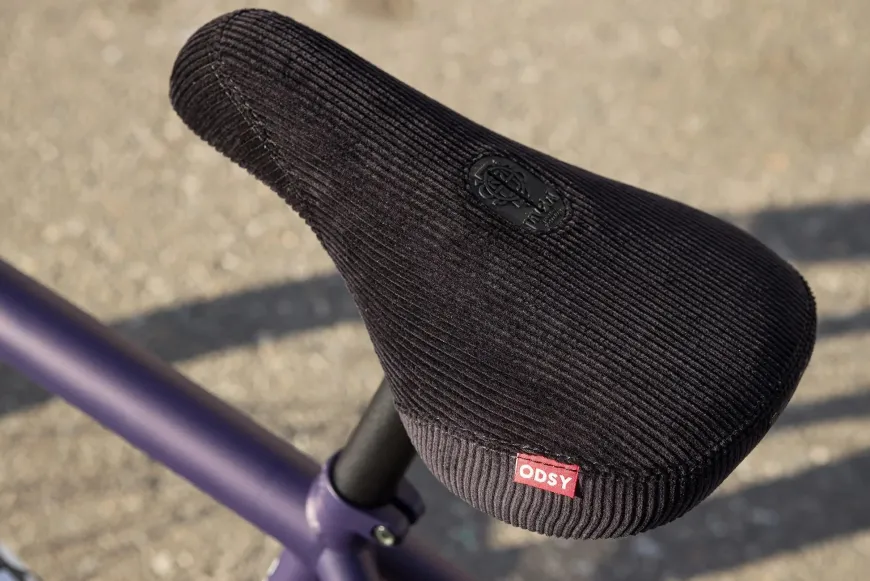

Seat:Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seatpost: OdysseyPivotal
Seat Clamp:Integrated

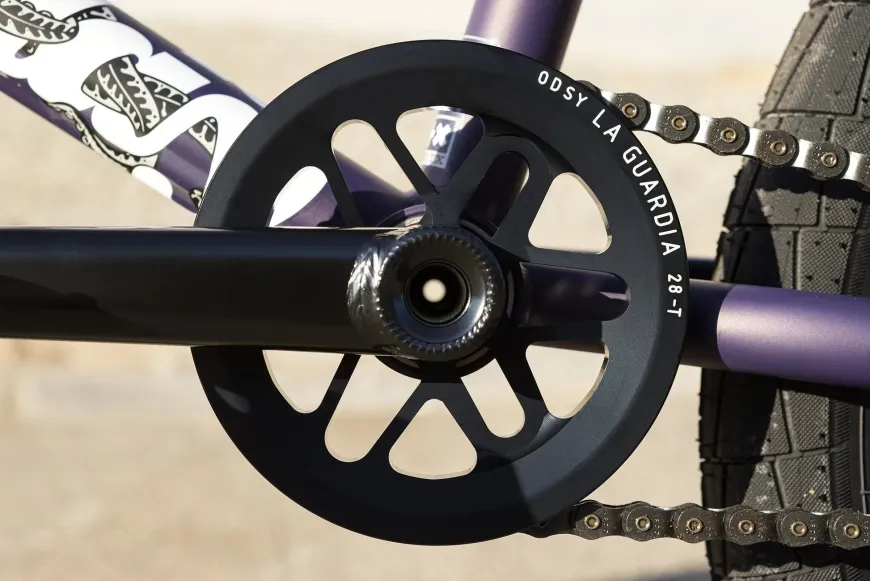

Sprocket:Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal
BB Parts:Odyssey Sealed, Mid, 22mm

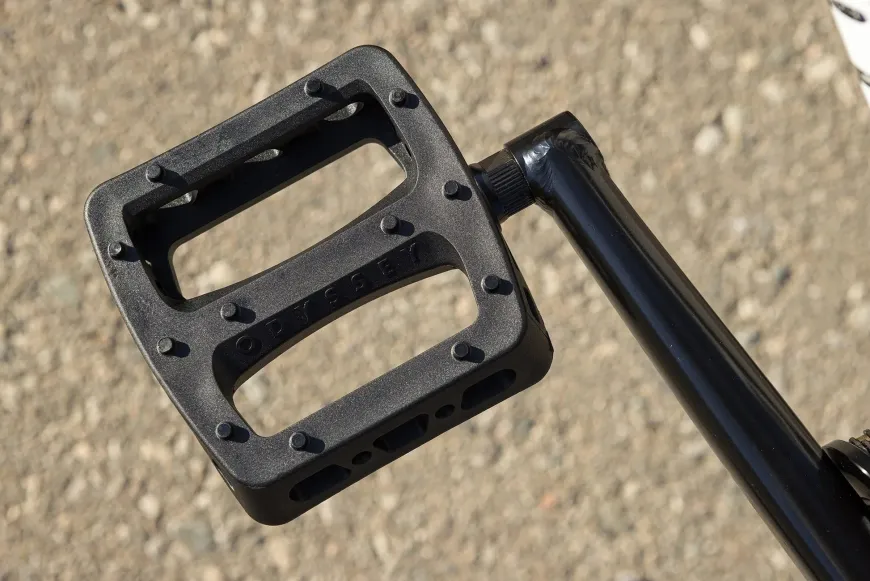

Pedals:Odyssey Twisted PC Pro
Rims:Odyssey Hazard Lite, 20″, 36H

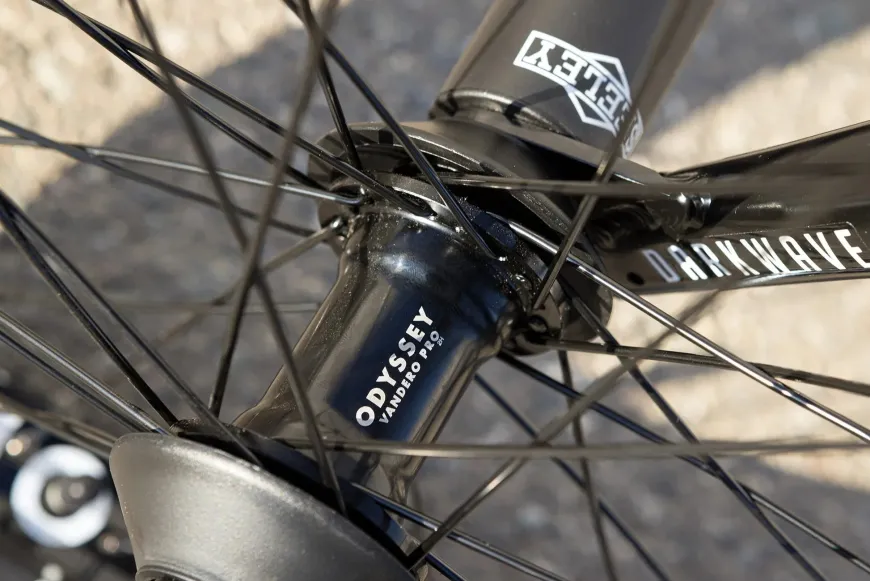

Front Hub:Odyssey Vandero Pro, 36H, sealed, 3/8″ female axle, 2 plastic guards

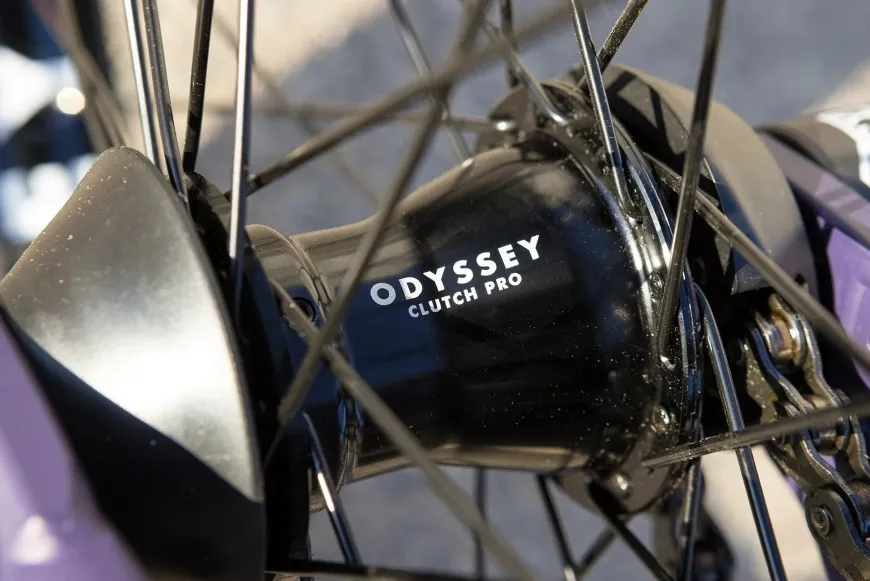

Rear Hub: Odyssey Clutch Pro freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, drive + non-drive side plastic guard
Spokes:14g steel, black

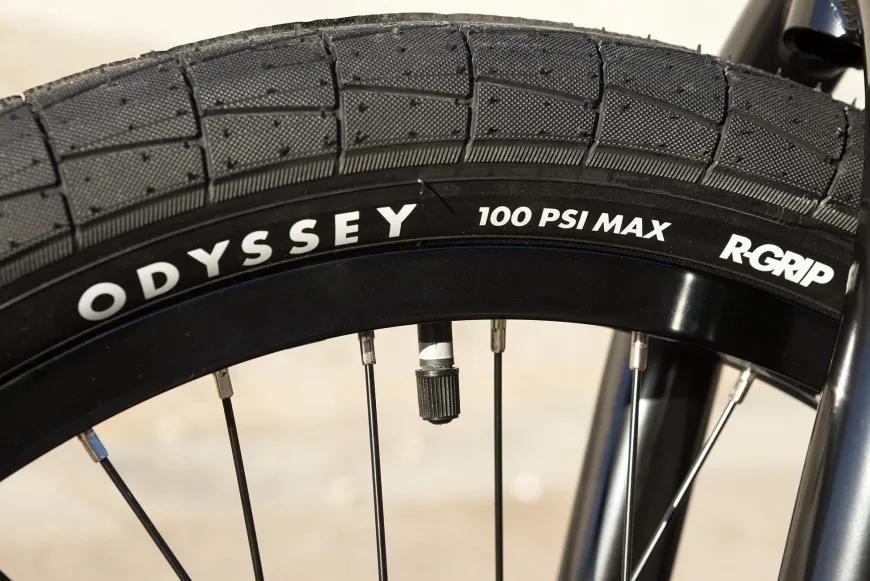

Tires:Odyssey Broc Tire, 20 x 2.4″ (F & R)
Chain: Odyssey Bluebird Half-Link
Pegs:Sunday Seeley Peg 4.75″ (x4)
Approx. Weight: 24.97lbs (brakeless)

Frame Geometry

Top Tube Length: 21″ (RHD) or 21.25″ (LHD)
Head Tube Angle:75.25°
Seat Tube Angle:71°
Chainstay Length:13.25″-13.5”
Bottom Bracket Height:11.75″
Standover:9.25”

Handlebar Geometry

Rise:9.8″
Width:29″
Backsweep:10°
Upsweep:2°
