Revolt Advanced 1

130,89 $

Size

Clear

SKU: SKUGJTDIK Categories: Bikes, Gravel & Adventure, Road Bikes Tag: Giant Brand: Giant

Rough roads, gravel or dirt. However you choose to roll, this bike does it all. The lightweight, smooth-riding composite frameset and adjustable wheelbase make it more capable than ever.

Fast and light

Advanced composite frame and fork save more than 160g compared to the previous model. Updated geometry includes a lower bottom bracket, longer reach and steeper head tube angle for improved acceleration and climbing.

Tuned compliance

Dropped seatstays with thin tubing absorbs road shocks and vibrations. D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can also choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Frameset & Suspension

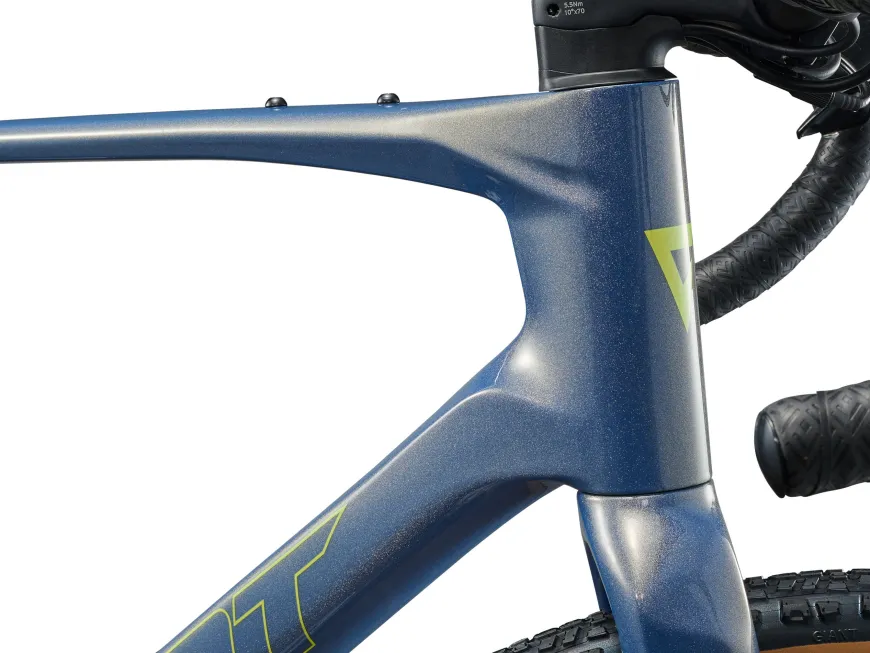

Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage

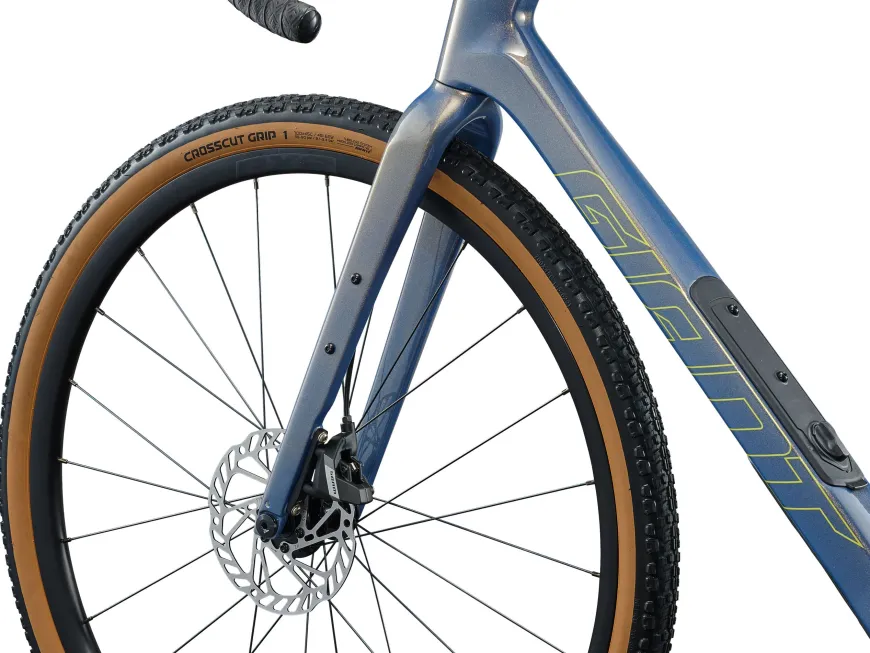

Fork: Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc

Brakes & Drivetrain

Brakes: SRAM Apex hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers: SRAM Apex 1, left lever dropper switch
Shifters: SRAM Apex 1, 1×12
Front Derailleur: N/A
Rear Derailleur: SRAM Apex XPLR
Cassette: SRAM PG-1231, 12-speed, 11×44
Chain: SRAM Apex D1

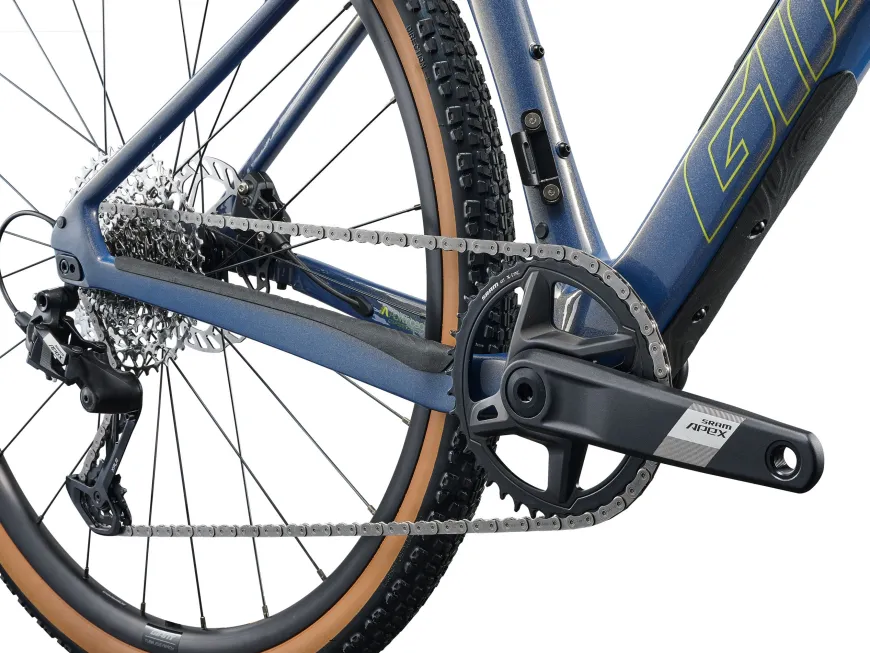

Crankset: SRAM Apex 1 Wide DUB, 40t (XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm)
Bottom Bracket: SRAM DUB, press fit

Wheels & Tires

Rims: Giant P-X2, alloy
Hubs: Giant alloy, 12mm thru-axle
Spokes: Sapim
Tires: Crosscut Grip 45c
Max Tire Clearance: 53mm

Cockpit

Stem: Giant Contact AeroLight, -10 degree (XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm)

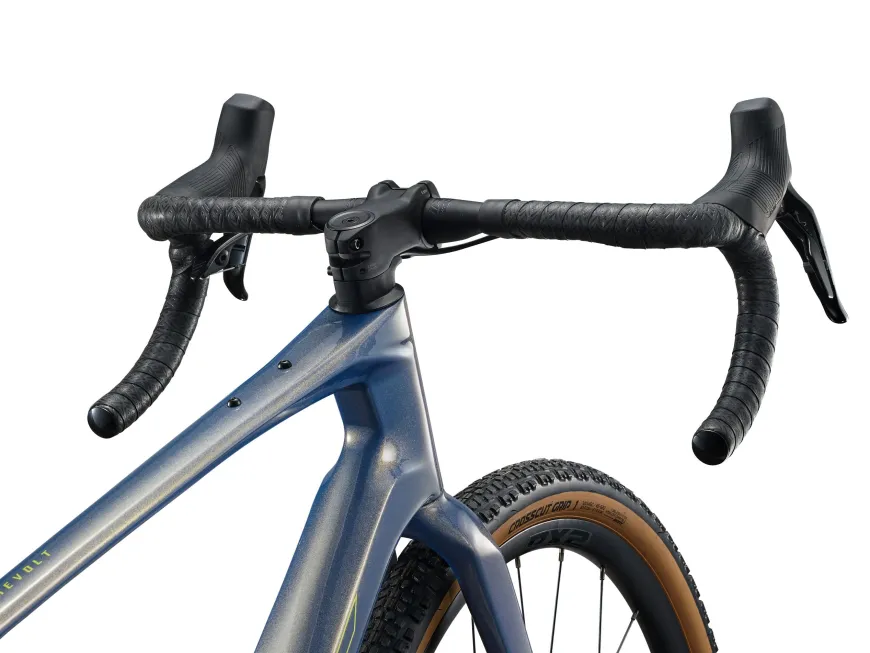

Handlebar: Giant Contact XR D-Fuse, 31.8mm (XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm)
Grips: Stratus Lite 3.0
Saddle: Giant Grit
Seatpost: Post Moderne, dropper, 30.9mm, 30mm suspension (XS:295mm, S:345mm, M:345mm, M/L:345mm, L:395mm, XL:395mm)

Product Details & Extras

Sizes: XS, S, M, M/L, L, XL
Colors: Midnight Moon
Extras: Giant 1x chain guide, tubeless prepared, 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position, in-frame storage bag

Size	L, M, ML, S, XL, XS
