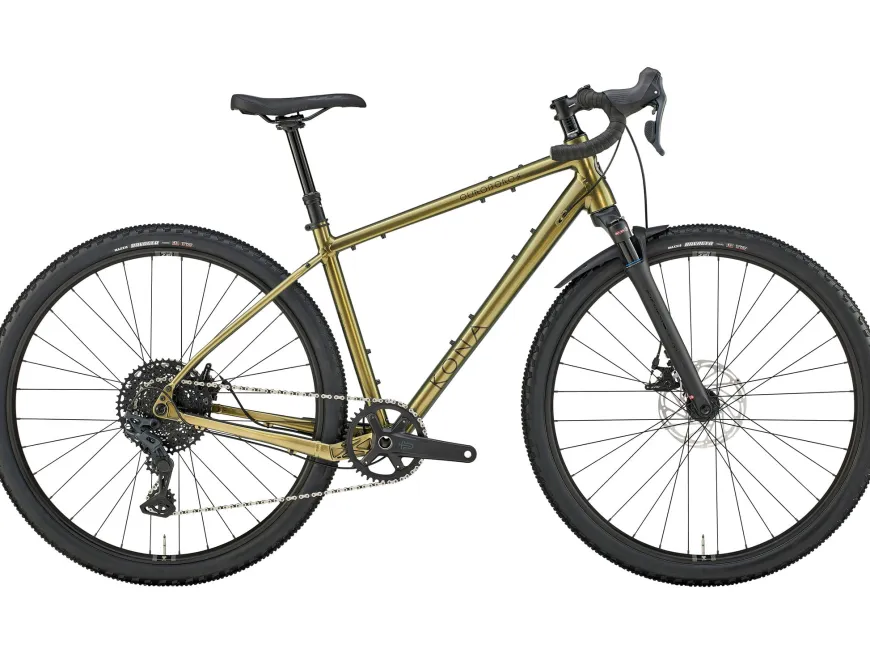

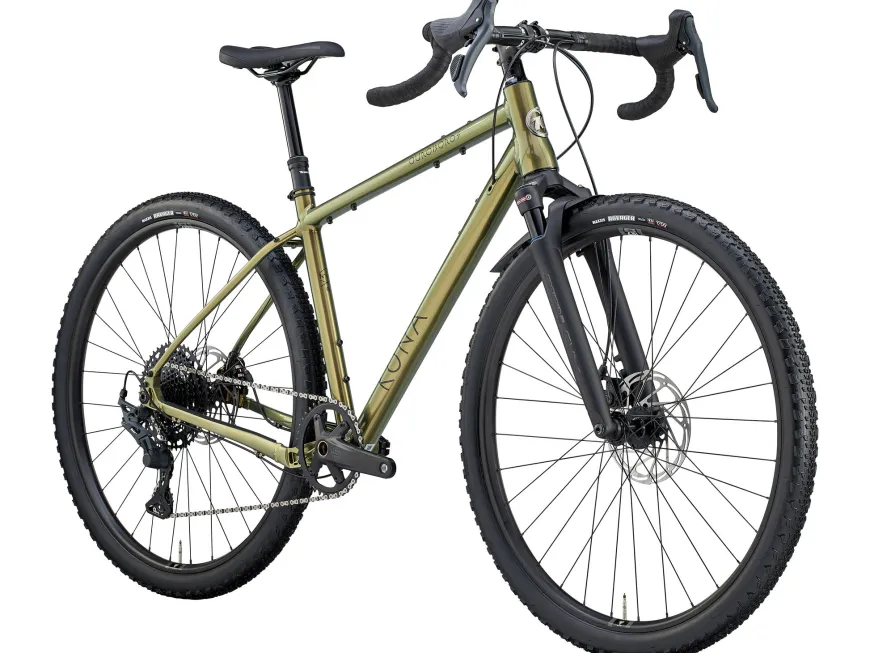

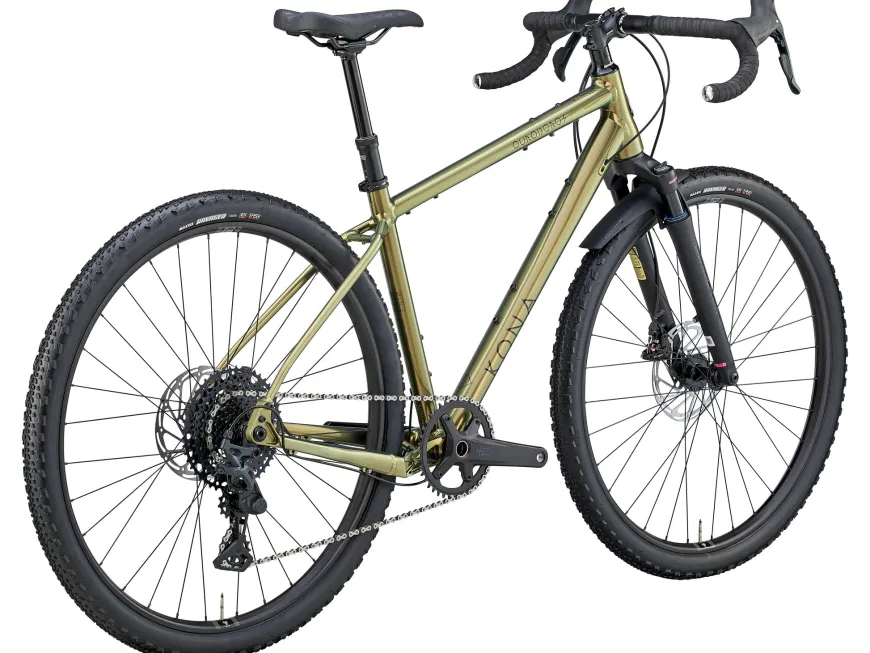

Ouroboros

Shred on, dear traveler, and let nothing hold you back.

The aluminum Ouroboros is impressively capable, with componentry that is unwavering in reliable performance. Designed with the intention to stay off the grid, escape into the wilderness – worry free. We took the best parts of our award-winning gravel bikes, and the enchanting characteristics of our iconic mountain bikes, and delivered a drop bar bike that doesn’t rip by accident.

Frameset & Suspension

• Frame Material: Kona 6061 Aluminum Butted.
• Suspension Fork: Suntour GVX32, 40mm travel, Tapered, 100x12mm.
• Sizes: 48, 50, 52, 54, 56, 58.

Drivetrain & Brakes

• Rear Derailleur: Microshift Sword Long Cage w/ Clutch.
• Shifters: Microshift Sword (Left: Dropper/Brake; Right: Brake/Shifter).
• Cassette: Microshift Sword, 11–48t (10-speed).
• Crankset: Microshift Sword with 40t narrow-wide chainring.
• Bottom Bracket: Prowheel PF86.5.
• Brake Calipers: TRP Spyre C (Mechanical Disc).
• Rotors: TRP 180mm (Front & Rear).
• Chain: KMC X10.

Wheels & Tires

• Rims: WTB ST i27 TCS 2.0.
• Front Hub: Formula 100x12mm (6-bolt).
• Rear Hub: Formula 142x12mm (6-bolt, standard road 11sp freehub).
• Tires: Maxxis Ravager EXO TR, 700x50c (Front & Rear).
• Spokes: Stainless Black, 14g.

Cockpit & Finishing

• Handlebar: Kona Gravel 20-degree flare (Widths: 440mm–520mm based on size).
• Stem: Kona Gravel 6-degree rise (Lengths: 50mm–60mm based on size).
• Seatpost: TranzX Dropper +RAD Internal, 31.6mm (125mm travel).
• Saddle: WTB Volt.
• Grips: Kona Cork Tape.
• Headset: FSA No.57B.

Product Details

• Paint Color: Gloss Metallic Turismo Olive w/ Porsche Olive Decals.
• Seat Clamp: Kona 34.9.

Note: Pedals are not included. This build features an integrated dropper post lever on the left-hand shifter for seamless control on technical descents.
