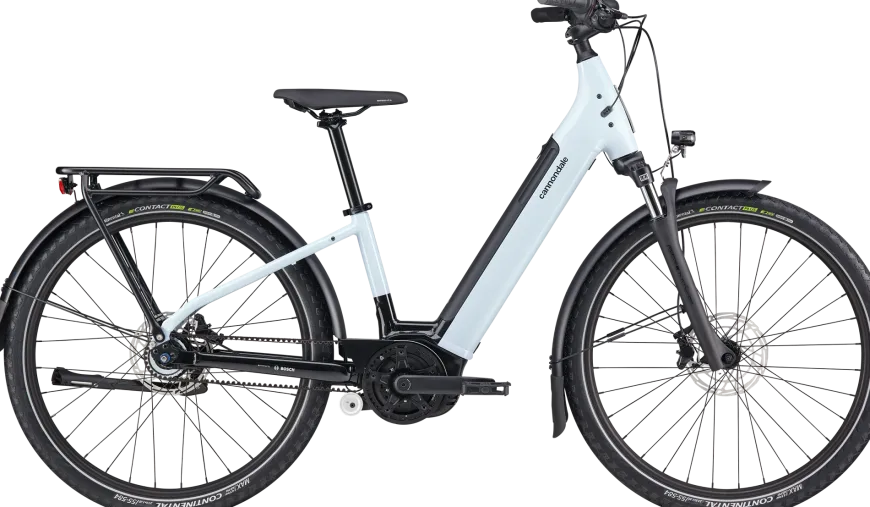

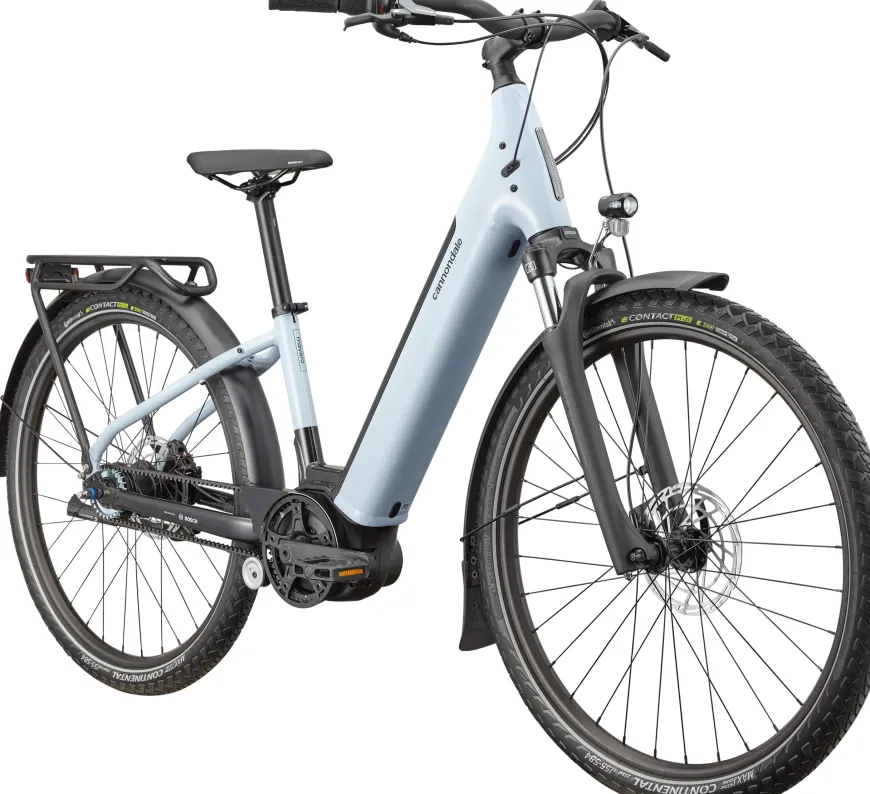

Mavaro 3 Low StepThru

Movement That Moves You

An ebike that elevates the art of getting around. Function meets pleasure. Comfort meets capability. Speed meets style. From point A to point B, or to no point in particular – it’s your best way there.

Where it thrives

Around town and beyond

What it’s built for

Comfort and Ease

E-System

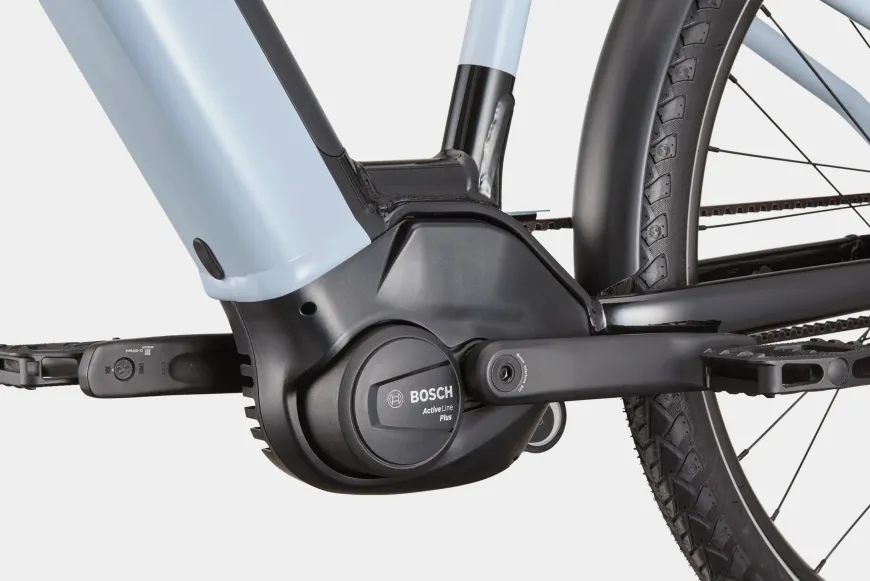

• Drive Unit: Bosch Active Line Plus, Smart System, 20mph
• Battery: Bosch PowerTube, 500Wh (Removable)
• Display: Bosch Purion 200
• Charger: Bosch 4A
• Certification: UL 2849

Frameset

• Frame: SmartForm C2 Alloy, low step-thru, integrated headtube reflector, internal cable routing, motor protection
• Fork: SR Suntour Mobie A32, 63mm travel, coil with preload adjuster, lockout
• Headset: Semi-Integrated, Tapered (1-1/8″ – 1-1/2″)

Drivetrain

• Drivetrain Type: Gates Carbon Belt Drive (Clean, quiet, and oil-free)
• Rear Hub: Shimano Nexus 7-speed internal gear hub
• Shifters: Shimano Nexus, 7-speed, twist style
• Crank: FSA for Bosch
• Rear Cogs: Gates CDC 26T
• Chain: Gates CDX Carbon Belt

Brakes

• Brakes: Riderever Attack-U-OE, 2-piston hydraulic disc, 180/180mm rotors
• Brake Levers: Riderever Attack-U-OE, hydraulic disc

Wheels

• Rims: Alloy, double wall, 32 hole, 25mm internal width
• Hubs: (F) Shimano MT400B, 110x15mm thru-axle / (R) Shimano Nexus 7 Internal Gear
• Tires: Continental eContact Plus w/ reflective sidewalls
• Wheel Size: 27.5″ (SM) / 29″ (MD-XL)

Components

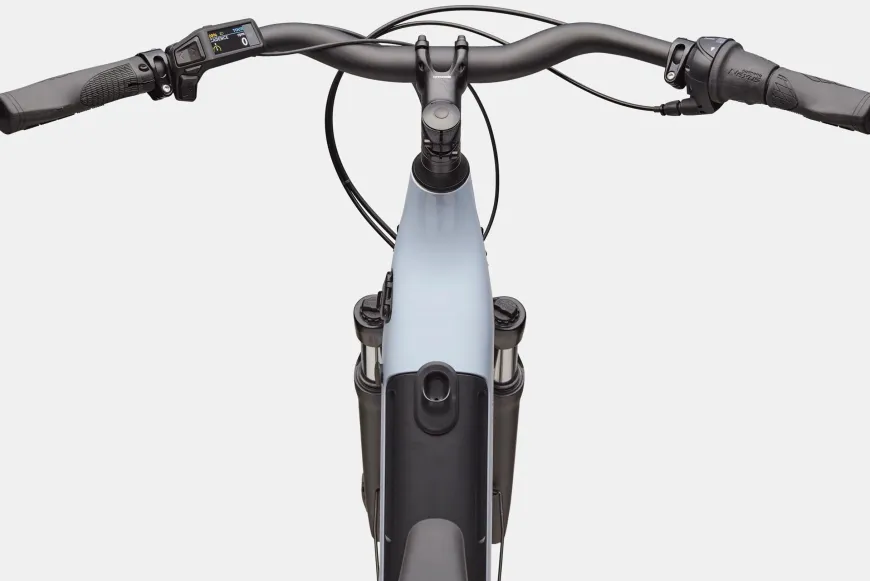

• Handlebar: Cannondale Low-Rise Urban, 6061 Alloy, 31.8mm, 35° sweep
• Stem: Cannondale 3, Alloy, 31.8mm
• Grips: Cannondale Ergo Fitness Dual Density, Lock-on
• Saddle: Fizik Essenza Moderate M
• Seatpost: Cannondale 3, 6061 Alloy, 31.6mm

Details & Included Extras

• Model Name: Mavaro 3 Low StepThru (C68353U)
• Lighting: Axa Compactline 35E (front), Axa Blueline (rear)
• Rack & Fenders: Tubus rear rack (25kg, Racktime SnapIt compatible), full-coverage fenders
