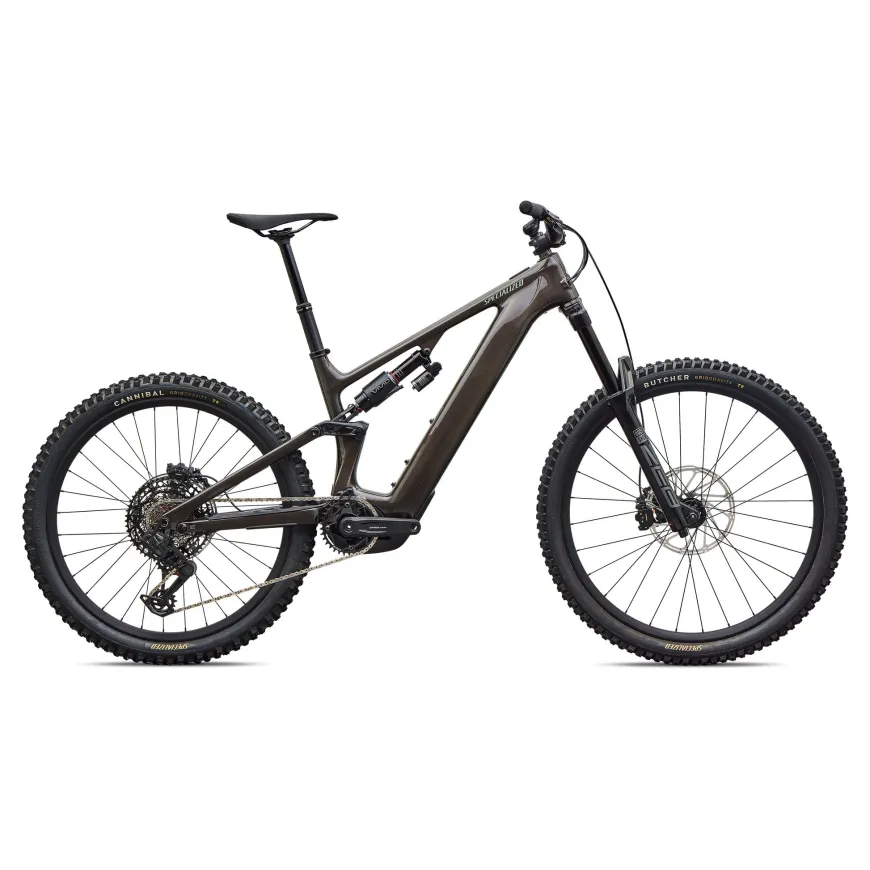

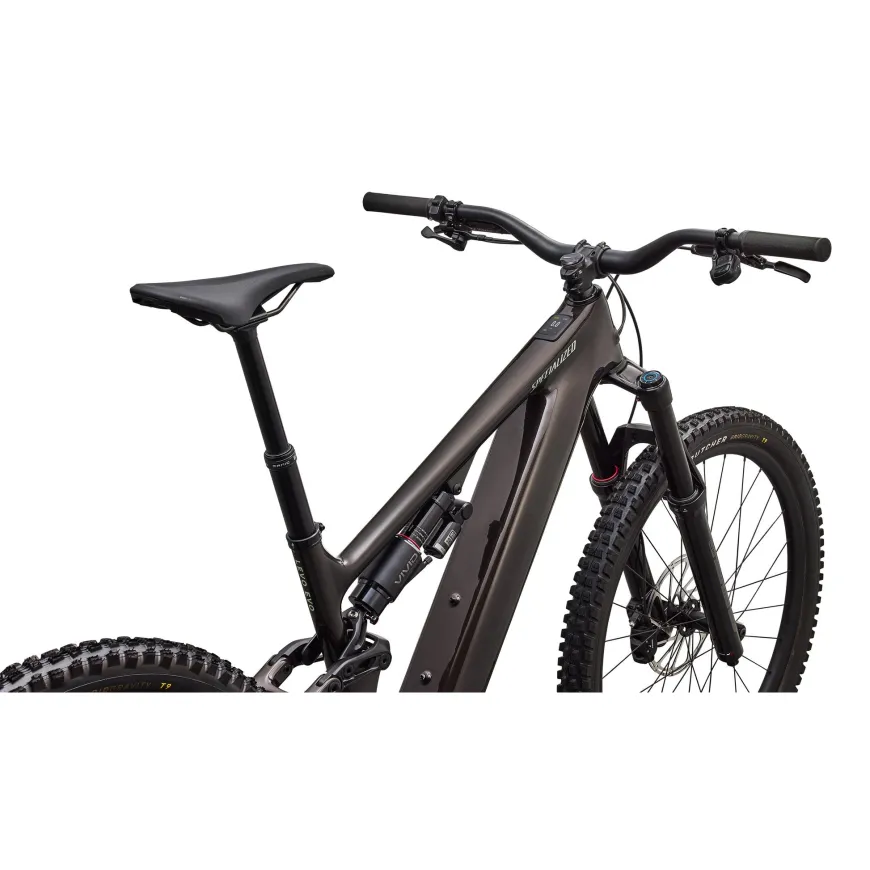

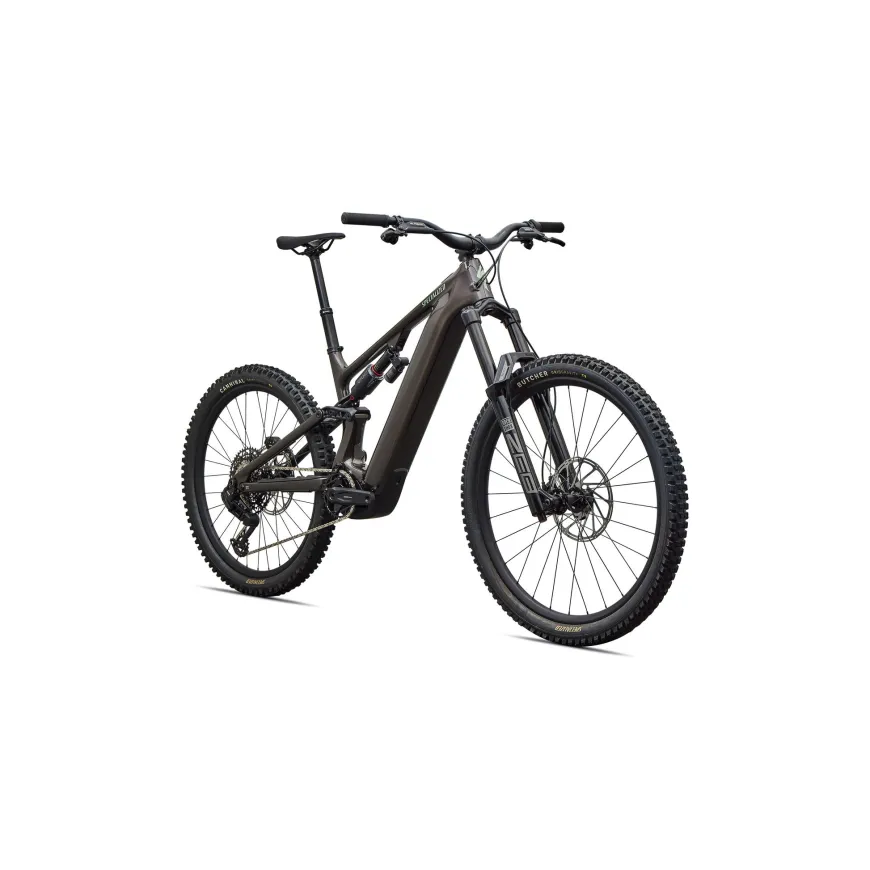

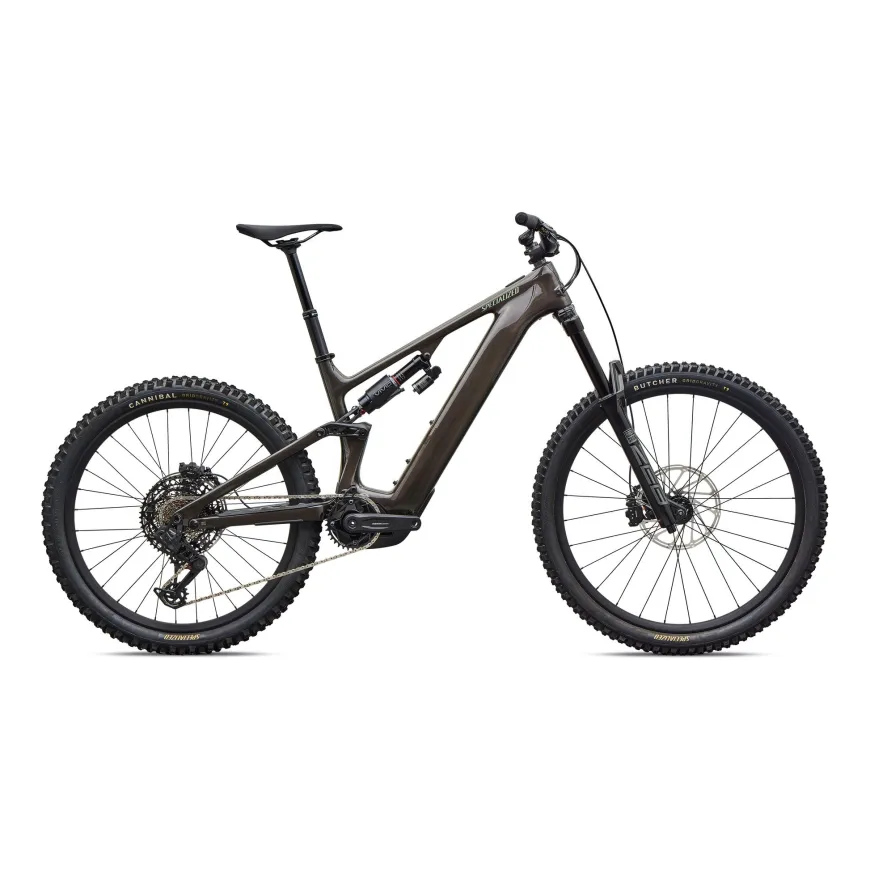

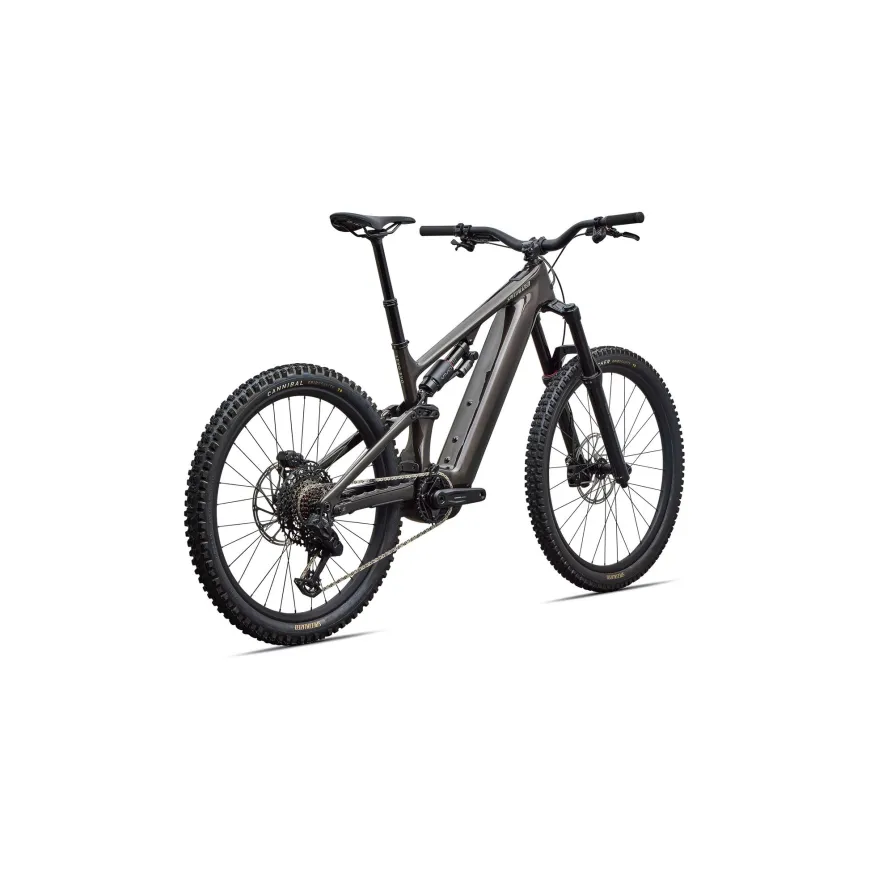

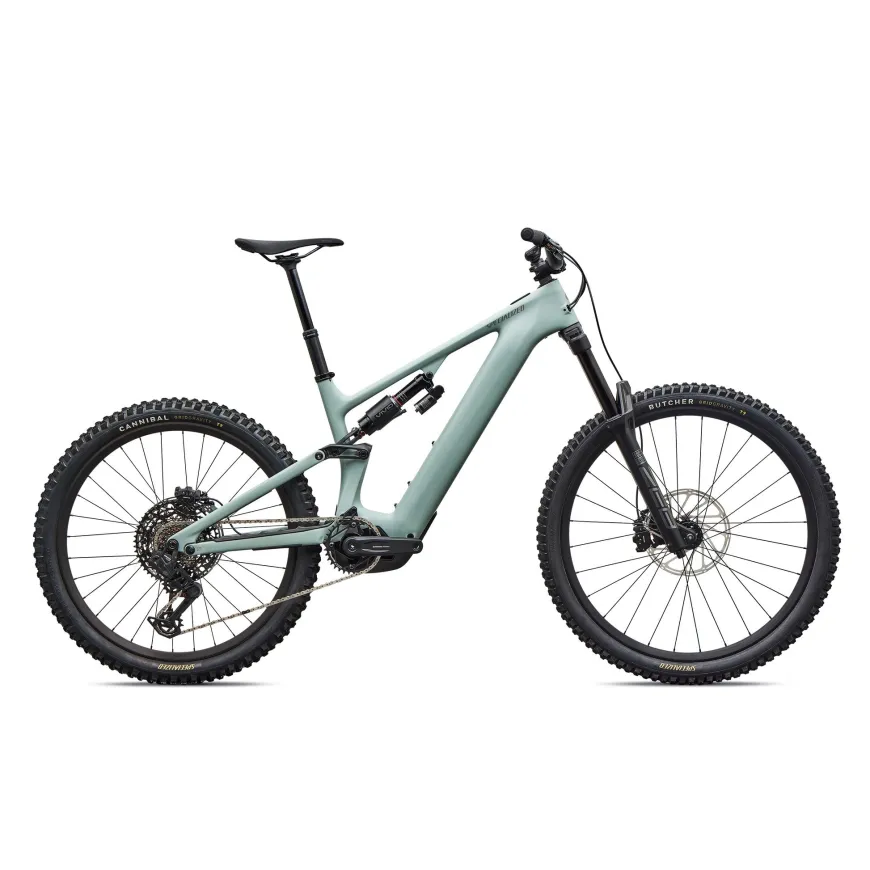

Levo 4 EVO Comp

SuperNatural Power, Capability, and Range

Levo 4 EVO is built for riders who don’t tiptoe around terrain. The riders who point into the steep stuff, ride bike parks without a chairlift, and want a bike that stays calm when things get fast, rough, and consequential. This is Electric Enduro.

FEATURES

• Use – Electric Enduro
• E-System – Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range w/ optional Range Extender
• Frame – Levo EVO FACT 11m carbon frame, Geo Adj & SWAT Storage
• Suspension – Fork: 180mm RockShox Zeb Select
  Shock: Vivid Select Air Linear
• Drivetrain – SRAM S1000 Eagle AXS
• Wheels – Sp[ecialized Alloy Wheels

E-Bike System

• Motor: Specialized 3.1 Motor, 105Nm torque, 810W power
• Battery: 840Wh battery

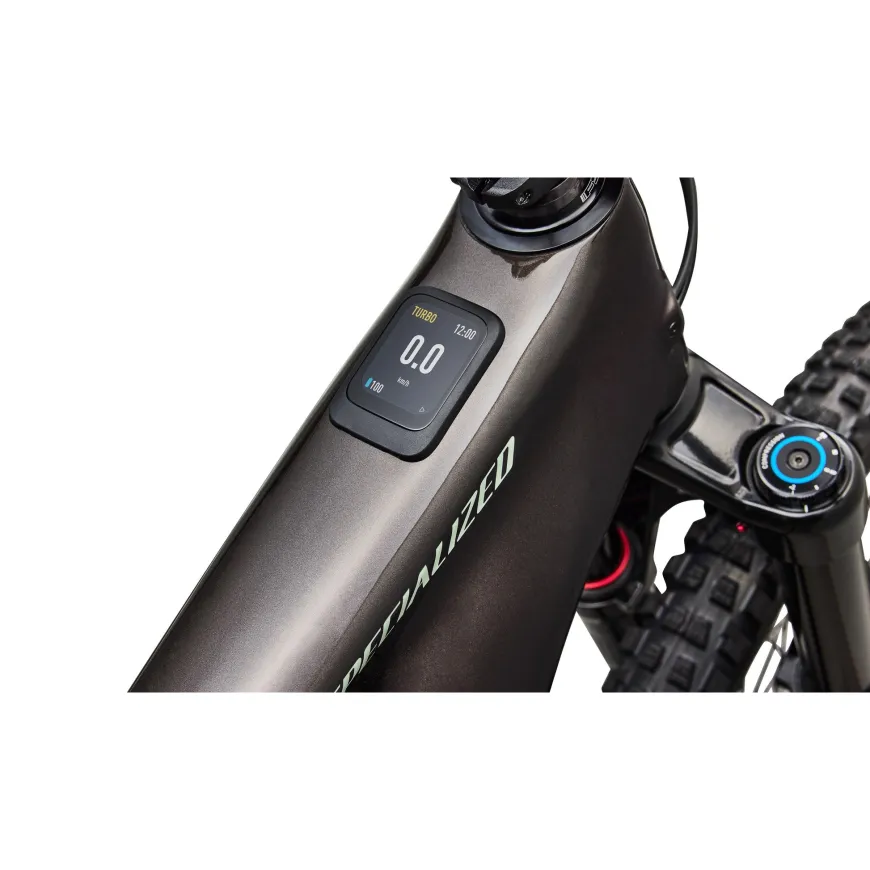

• UI/Remote: Mastermind TCU, 2.2″ high resolution screen, Specialized app customizable, Apple Find My compatible
• Charger: Specialized 4amp charger

Frameset & Suspension

• Frame: Levo Evo FACT 11m carbon, 170mm travel, 12x148mm dropouts, SRAM UDH compatible, mixed wheel (29″/27.5″), adjustable head tube angle and chainstay length, integrated SWAT storage
• Fork: SRAM FS ZEB Select, 180mm travel, 29″, Linear XL spring, Delta RC damper, rebound adjust

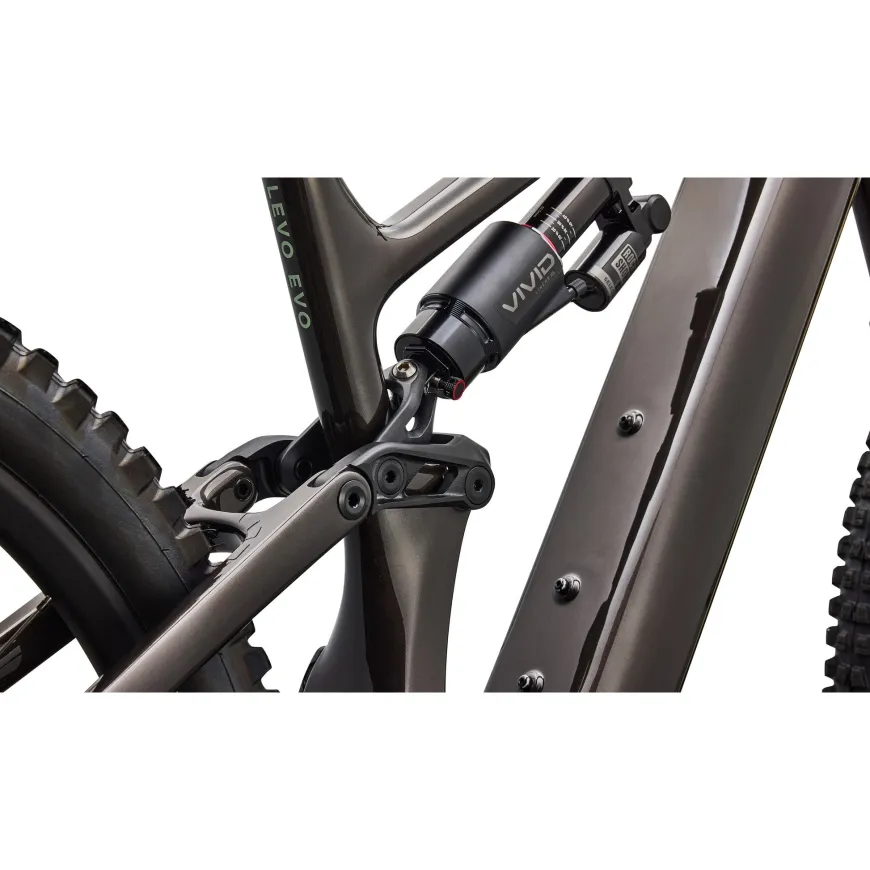

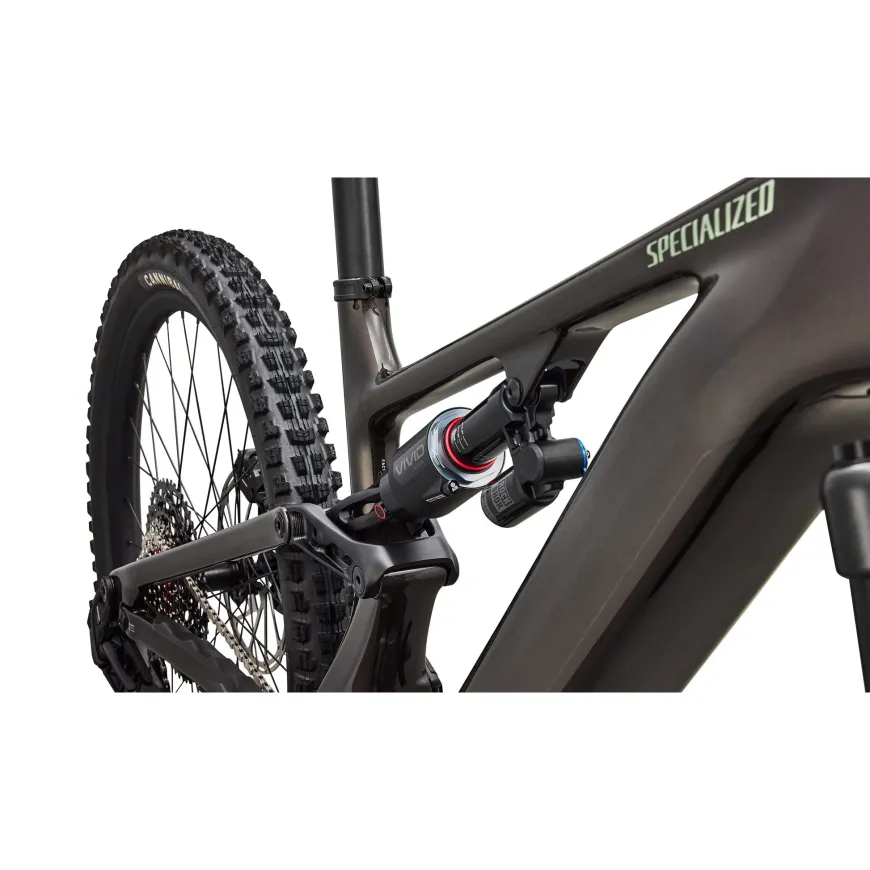

• Rear Shock: Vivid Select air, 230×62.5mm, Linear XL spring, RT damper w/ climb switch, rebound adjust
• Seat Binder: Alloy, 38.6mm

Drivetrain & Brakes

• Rear Derailleur: SRAM S1000 Eagle AXS
• Shift Levers: SRAM AXS Pod Controller w/ discrete clamp
• Cassette: SRAM 12-speed, 10-52t
• Chain: SRAM GX Eagle Transmission 12-Speed Flattop

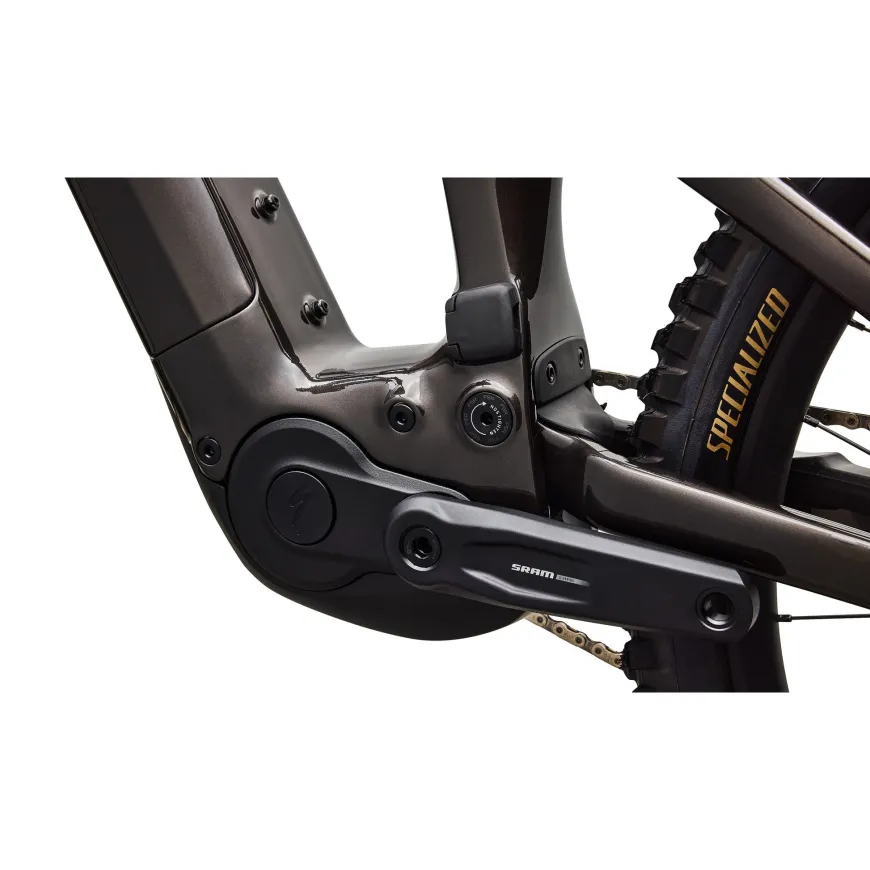

• Crankset: SRAM S1000 Alloy crank, ISIS interface, 155mm length
• Chainrings: SRAM 34t T-Type, 104 BCD, steel
• Brakes: SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotors [Front and Rear]

Wheels & Tires

• Rims: Specialized Alloy Rims
• Front Hub: Specialized alloy, sealed cartridge bearings, 6-bolt, 15x110mm, 28h
• Rear Hub: Specialized alloy, sealed cartridge bearings, 6-bolt, 12x148mm, 32h, HG Steel Fhb
• Spokes: DT Swiss Elemental
• Front Tire: Butcher, GRID Gravity, T9, TLR, 29×2.4″
• Rear Tire: Cannibal GRID Gravity, T9, TLR Downhill Tire, 27.5×2.4″
• Inner Tubes: Standard, Presta Valve

Cockpit

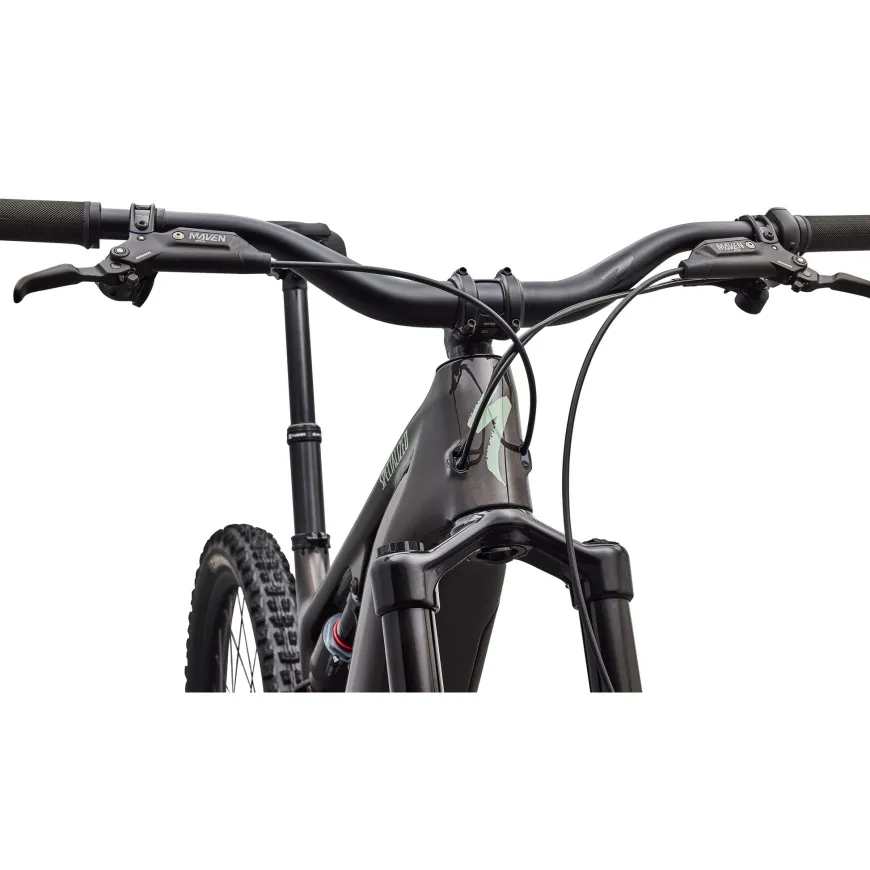

• Handlebars: Alloy, 35mm diameter, 8° back sweep, 6° up sweep (S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise)
• Stem: Alloy Trail Stem, 35mm bar bore
• Grips: Specialized Trail Grips
• Saddle: Bridge Comp, Hollow Cr-mo rails, 155/143mm
• SeatPost: Xfusion Manic, infinite adjustable, Remote SLR LE lever, 34.9mm (S2: 125mm, S3: 170mm, S4-S6: 190mm)

Product Details

• Weight: 25.16 kg (55 lb, 7.5 oz) – Measured in size S4
• Accessories: SWAT Internal downtube storage
• Product ID: 294787
• Compliance: Certified to UL 2849 (e-system) and/or UL 2271 (battery)
