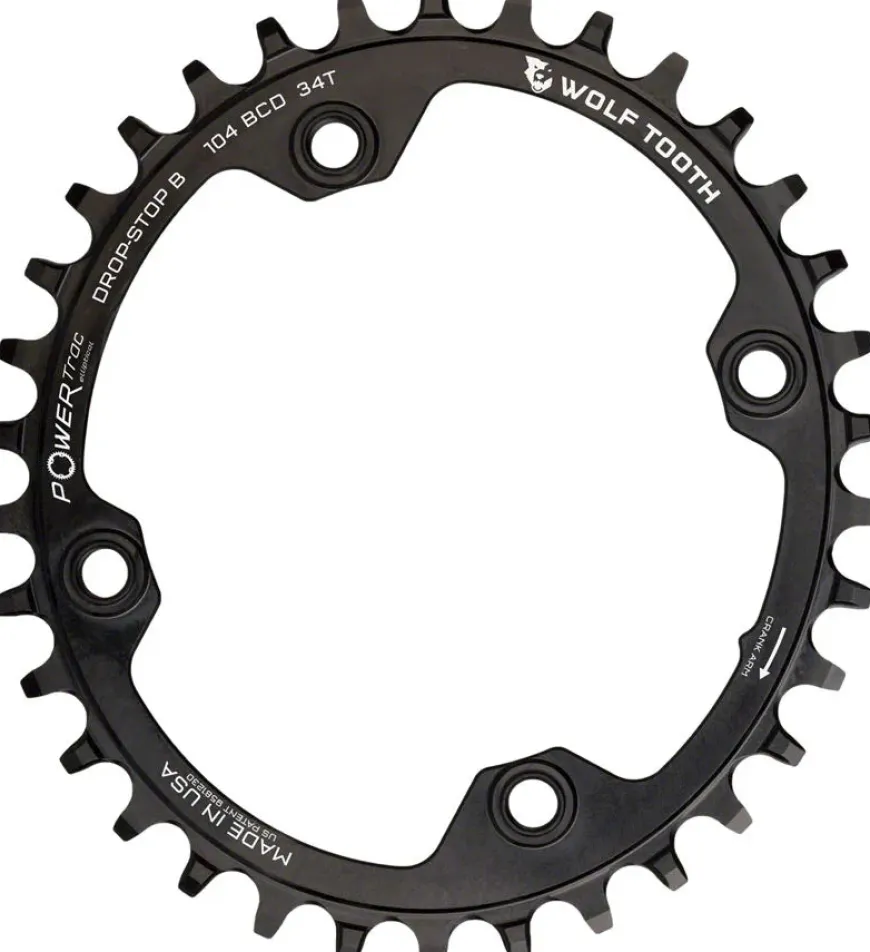

Wolf Tooth Elliptical 104 BCD Chainring – 34t 104 BCD 4-Bolt Drop-Stop B BLK

Wolf Tooth Elliptical 104 BCD Chainring – 34t 104 BCD 4-Bolt Drop-Stop B Black. Designed for 104 BCD Mountain Cranksets. The proprietary design has an ovality of 10% and a timing of 112 degrees after top dead center which provide the benefits of an oval ring without the traditional downsides of oval rings. This chainring features the patent pending asymmetrical Drop-Stop tooth design for the best in wear life mud clearance and chain retention.

The simplest way to explain the way these rings feel is having 2 teeth less in the weak part of your pedal stroke and 2 teeth more where you have the most power

Drop-Stop chainrings are designed for use with 1×9 1×10 1×11 and 1×12 drivetrains

Compatible with all 10- 11- and 12-speed chains with the exception of Shimano 12-speed chains

Shimano 12-speed chains require the use of Wolf Tooths Shimano 12-speed specific chainrings

If using a 9-speed drivetrain use a 10-speed chain which will provide a tighter fit for better chain retention

Made from 7075-T6 aluminum for long life

These rings are threaded use with 10mm chainring bolts

48mm – 50mm chainline depending on the crankset

• TECH SPECS
