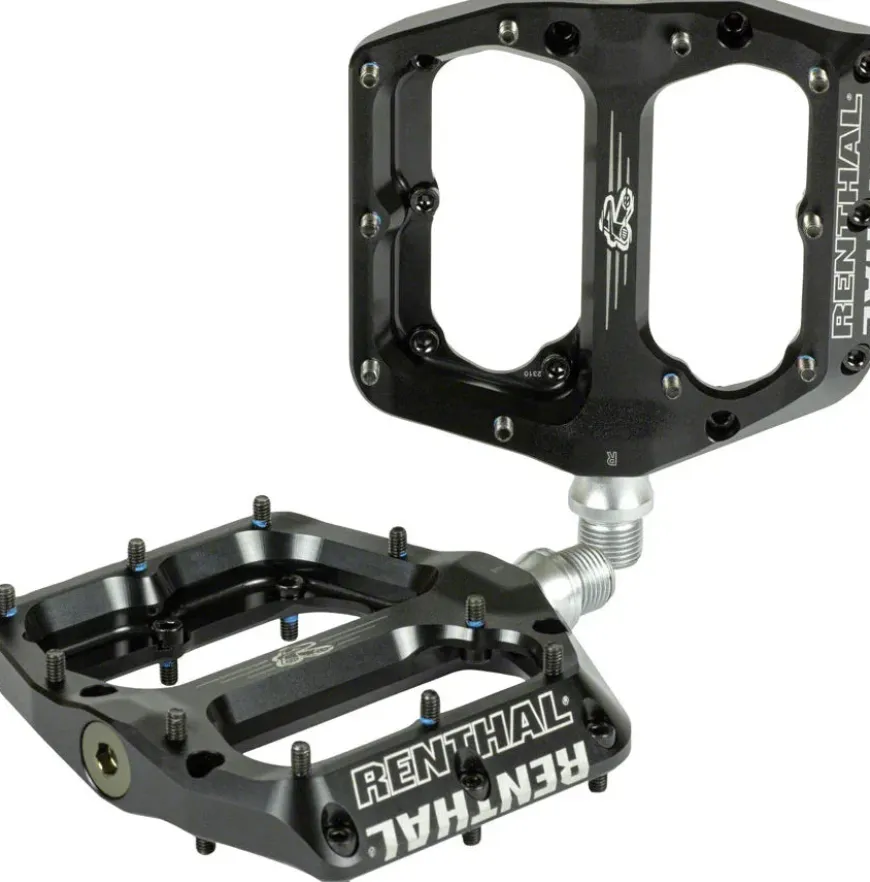

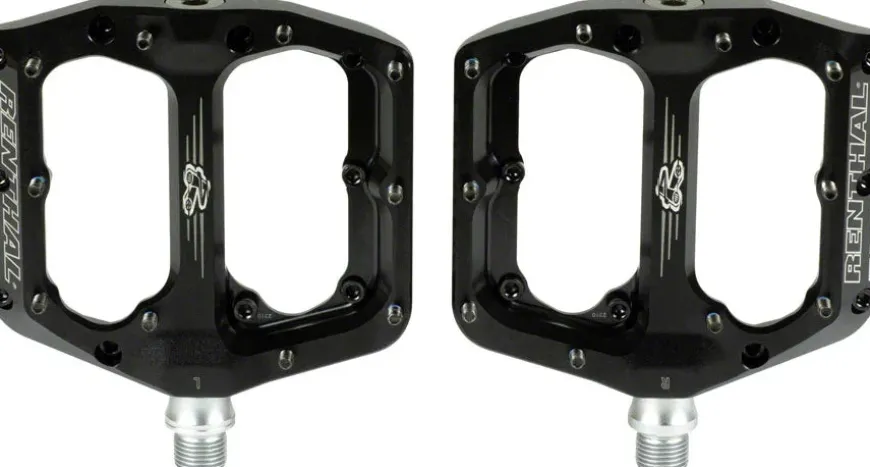

Renthal Revo-F Platform Bike Pedals

With Ride-Tuned external features and patent pending internals, the Revo-F is the new flat pedal of choice.

Featuring a two-axis concave pedal body, fully useable pedal platform and a pin system for fine tuning grip levels, the Revo-F offers unrivalled on-trail performance. The Revo-F spins on an extra wide Igus bush and three cartridge bearings, with the internals fully sealed from the elements. Patent pending internals allow easy home maintenance, using standard tools. The Renthal Revo-F is packed with unique features to deliver the ultimate Ride-Tuned on trail performance, tuneable grip levels, ease of maintenance and bomb-proof durability.

FEATURES

• Forged and CNC machined 6061 aluminum pedal body with concave platform. L-100mm x W-104mm
• Ten pins per side, with adjustable pin length. 2.5mm to 5.5mm in 1mm increments
• Three outboard cartridge bearings and extra wide inboard IGUS bushings
• Fully sealed – Inboard full contact lip-seal. Outer O-ring seal
• Home serviceable, with Renthal patent pending axle system
• High grade chromoly axle

SPECIFICATIONS

• Pedal Body Material:Aluminum
• Pedal Type:Platform
• Pedal Spindle:9/16″
• Spindle Material:Chromoly
• Defined Color:Black
