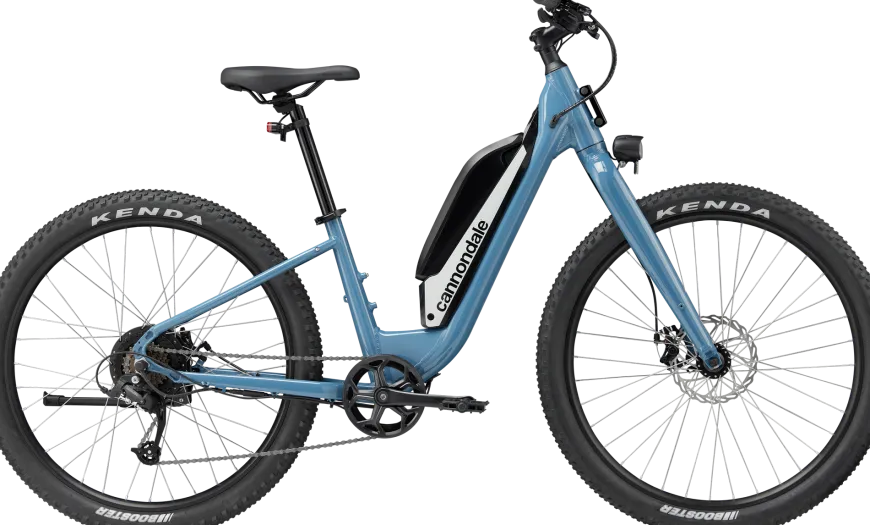

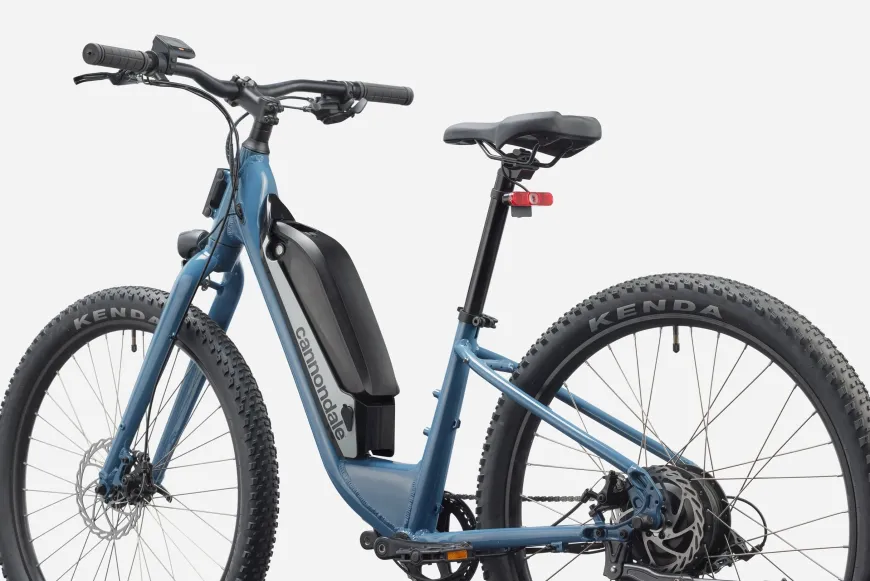

Adventure Neo Allroad Low StepThru

Details

• Platform: Adventure Neo Allroad
• Model Name: Adventure Neo Allroad Low StepThru
• Model Code: C68514U

E-System

• Drive Unit: Bafang G020 Hub, 250W (Class 2, 20 mph).
• Battery: HWT 36V, 418Wh (Taiwan-made).
• Display: Bafang C11, LCD.
• Charger: HWT 2A.
• Sensor: Bafang SR PA14.32.S.

Frameset

• Frame: SmartForm C3 Alloy, low step-thru, removable downtube battery, semi-internal cable routing, waterbottle and headtube rack mounts.
• Fork: SmartForm C3 Alloy blades, $1ext{-}1/8″$ steerer, mid-blade rack/fender mounts, crown accessory mount, 50mm offset.
• Headset: Semi-Integrated, $1ext{-}1/8″$ with reducer.

Drivetrain

• Rear Derailleur: microSHIFT RD-M21L.
• Shifters: microSHIFT TS38-7 Thumb Tap, 7-speed.
• Crank: Prowheel, 38T.
• Rear Cogs: microSHIFT, 14-34, 7-speed.
• Chain: KMC Z7, 7-speed.

Brakes

• Brakes: Tektro mechanical disc.
• Rotors: 180/180mm.
• Brake Levers: 3-finger alloy.

Wheels & Tires

• Rims: Alloy, double wall, 36h, disc-specific.
• Tires: Kenda Booster, $27.5 imes 2.6″$.
• Hubs: (F) Sealed alloy disc, 100mm QR / (R) Bafang G020 hub motor.
• Spokes: Stainless steel, 13g.

Components

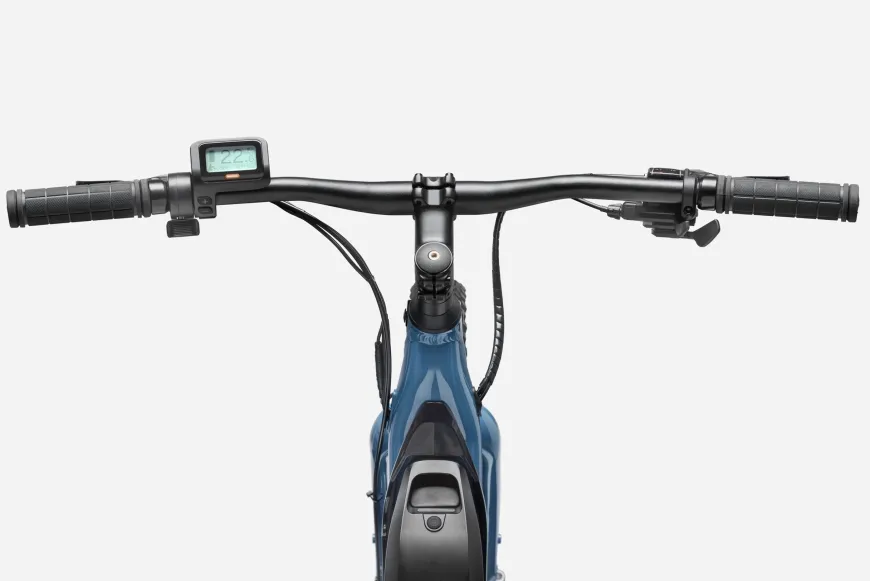

• Handlebar: Cannondale Riser, 6061 Alloy, 25mm rise, 740mm width.
• Stem: Cannondale Alloy, $31.8ext{mm}$, $7^circ$.

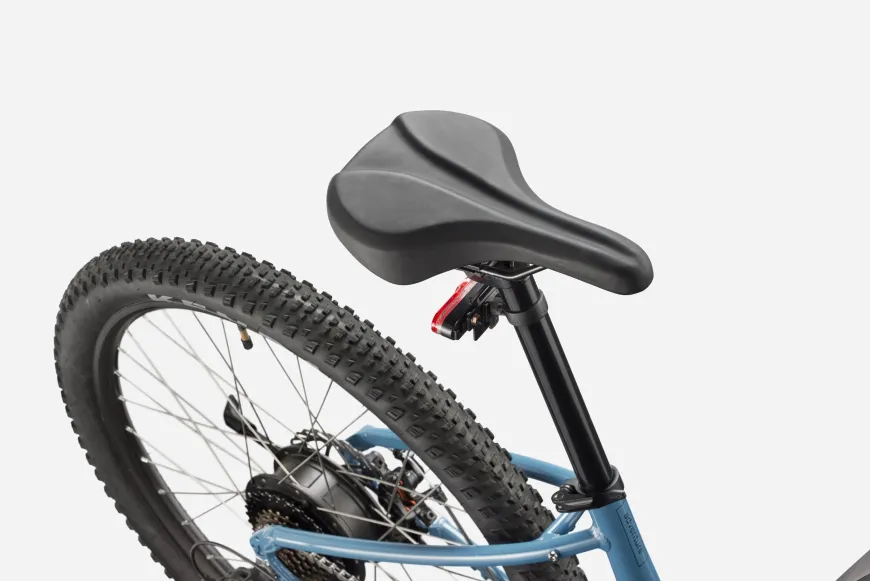

• Saddle: Cannondale Allroad Comfort.
• Seatpost: 6061 Alloy, $30.9 imes 350ext{mm}$.
• Grips: Cannondale Comfort.

Extras

• Included: Thumb-throttle, front and rear lights, kickstand.
